Seat Belt Control Ecu: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See REMOVAL )
  3. REMOVE TOOL BOX (See REMOVAL )
  4. REMOVE REAR FLOOR FINISH PLATE (See REMOVAL )
  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See REMOVAL )
  6. REMOVE LUGGAGE COMPARTMENT TRIM SIDE COVER INNER LH (See REMOVAL )
  7. REMOVE SEAT BELT CONTROL ECU
    1. Remove the 3 nuts and disconnect ECU.

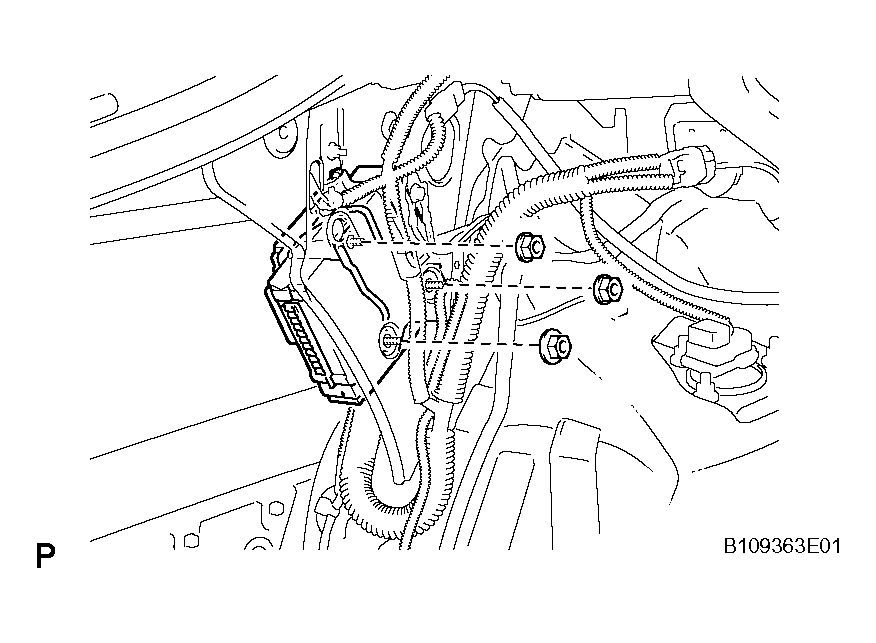

      Fig 1: Identifying 3 Nuts
      G04021392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Remove the nut.
    4. Detach the claw and remove the ECU.

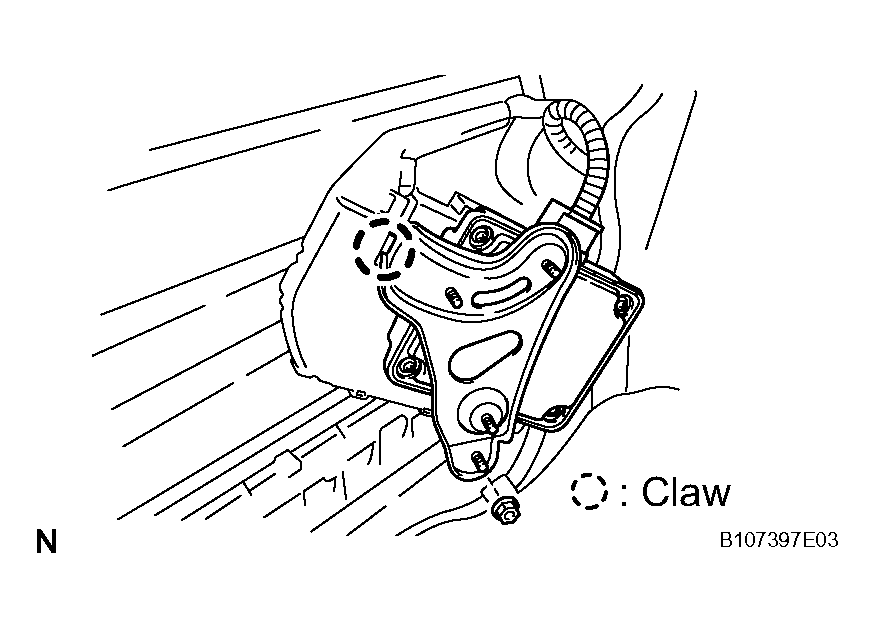

      Fig 2: Identifying ECU
      G04021393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
