Rear Seat Inner Belt Assembly: Installation

  1. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    NOTE: Do not disassemble the retractor.
    1. Align the seat belt positioning hole with the claw and install the retractor of the seat belt with the bolt as shown in the illustration.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

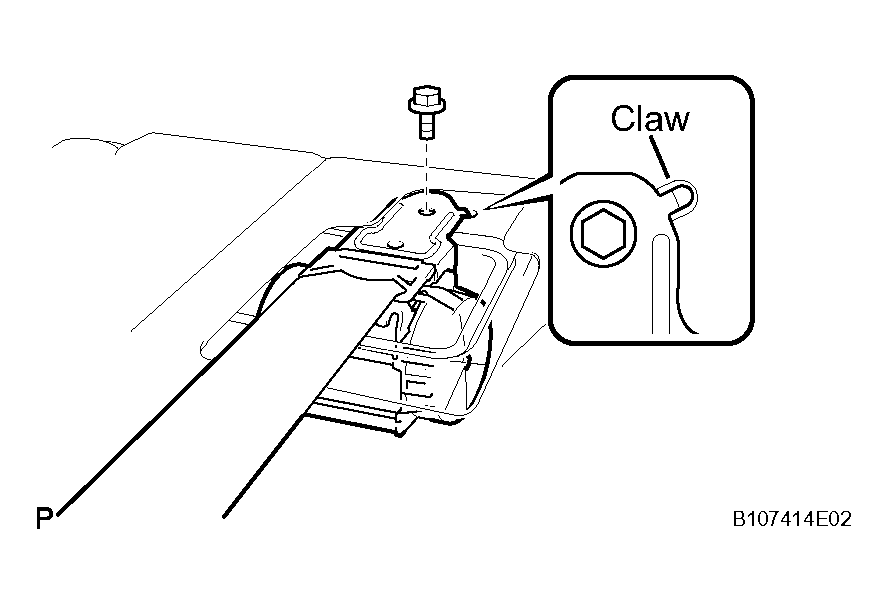

      Fig 1: Identifying Retractor Of Seat Belt With Bolt
      G04021347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Sunshade)
    1. Attach the clip and install the package tray trim panel.
    2. Attach the 4 claws and install the belt guide center.

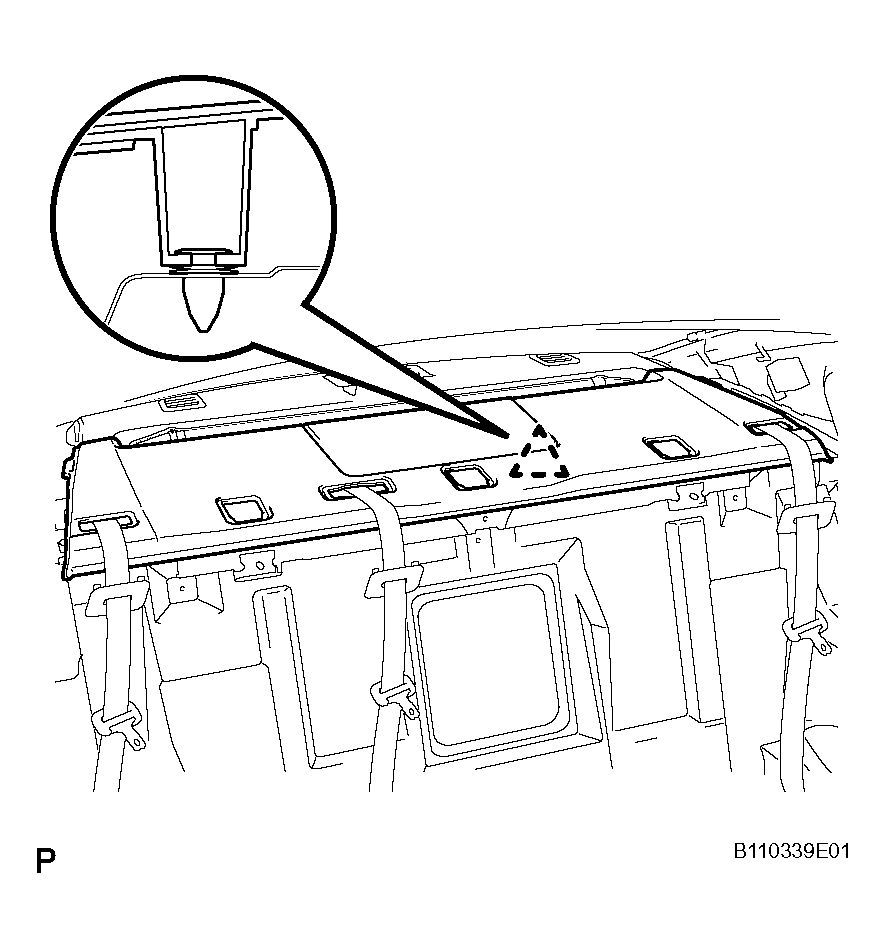

      Fig 2: Identifying Belt Guide Center
      G04021348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 4 claws and install the belt guide.

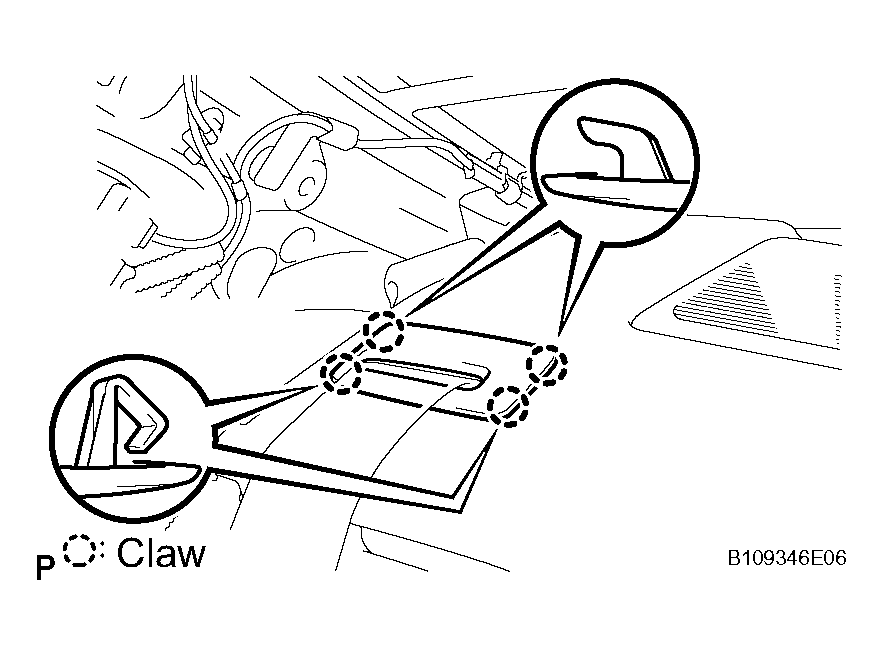

      Fig 3: Attaching Claws
      G04021349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the 4 claws and install the belt guide.

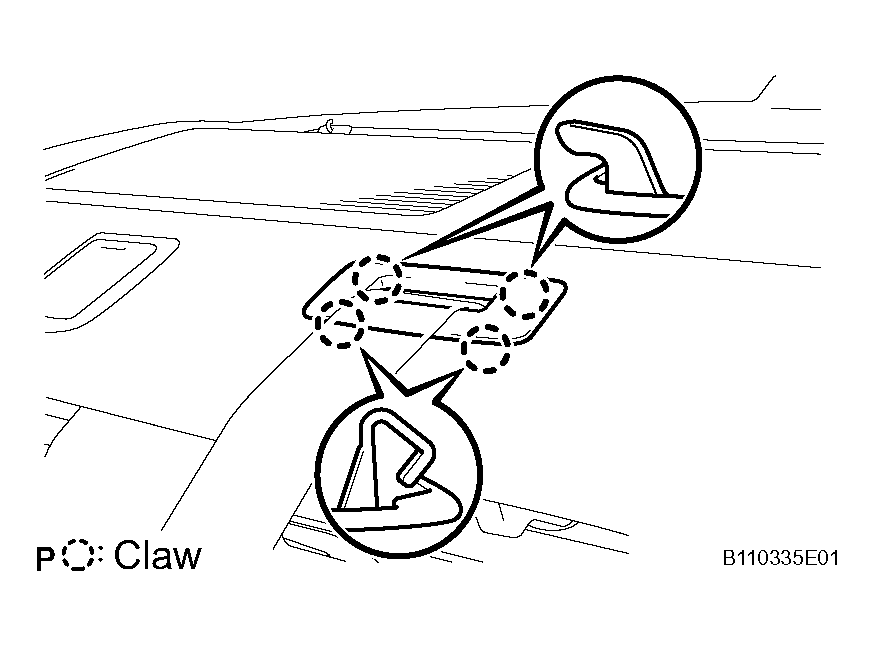

      Fig 4: Identifying Belt Guide
      G04021350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
    1. Install the package tray trim panel.
      1. Connect the connector.
      2. Attach the 5 claws and clip, and install the panel.

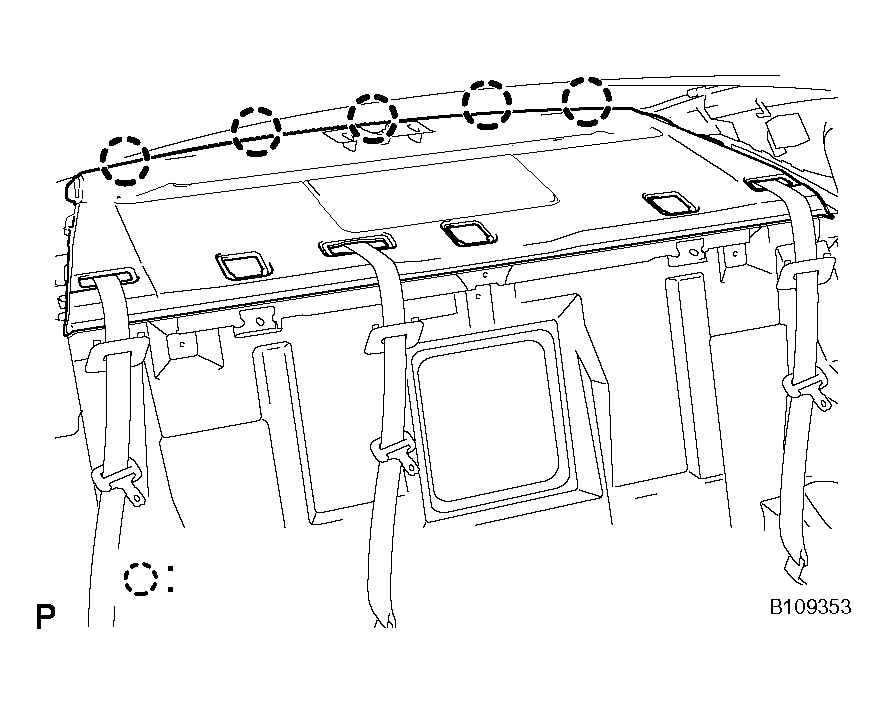

        Fig 5: Attaching 5 Claws And Clip
        G04021351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL ROOF SIDE GARNISH INNER (See  INSTALLATION  )
  5. INSTALL REAR SEAT SIDE GARNISH (See  INSTALLATION  )
  6. INSTALL REAR DOOR SCUFF PLATE (See  INSTALLATION  )
  7. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH
    1. Install the seat belt with the bolt as shown in the illustration.
    2. Connect the connector labeled A.
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

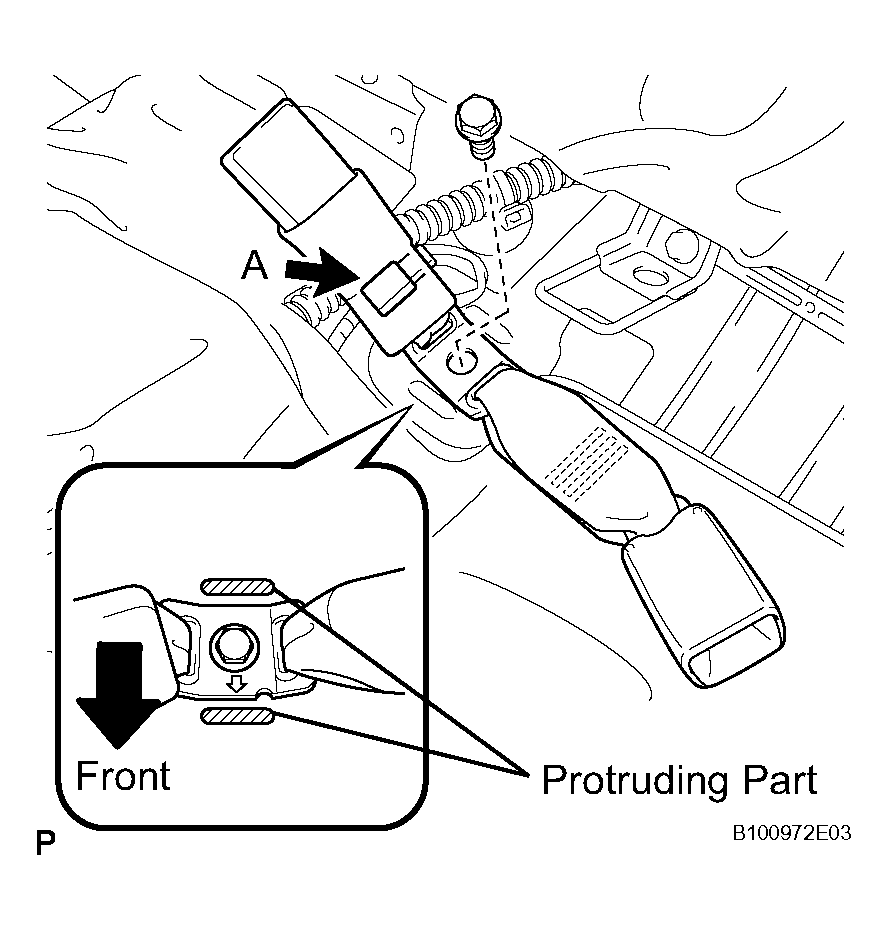

      Fig 6: Identifying Seat Belt With Bolt
      G04021352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
    1. Install the anchor part of the rear seat inner with center belt assembly RH seat belt with the bolt as shown in the illustration.
    2. Connect the connector labeled A.
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

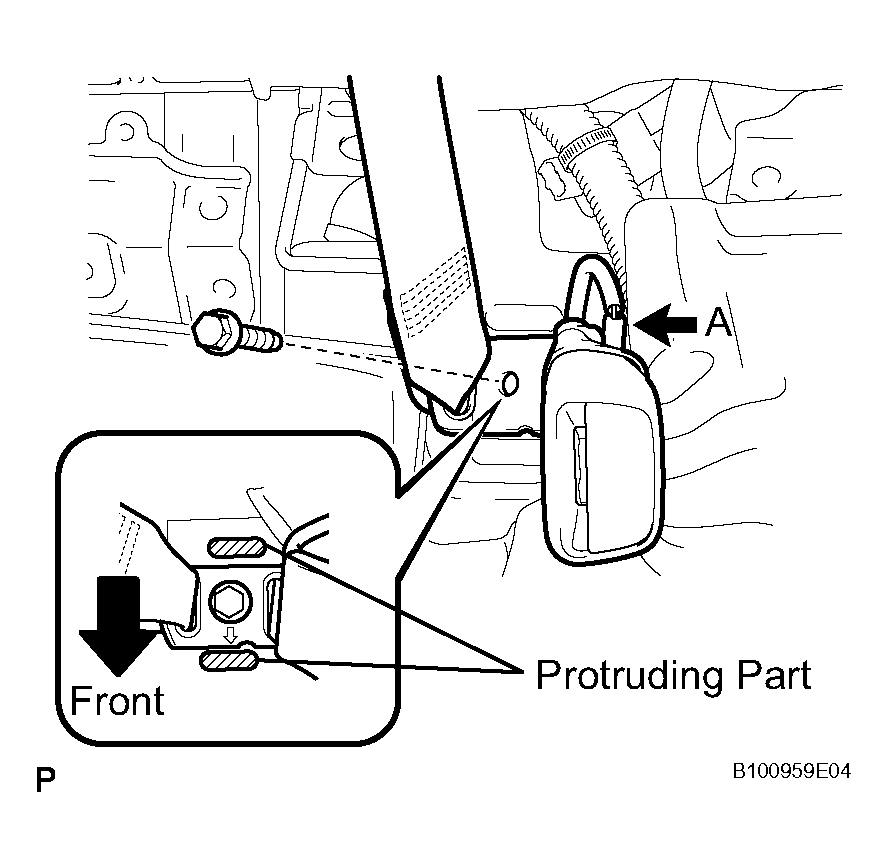

      Fig 7: Identifying Anchor Part Of Rear Seat Inner With Center Belt Assembly Rh Seat Belt With Bolt
      G04021353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEAT BELT OUTER ANCHOR
    1. Install the anchor part of the rear seat outer belt assembly with the bolt.
      NOTE: Do not overlap the anchor part of the seat belt and protruding parts of the vehicle body.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

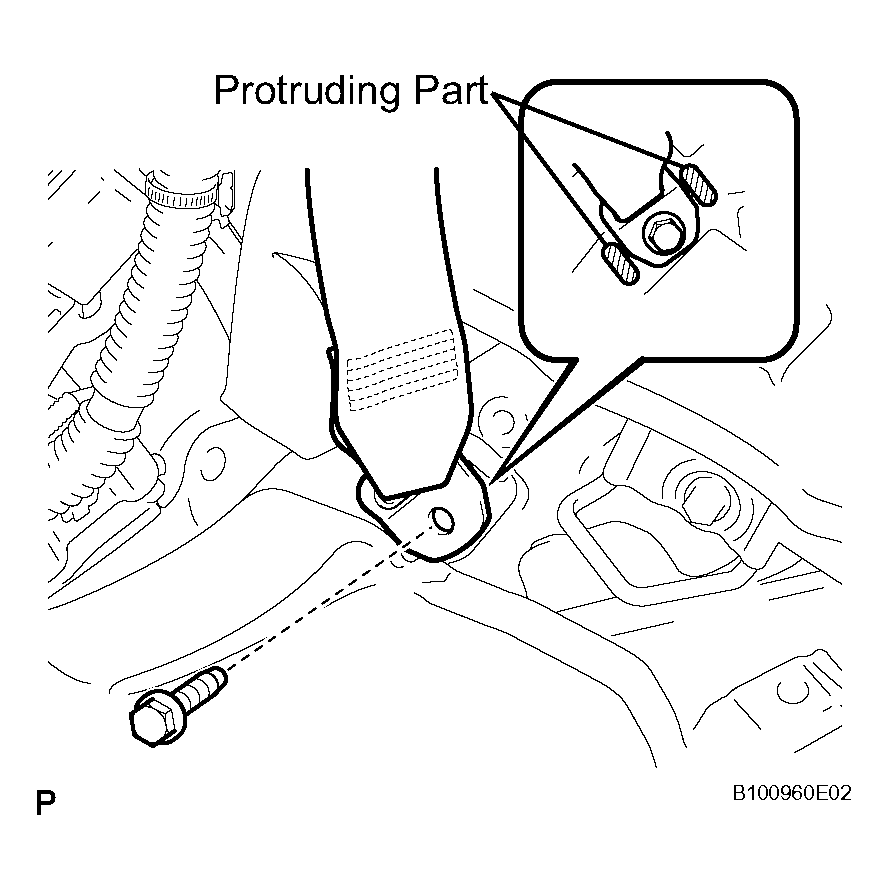

      Fig 8: Identifying Anchor Part Of Rear Seat Outer Belt Assembly With Bolt
      G04021354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  11. INSTALL REAR SEAT HEADREST ASSEMBLY RH AND LH
    1. Install the 2 headrests.
  12. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  14. PERFORM INITIALIZATION
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
    1. Perform initialization (see INITIALIZATION ).
