On-Vehicle Inspection

CHECK INTAKE AIR SURGE TANK (INTAKE AIR CONTROL VALVE)
1. Remove the 2 nuts and V-bank cover.
2. Inspection procedure when using the intelligent tester.
  1. Stop the engine.
  2. Connect the intelligent tester to the DLC3.
  3. Start the engine and turn the intelligent tester main switch ON.
  4. Select the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / INTAKE CTL VSV1. Press the right or left button.
  5. Make sure that a clicking sound is heard from the intake air control valve when current flows.

    Fig 1: Connecting Intelligent Tester To DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Inspection procedure when applying voltage between terminals.
  1. Disconnect the connector from the intake air control valve.
  2. Apply battery voltage between terminals 1 (-) and 2 (+) of the intake air control valve. Check that a clicking sound is heard from the intake air control valve.

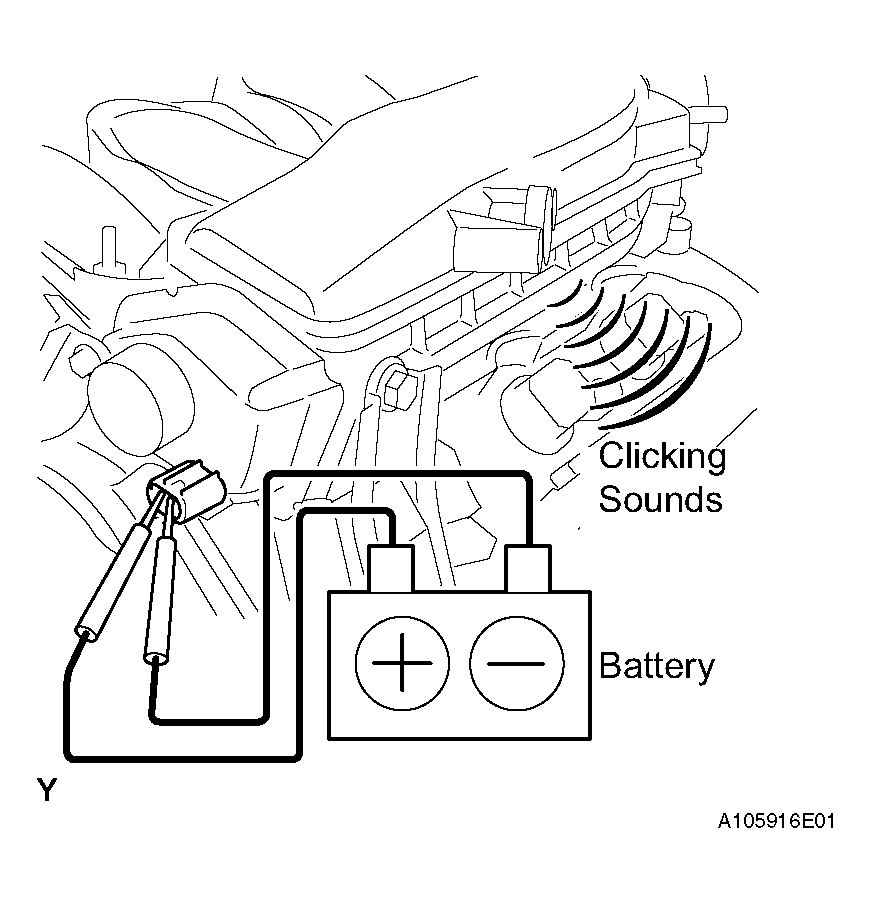

    Fig 2: Identifying Clicking Sound From Intake Air Control Valve
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reinstall the V-bank cover with the 2 nuts.
CHECK INTAKE MANIFOLD (SWIRL CONTROL VALVE)
1. Remove the 2 nuts and V-bank cover.
2. Check that the link is moving to confirm that the swirl control valve is operating.

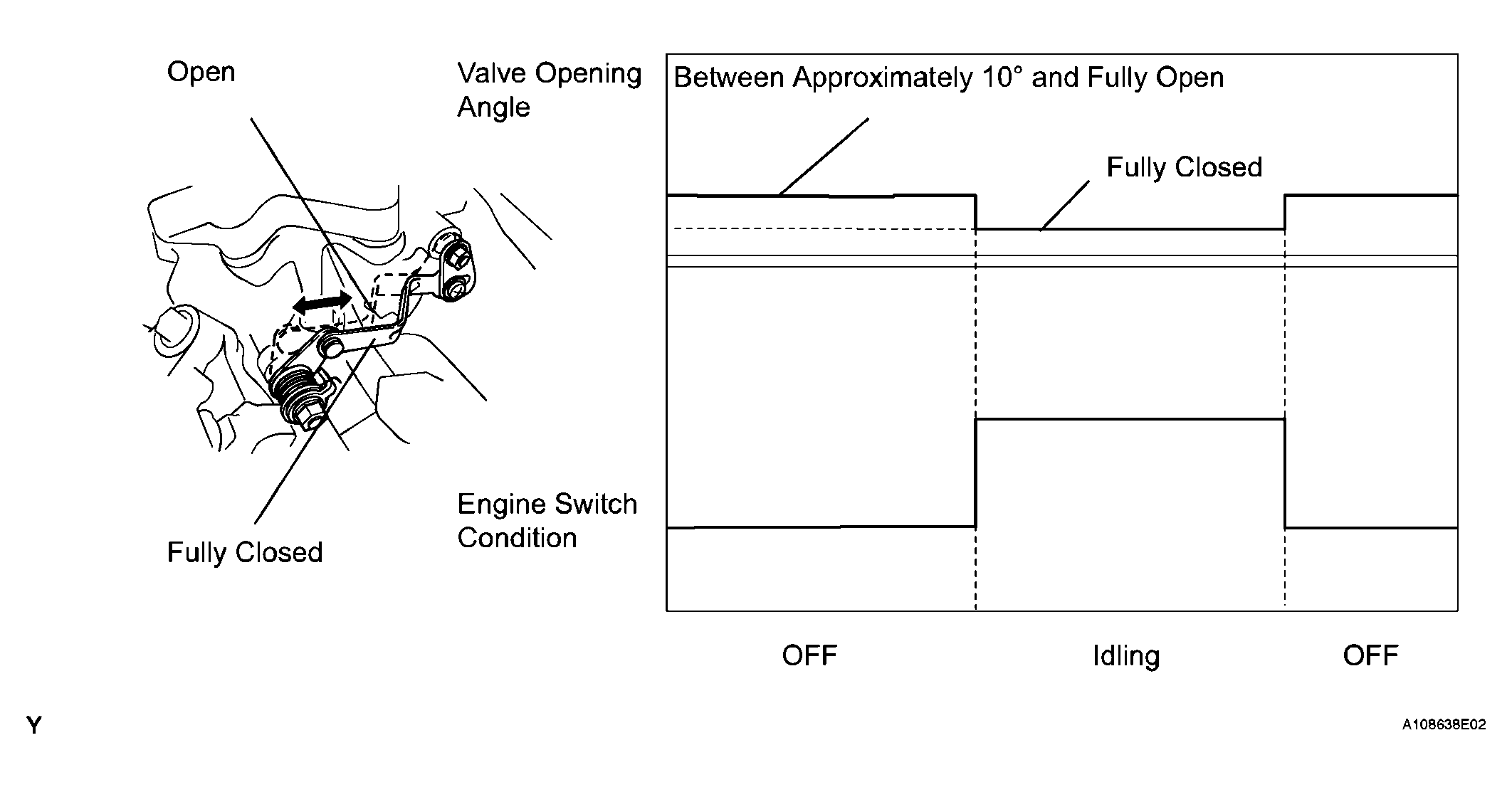

  Fig 3: Checking Operation Of Swirl Control Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. After the engine switch is turned off, confirm that the swirl control valve opens between approximately 10° and the fully open position.
  2. After the engine is started and is idling, confirm that the swirl control valve is fully closed.
  3. After the engine switch is turned off again, confirm that the swirl control valve opens between approximately 10° and the fully open position.
3. Inspection procedure when using the intelligent tester.
  1. Connect the intelligent tester to the DLC3.
  2. Start the engine and turn the intelligent tester main switch ON.

    Fig 4: Connecting Intelligent Tester To DLC3
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Select the following menus: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / SCV DUTY RATIO. Press the right or left button.
    NOTE: This test procedure must be completed within 10 seconds.
  4. Check that the swirl control valve activation link (on the front of the intake manifold) moves to the left and right.

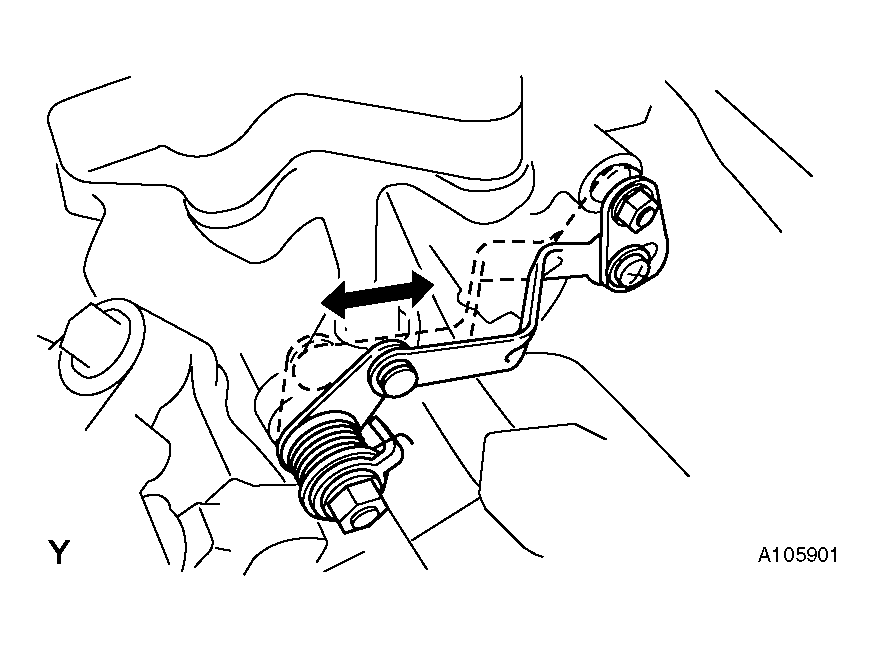

    Fig 5: Checking Swirl Control Valve Activation Link Moves Left And Right
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Inspection procedure when applying voltage between terminals.
  1. Disconnect the connector from the swirl control valve.
  2. Check that the swirl control valve activation link (on the front of the intake manifold) moves to the left and right.

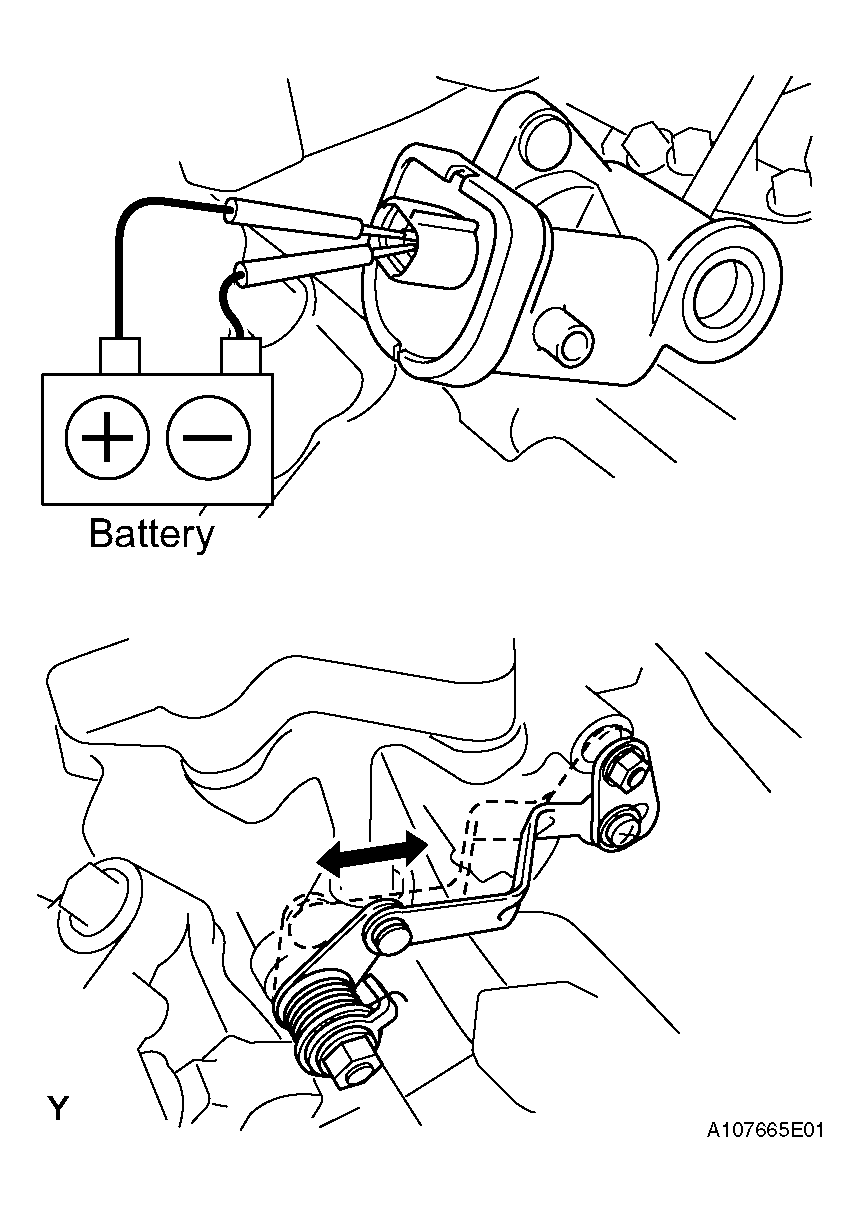

    Fig 6: Applying Battery Voltage To Terminals Of Swirl Control Valve
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Measure the resistance between the terminals.
  Standard resistance: 1 to 19 Ω at 20°C (68°F)

  If the result is not as specified, replace the intake manifold.

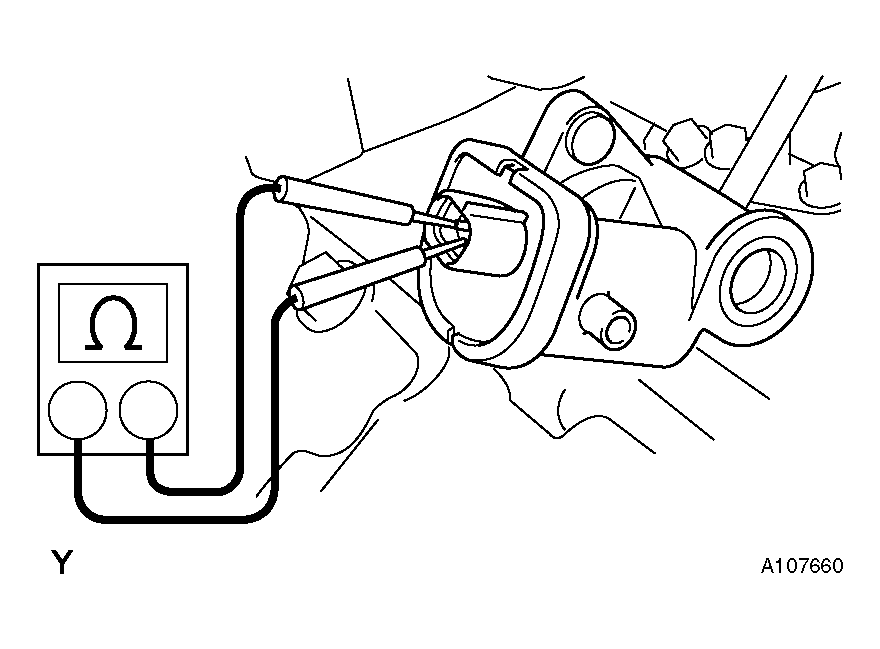

  Fig 7: Measuring Resistance Between Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
