System Diagram

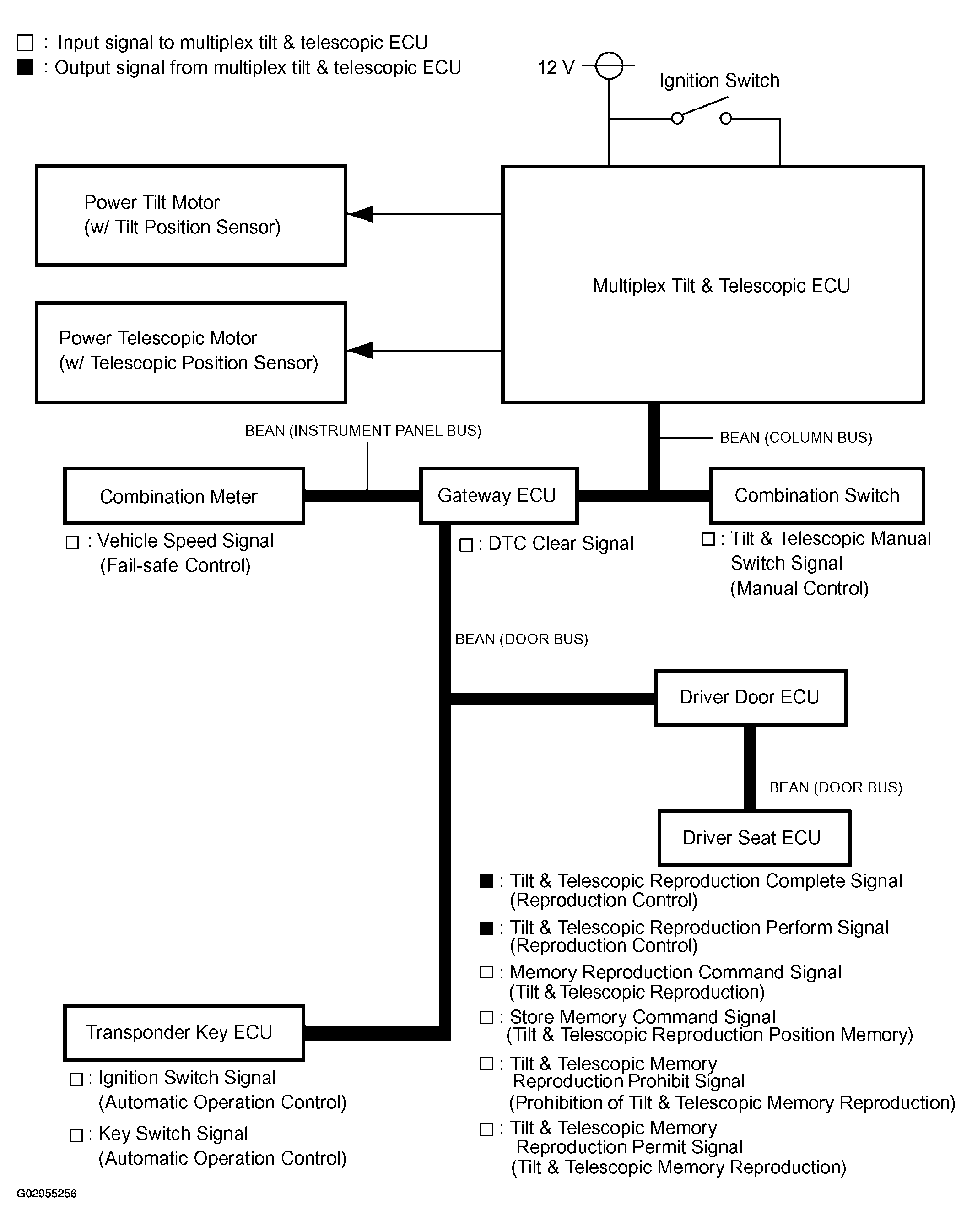

Fig 1: Power Tilt & Power Telescopic Steering Column System Diagram
G02955256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
