Front Seat Assembly LH: Components

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

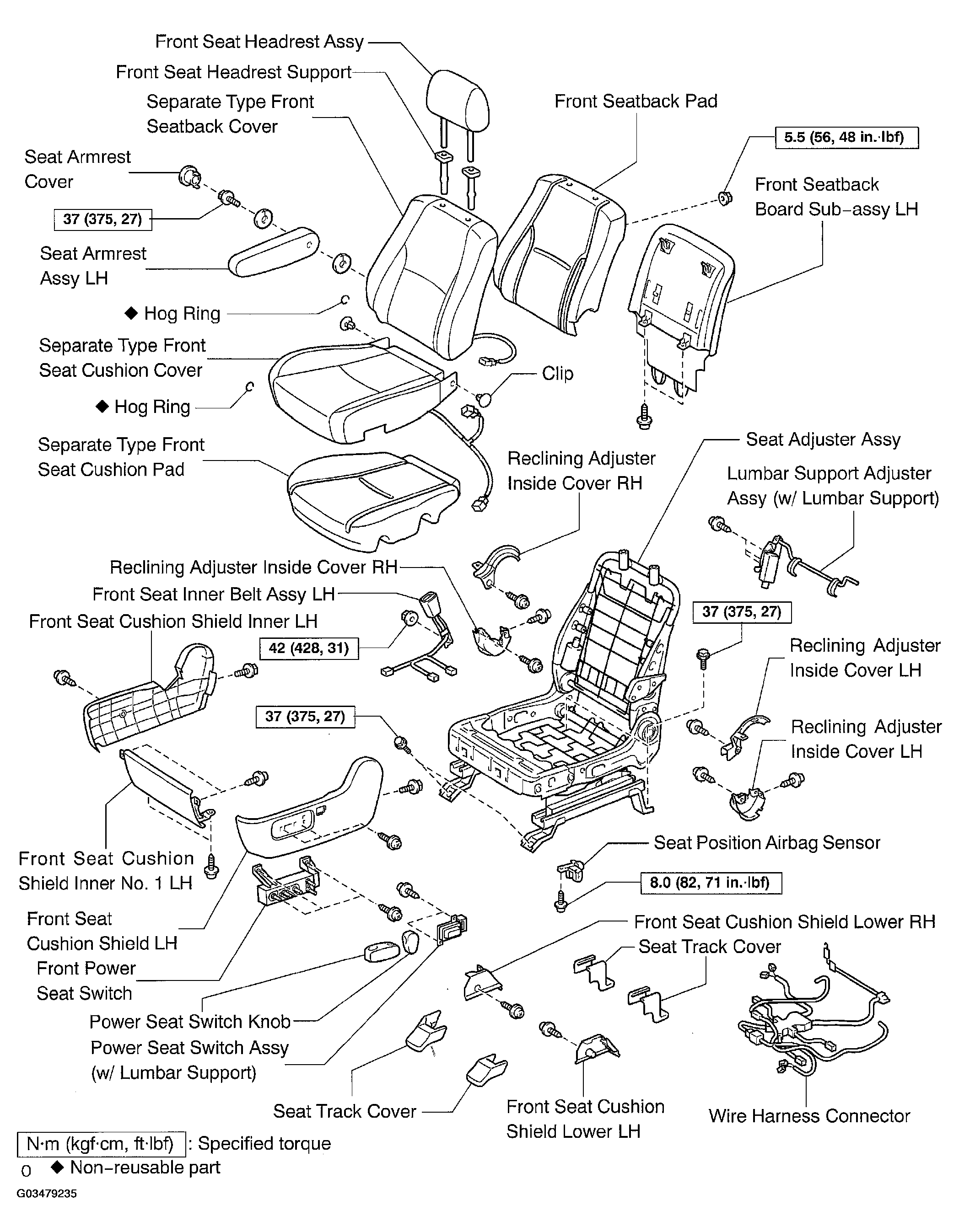

Fig 1: Identifying Front Seat Assembly LH Components
G03479235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
