Front Power Seat Control System: Location

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

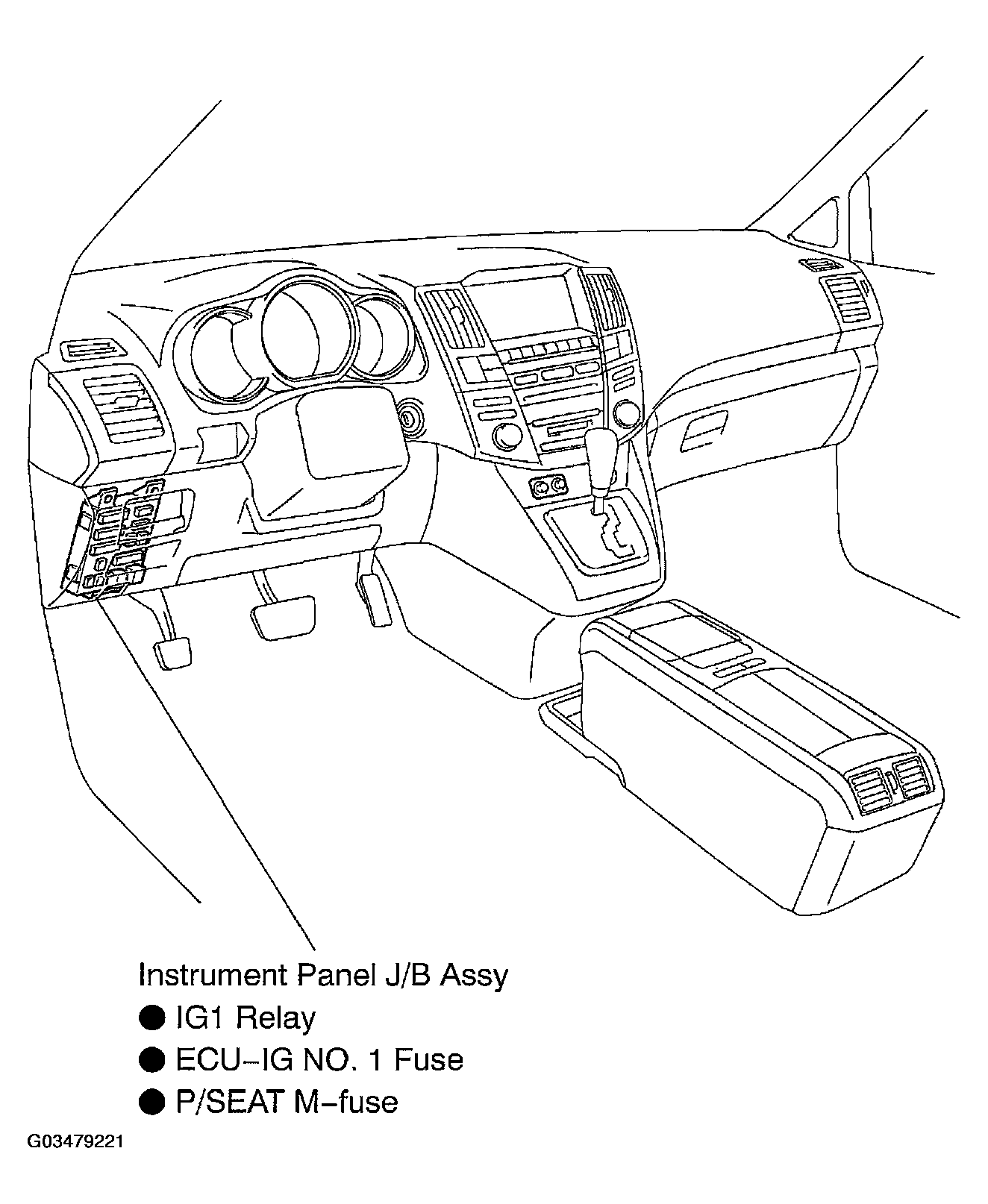

Fig 1: Identifying Front Power Seat Control System Location (1 Of 2)
G03479221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

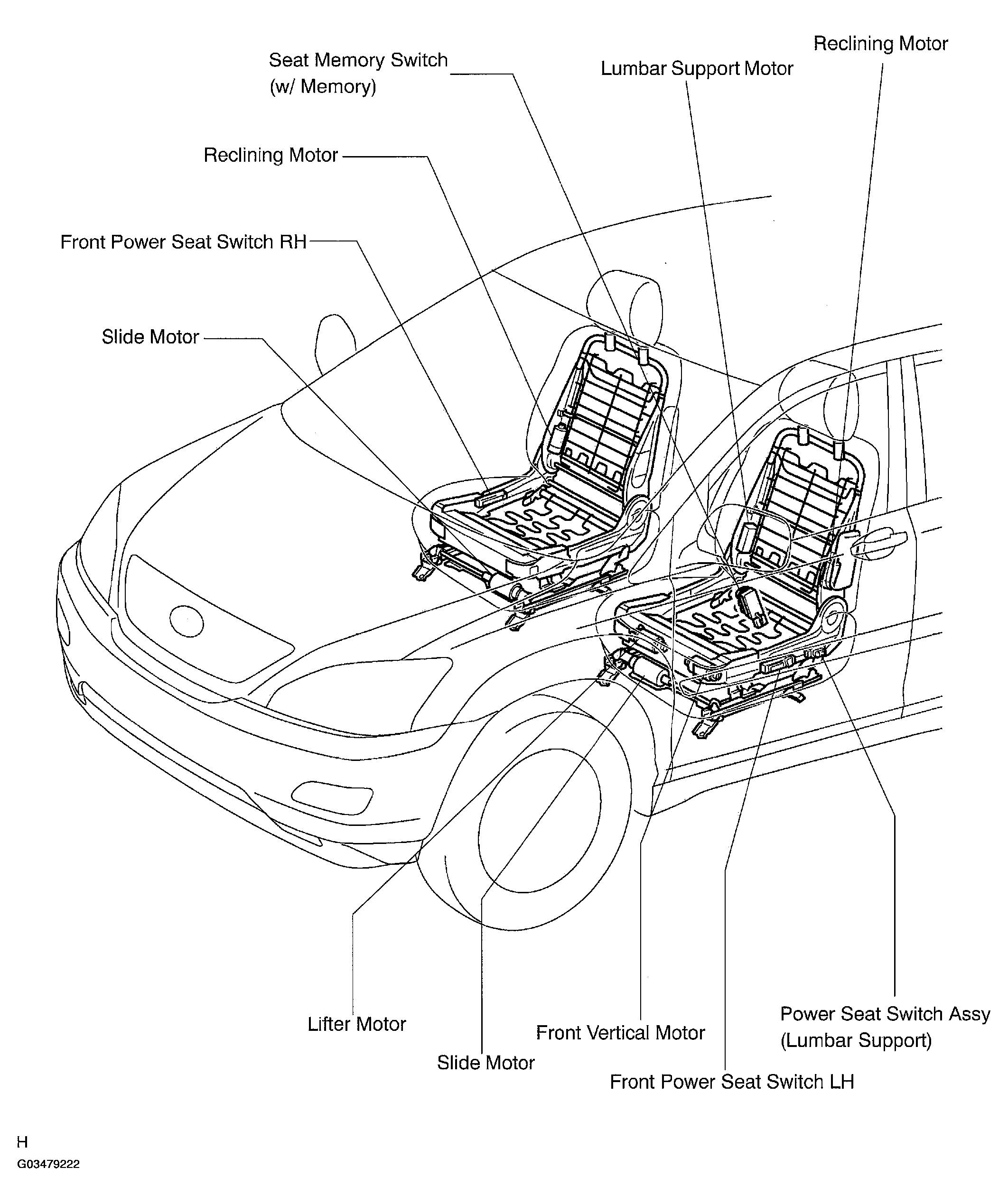

Fig 2: Identifying Front Power Seat Control System Location (2 Of 2)
G03479222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
