Radio Receiver ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT BATTERY NEGATIVE TERMINAL (See  AIR BAG RESTRAINT SYSTEMS  )
  2. REMOVE SHIFT LEVER KNOB SUB-ASSY (See  OVERHAUL  )
  3. REMOVE CONSOLE PANEL UPPER FRONT (See  REPLACEMENT  )
  4. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See  REPLACEMENT  )
  5. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
    1. Remove the 4 bolts.

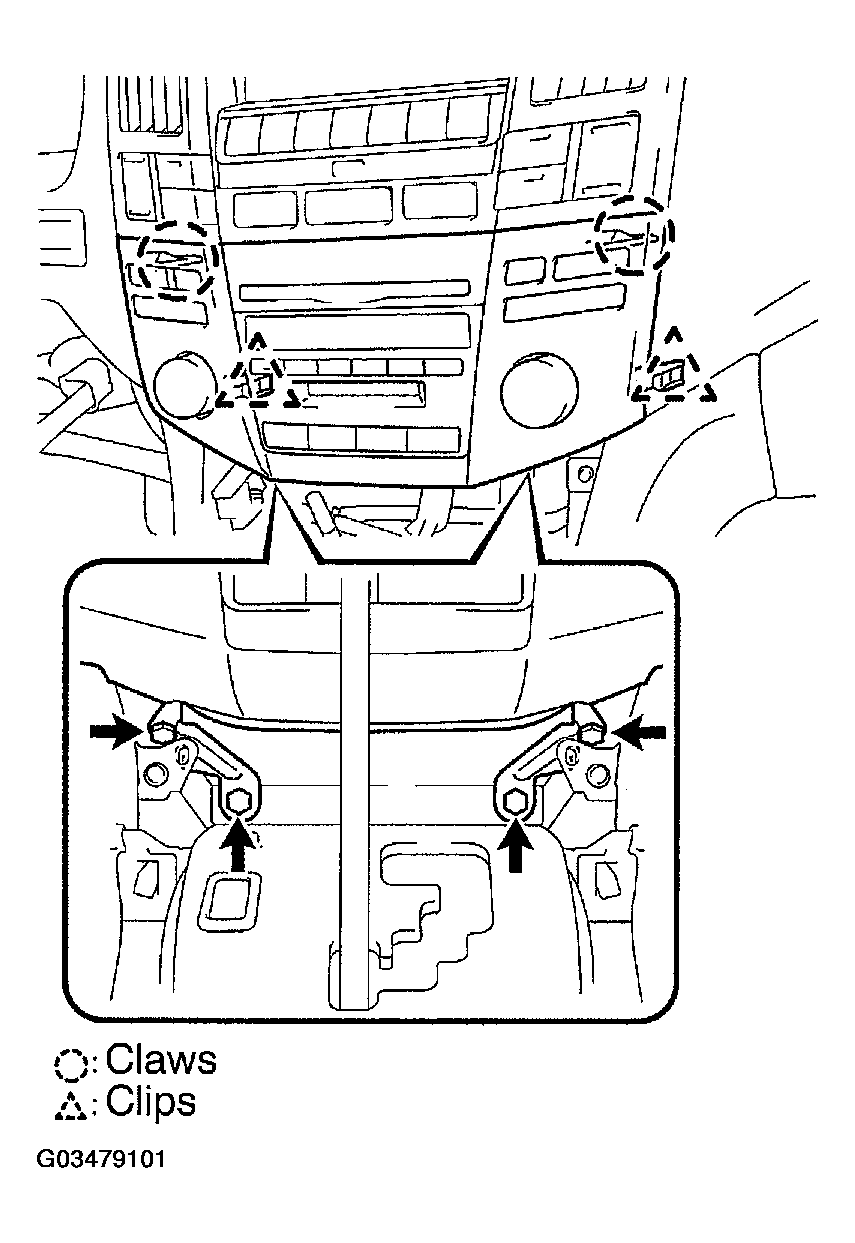

      2. Fig 1: Removing Radio Receiver Assembly W/ Bracket
      G03479101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and the 2 clips.
    3. Disconnect the connector.
    4. Remove the radio receiver assembly w/ bracket.
  6. REMOVE RADIO BRACKET NO.1
    1. Remove the 3 screws and the radio bracket No.1.

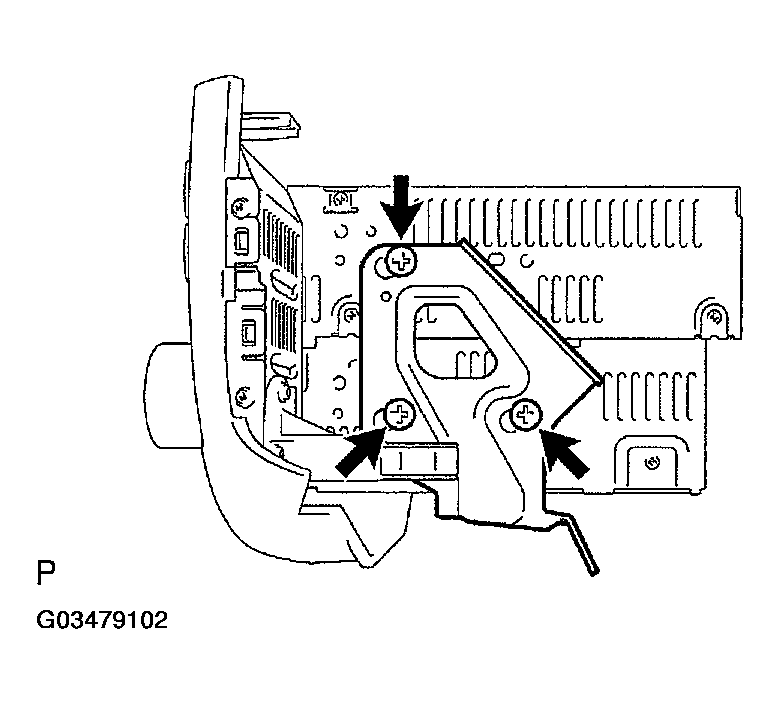

      Fig 2: Removing Radio Bracket No.1
      G03479102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE RADIO BRACKET NO.2
    1. Remove the 3 screws and the radio bracket No.2.

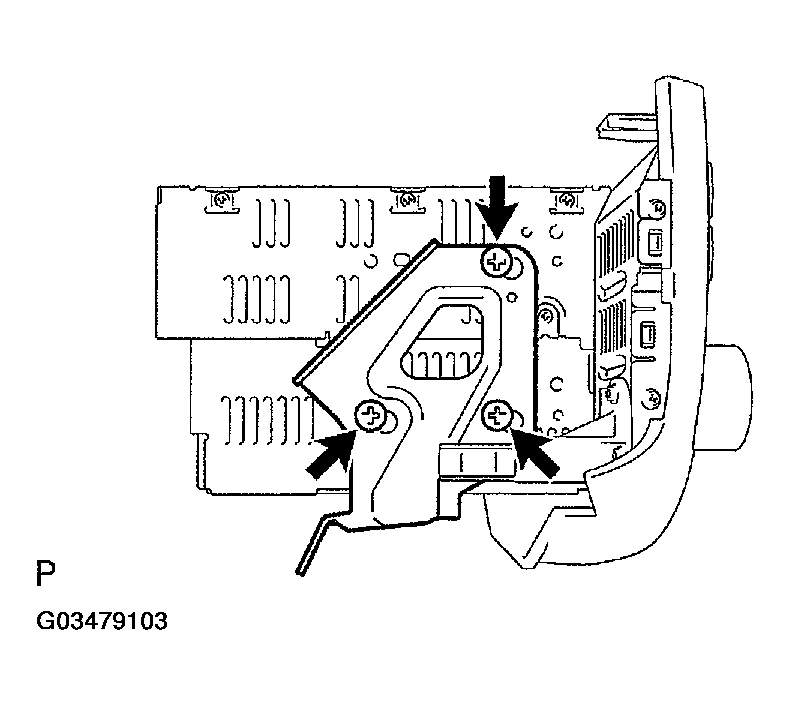

      Fig 3: Removing Radio Bracket No.2
      G03479103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE RADIO RECEIVER ASSY
