Rear View Monitor System - Diagnostics
>>
Parts Location
Parts Location

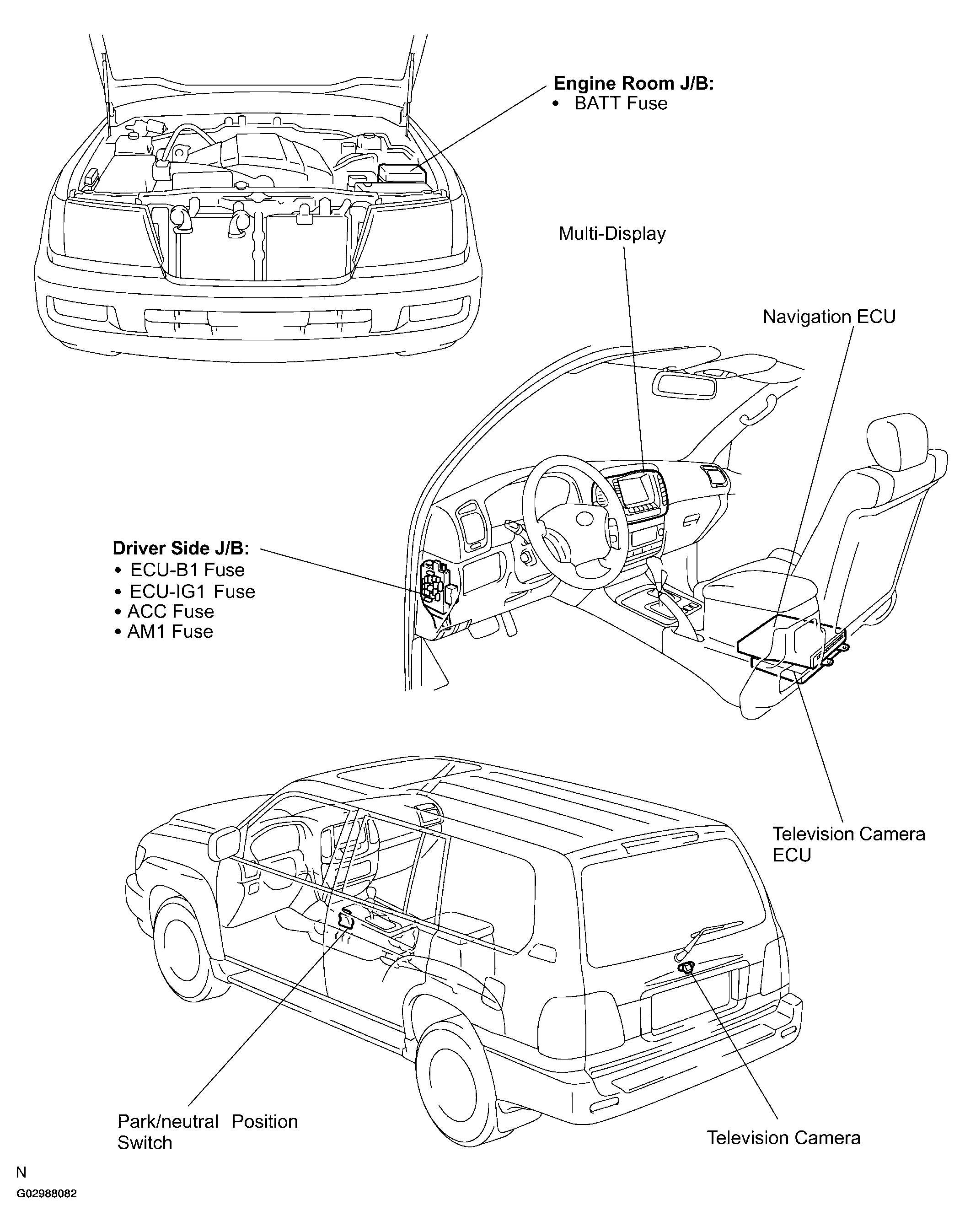

Fig 1: Identifying Rear View Monitor System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
