On-Vehicle Inspection

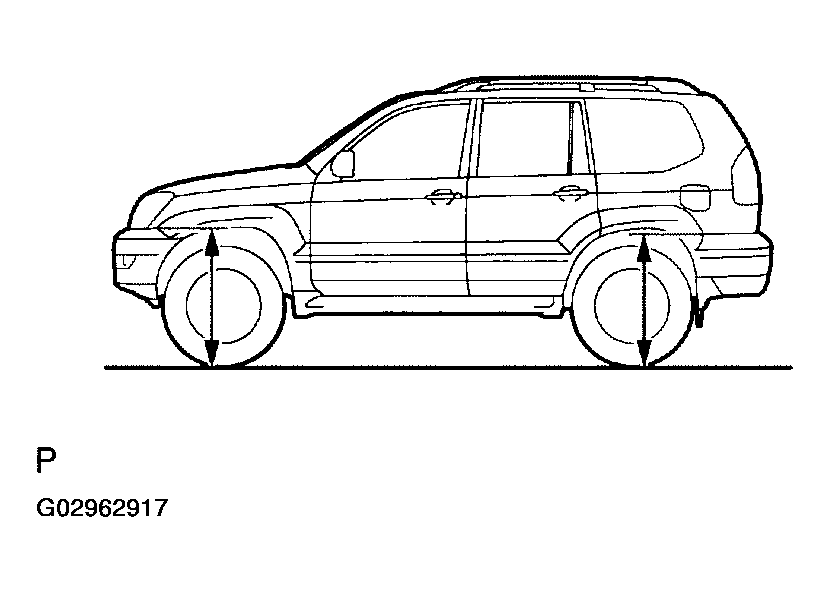

- MEASURE VEHICLE HEIGHT
- Measure the distance from the ground to the top of the bumper and calculate the difference in the vehicle height between left and right. Perform this procedure for both the front and rear wheels.
Height difference of left and right sides: 20 mm (0.79 in.) or less
NOTE:- Ensure that the wheels are on the ground and facing straight ahead.
- If the difference is not within the specified range, refer to HOW TO PROCEED WITH TROUBLESHOOTING .
- Measure the distance from the ground to the top of the bumper and calculate the difference in the vehicle height between left and right. Perform this procedure for both the front and rear wheels.

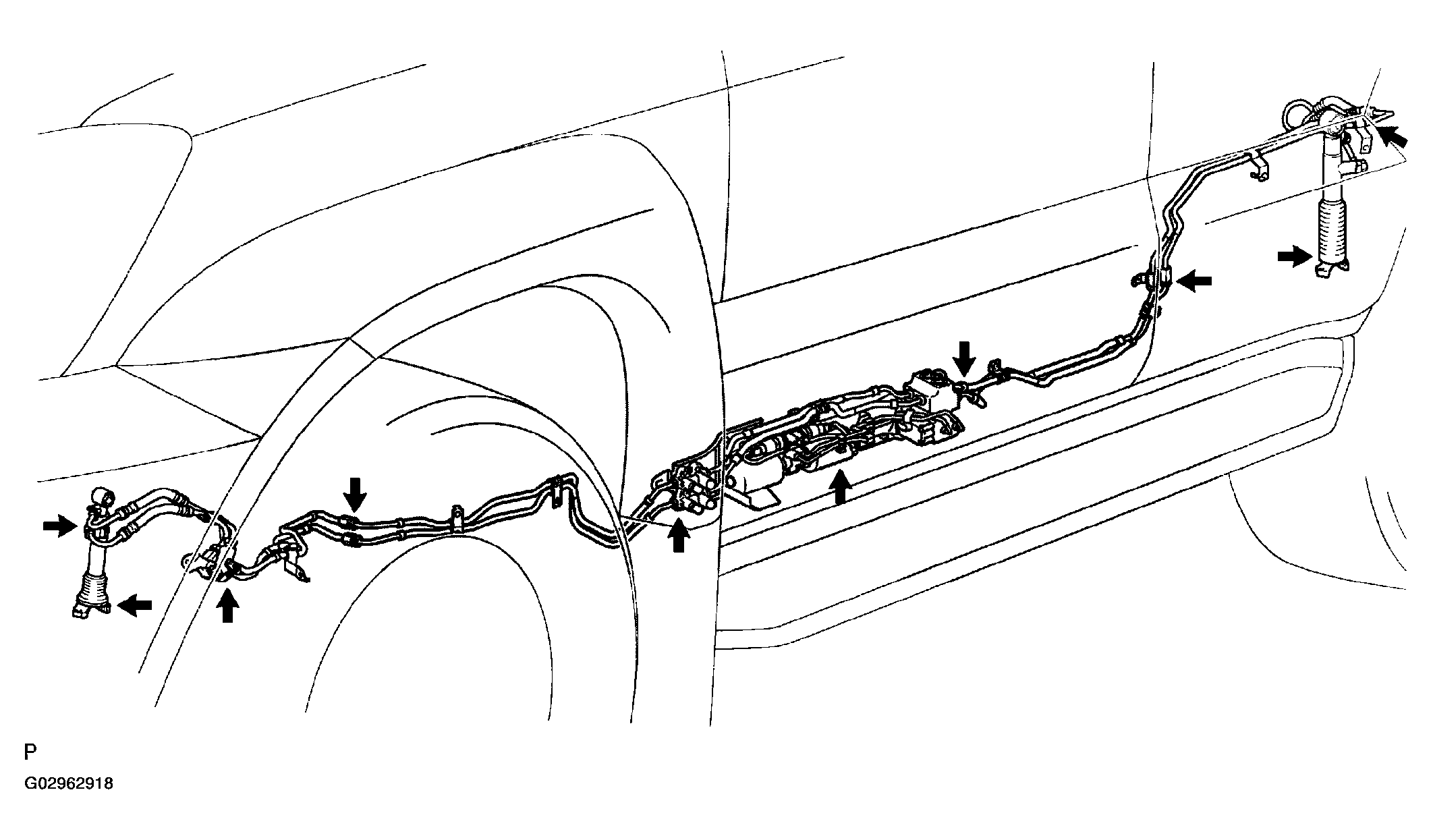

- CHECK FOR FLUID LEAKS
- Check the connection parts of the front stabilizer w/ tube cylinder assy, rear stabilizer control cylinder, stabilizer control w/ bracket valve assy and stabilizer control tube for suspension fluid leaks.
