Combination Meter: Location

WARNING: This page is about a different car, the 2005 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

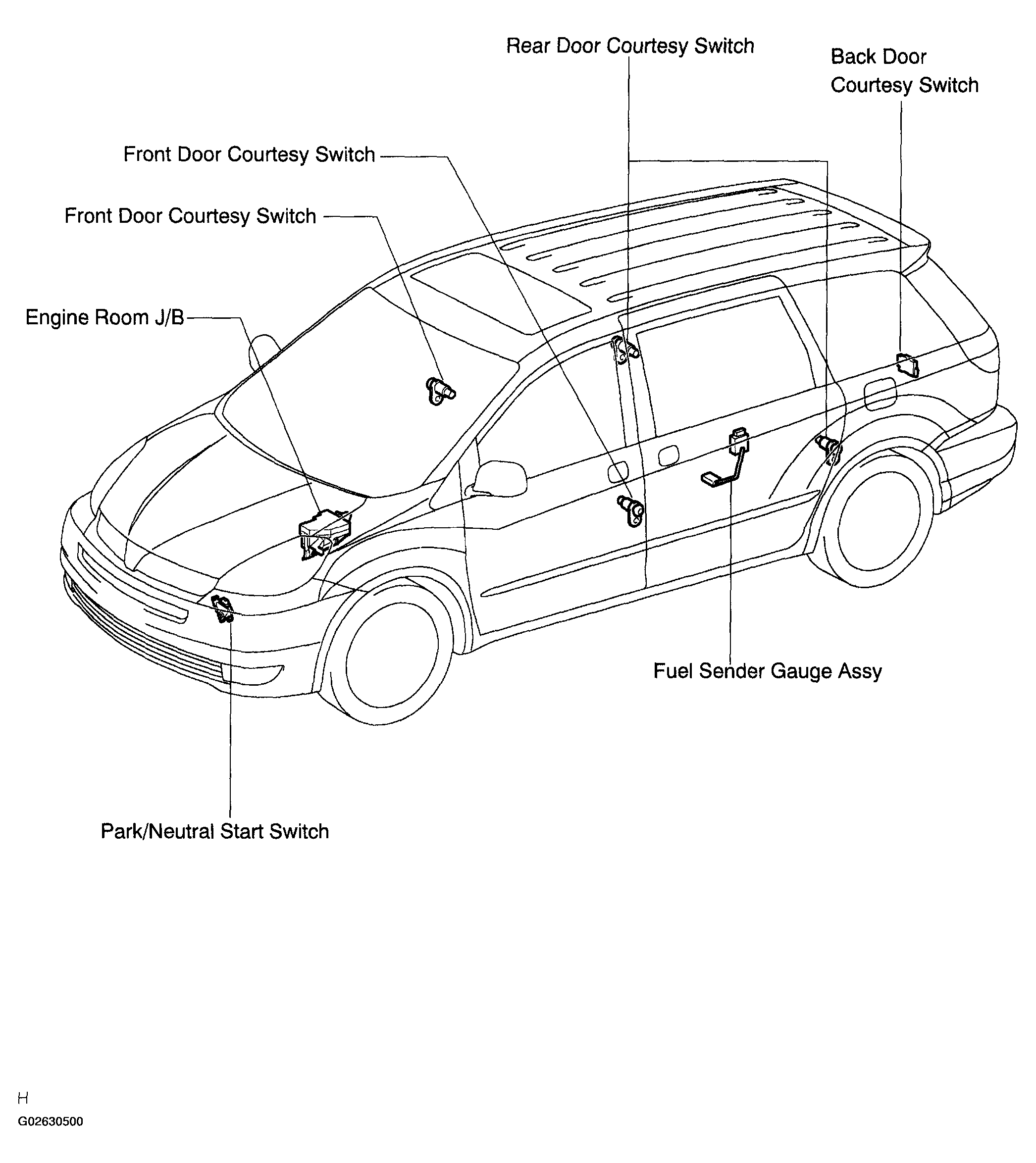

Fig 1: Identifying Switches Location (Various)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

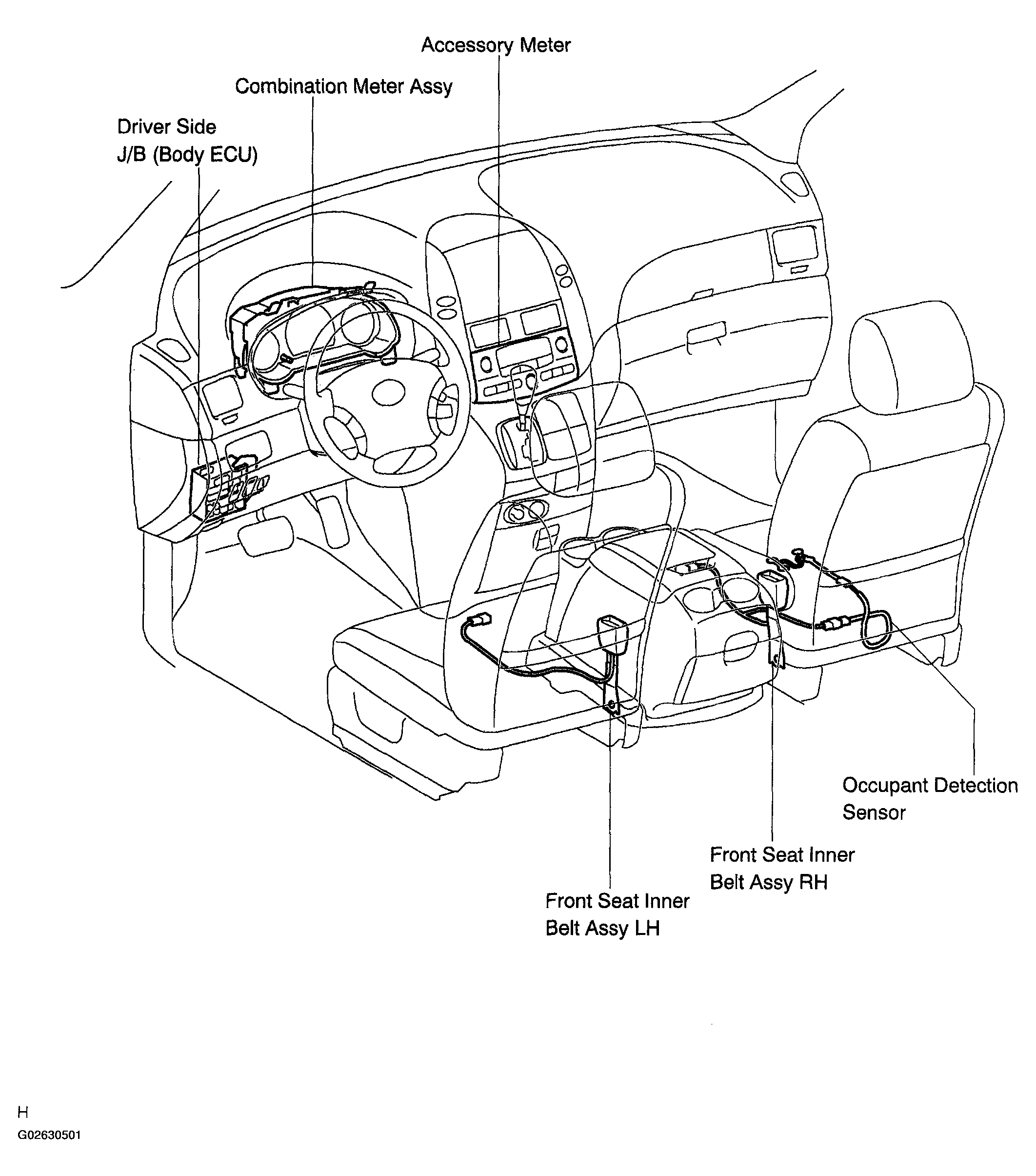

Fig 2: Identifying Combination Meter Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

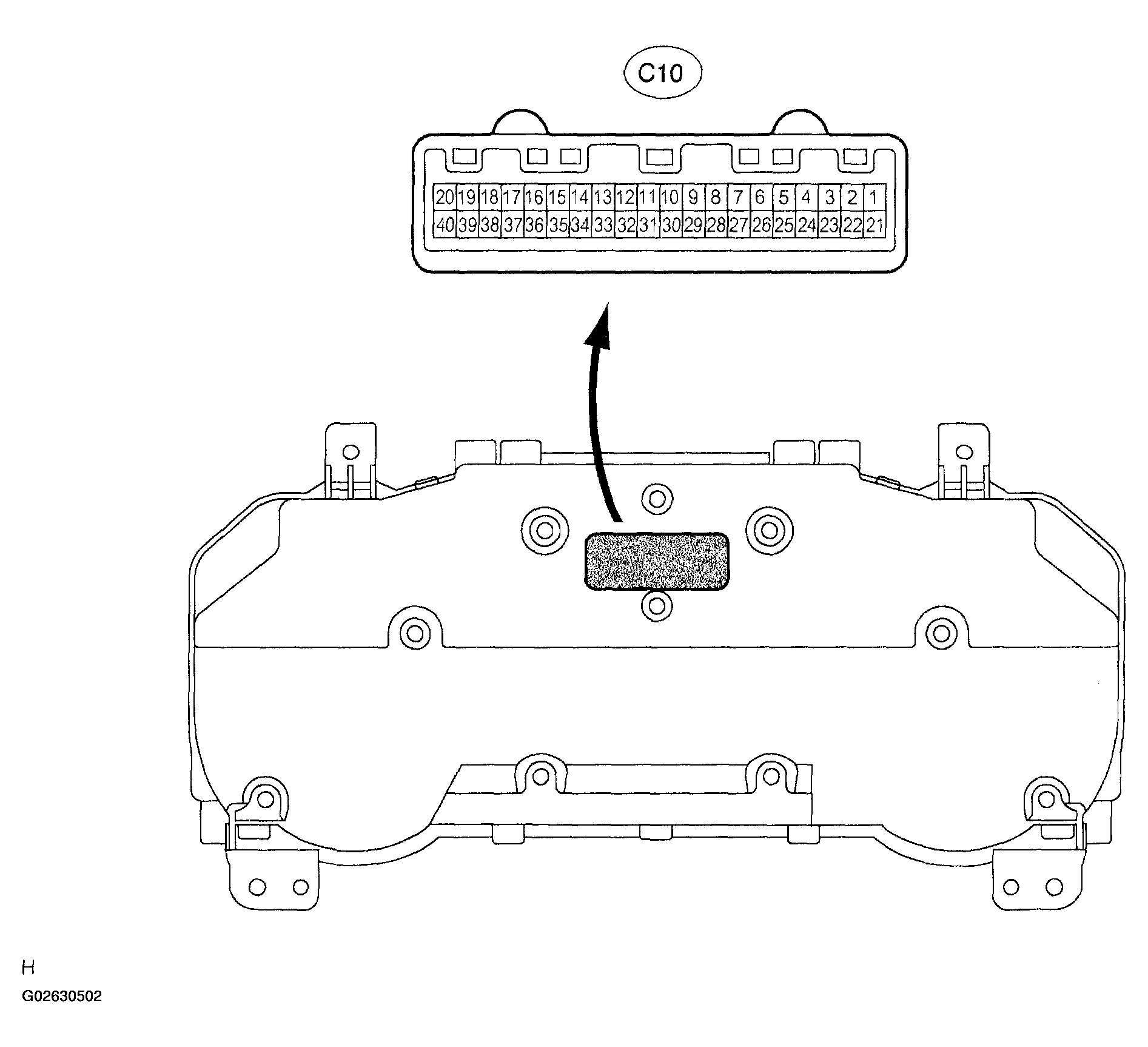

Fig 3: Identifying C10 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

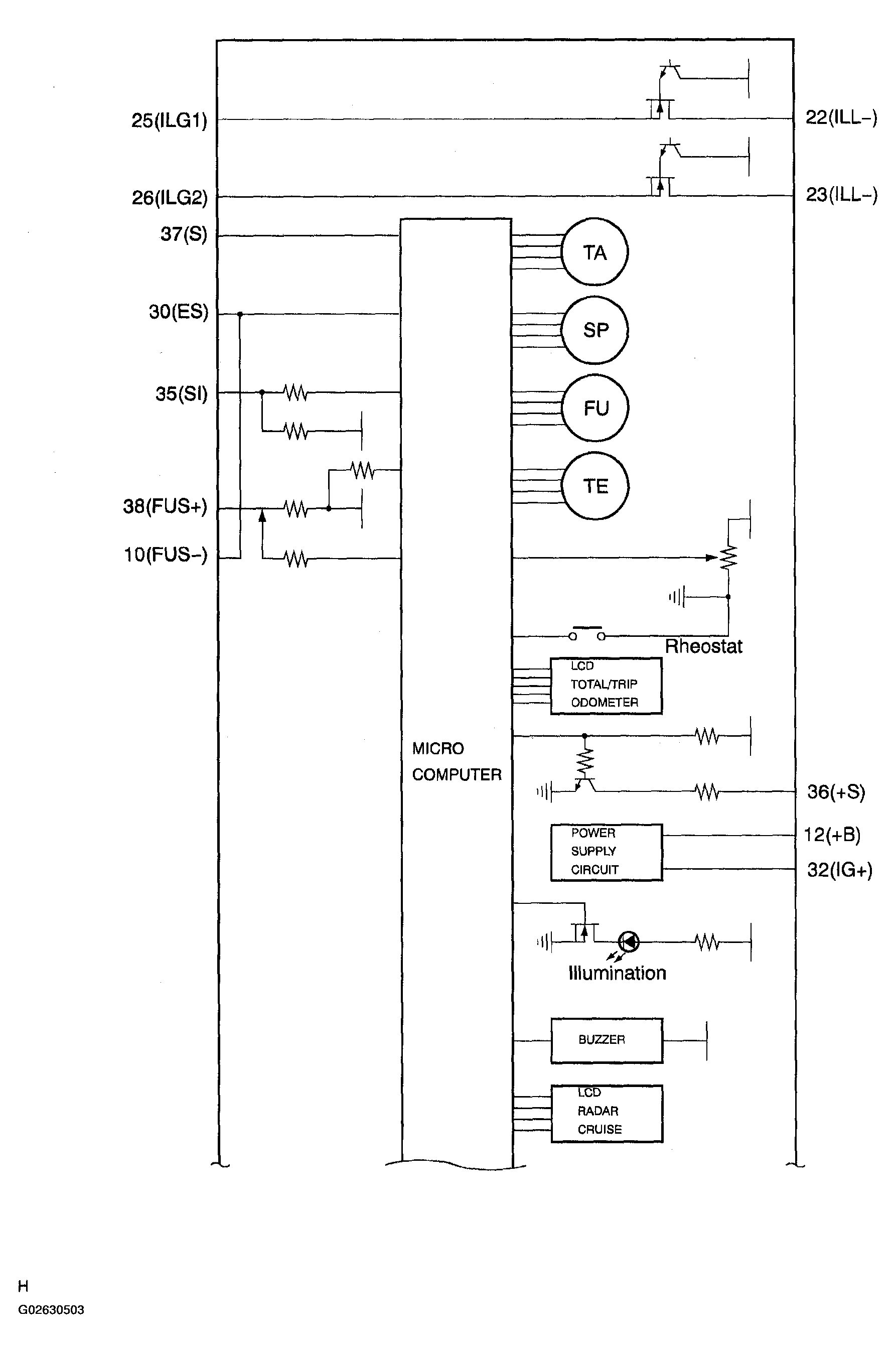

Fig 4: Circuit Diagram - Combination Meter (1 Of 2)

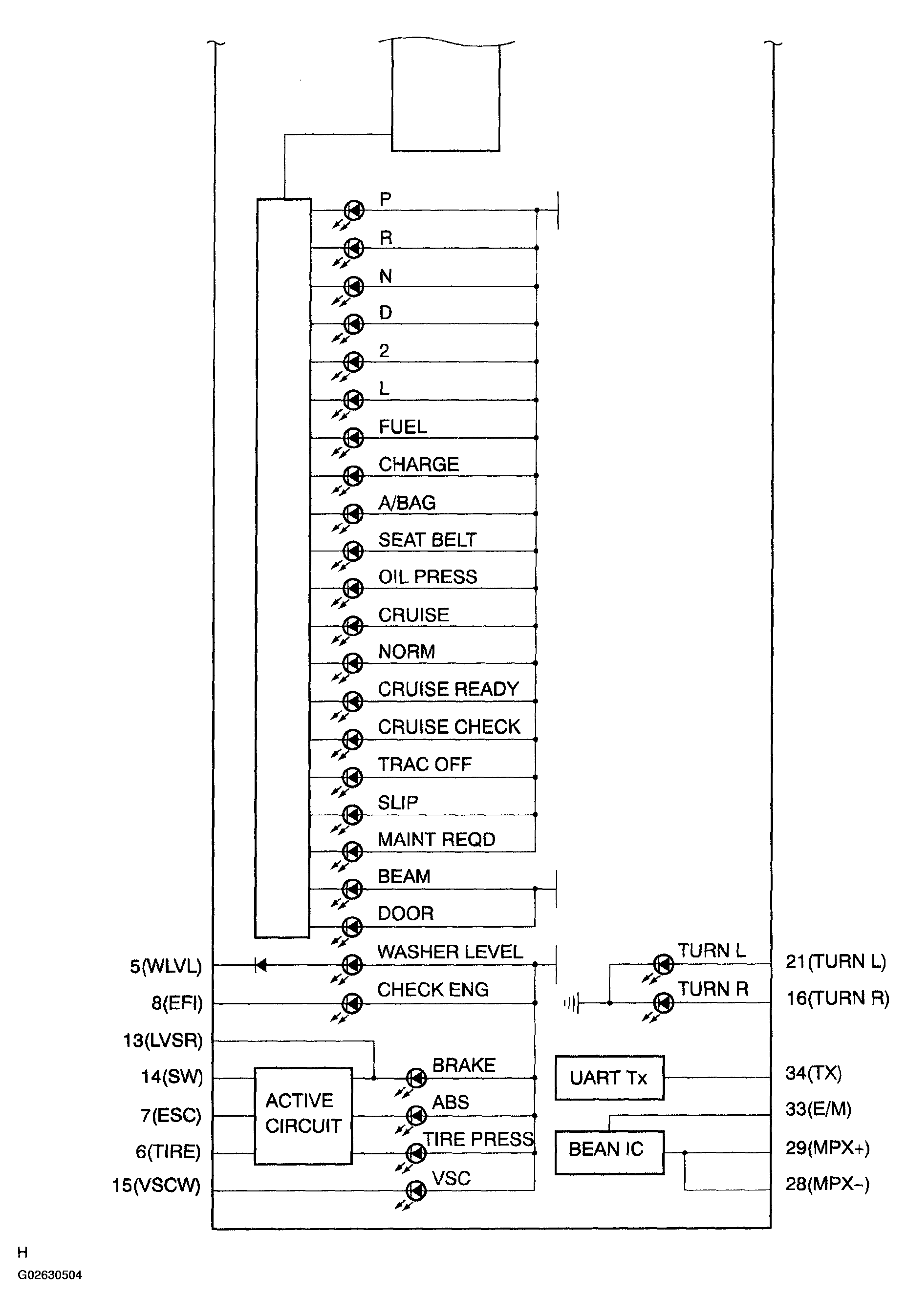

Fig 5: Circuit Diagram - Combination Meter (2 Of 2)

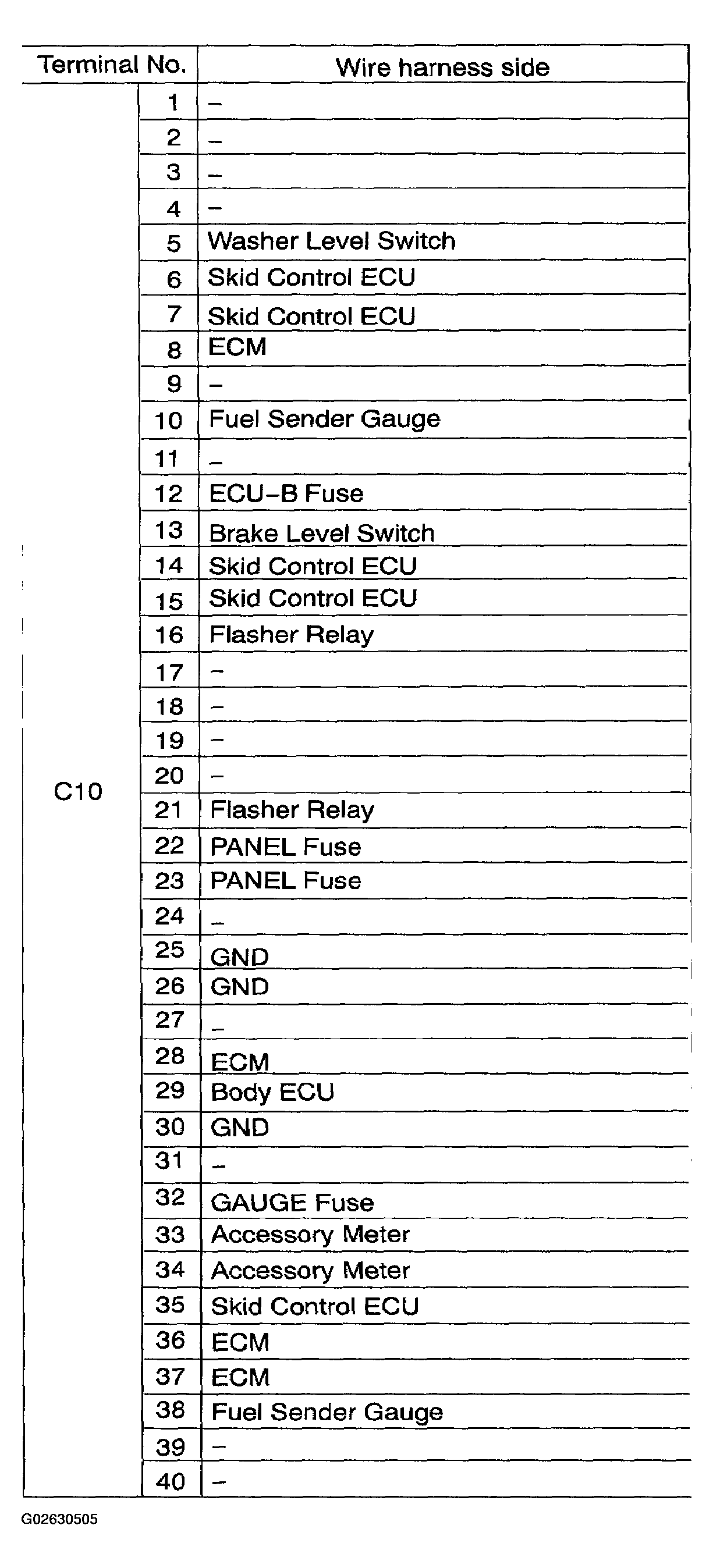

Fig 6: Terminals Description Table
