Section 104 (Front Door): Adjustment

WARNING: This page is about a different car, the 2004 Toyota Sienna. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

On the RH side, use the same procedures as on the LH side.
Since a centering bolt is used as a door hinge mounting bolt on the body side and the door side, the door can not be adjusted with it on. Substitute a bolt with a washer for the centering bolt.

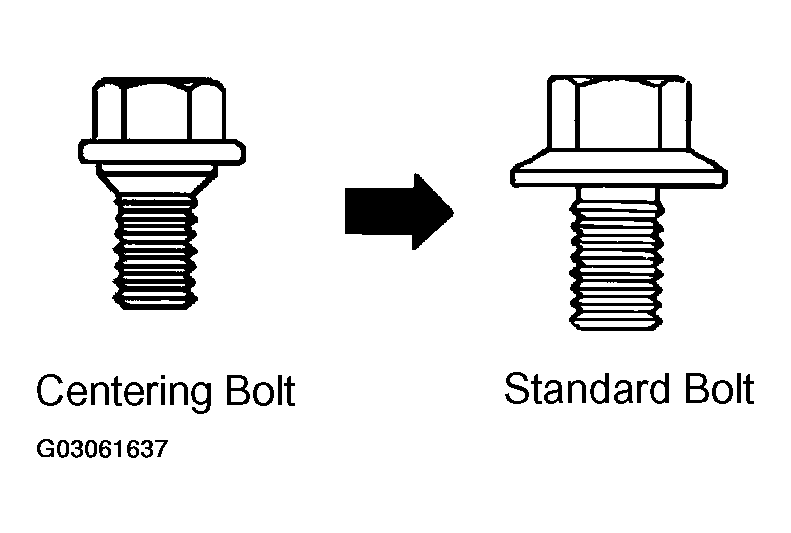

Fig 1: Identifying Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT FRONT DOOR PANEL SUB-ASSY LH

Check that the clearance is within the standard range.

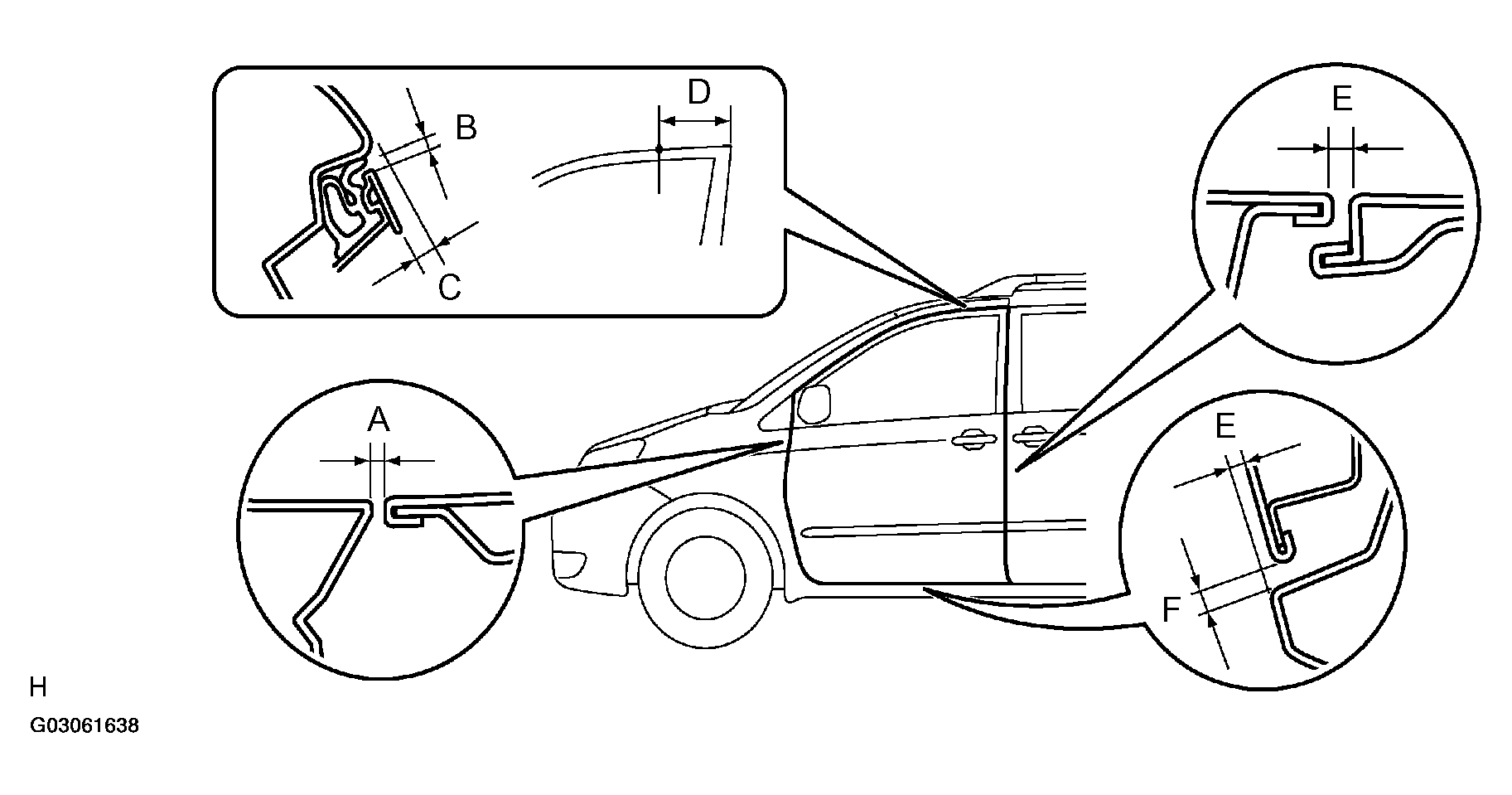

Fig 2: Inspecting Front Door Panel Sub-Assy LH

Standard:

FRONT DOOR PANEL SUB-ASSY LH SPECIFICATIONS

A	5.0 +/- 1.5 mm (0.197 +/- 0.059 in.)
B	5.5 +/- 1.5 mm (0.220 +/- 0.059 in.)
C	5.2 +/- 1.5 mm (0.205 +/- 0.059 in.)
D	160 mm (6.30 in.)
E	9.2 +/- 1.5 mm (0.362 +/- 0.059 in.)
F	6.3 +/- 1.5 mm (0.250 +/- 0.059 in.)

ADJUST FRONT DOOR PANEL SUB-ASSY LH

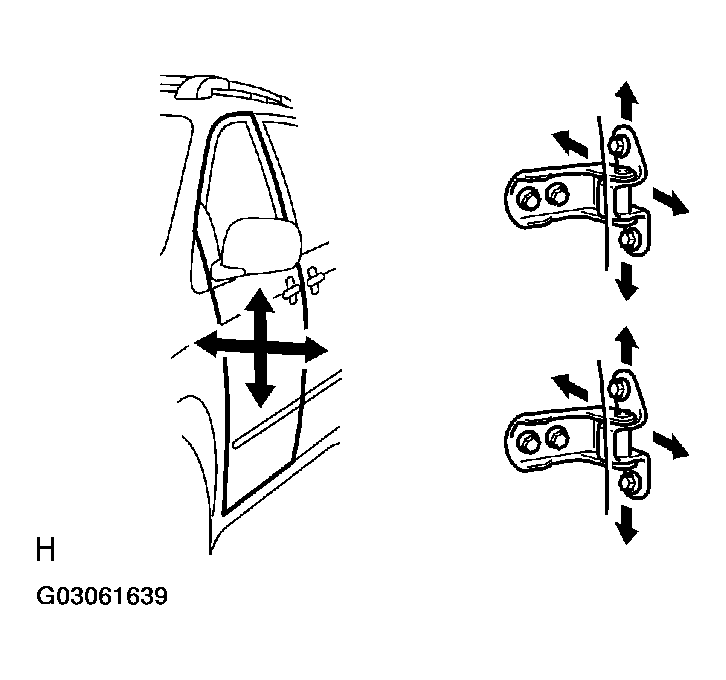

1. Using SST, horizontally and vertically adjust the door by loosening the body side hinge bolts.
  SST 09812-00010, 09812-00020
2. Tighten the door side hinge bolts after the adjustment.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 3: Tightening Front Door Panel Sub-Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

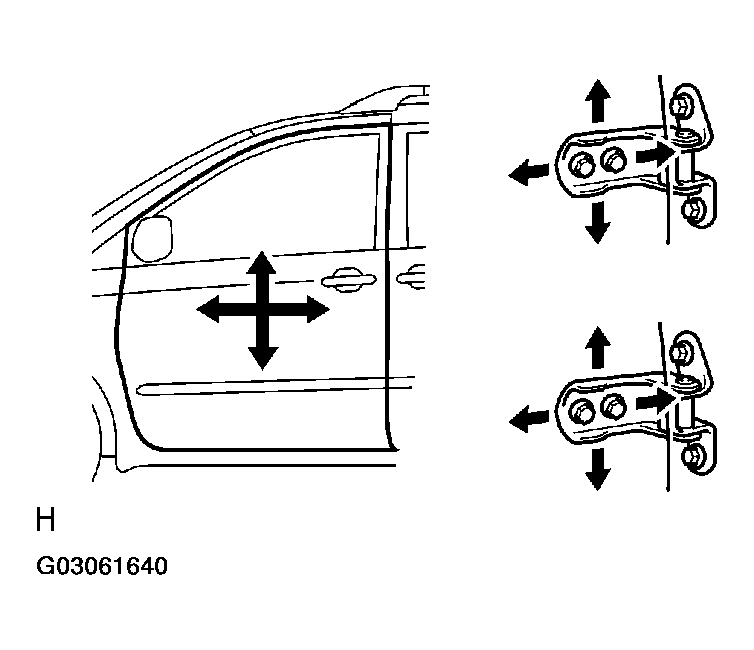

3. Adjust the door forward/rearward and vertically by loosening the door side hinge bolts.
4. Tighten the door side hinge bolts after the adjustment.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 4: Tightening Door Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

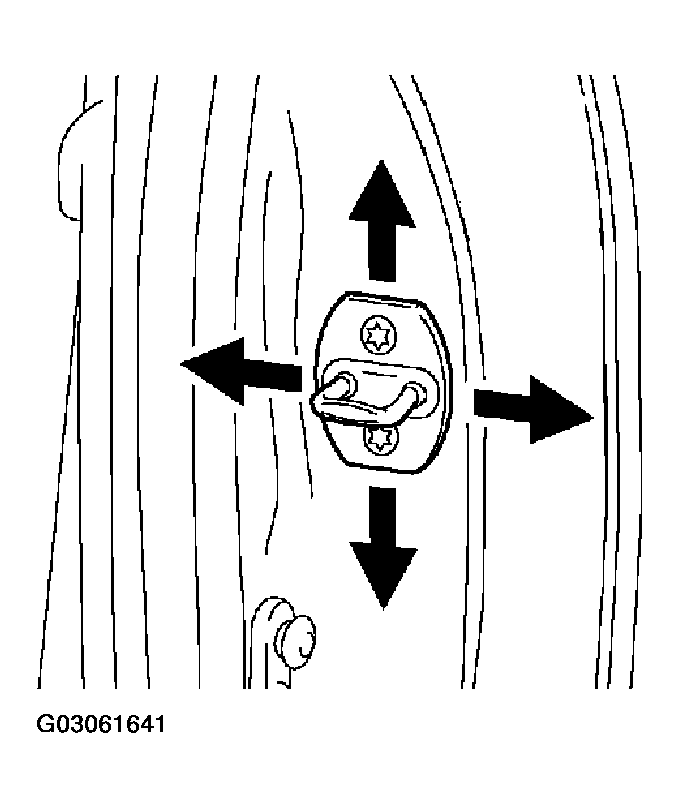

5. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a plastic-faced hammer.
6. Tighten the striker mounting screws after the adjustment.
  Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)
Fig 5: Tightening Striker Mounting Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
