Starter ASSY (3MZ-FE): Components

Fig 1: Identifying Starter Assy (3MZ-F3) Components (1 Of 2)
G02939106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

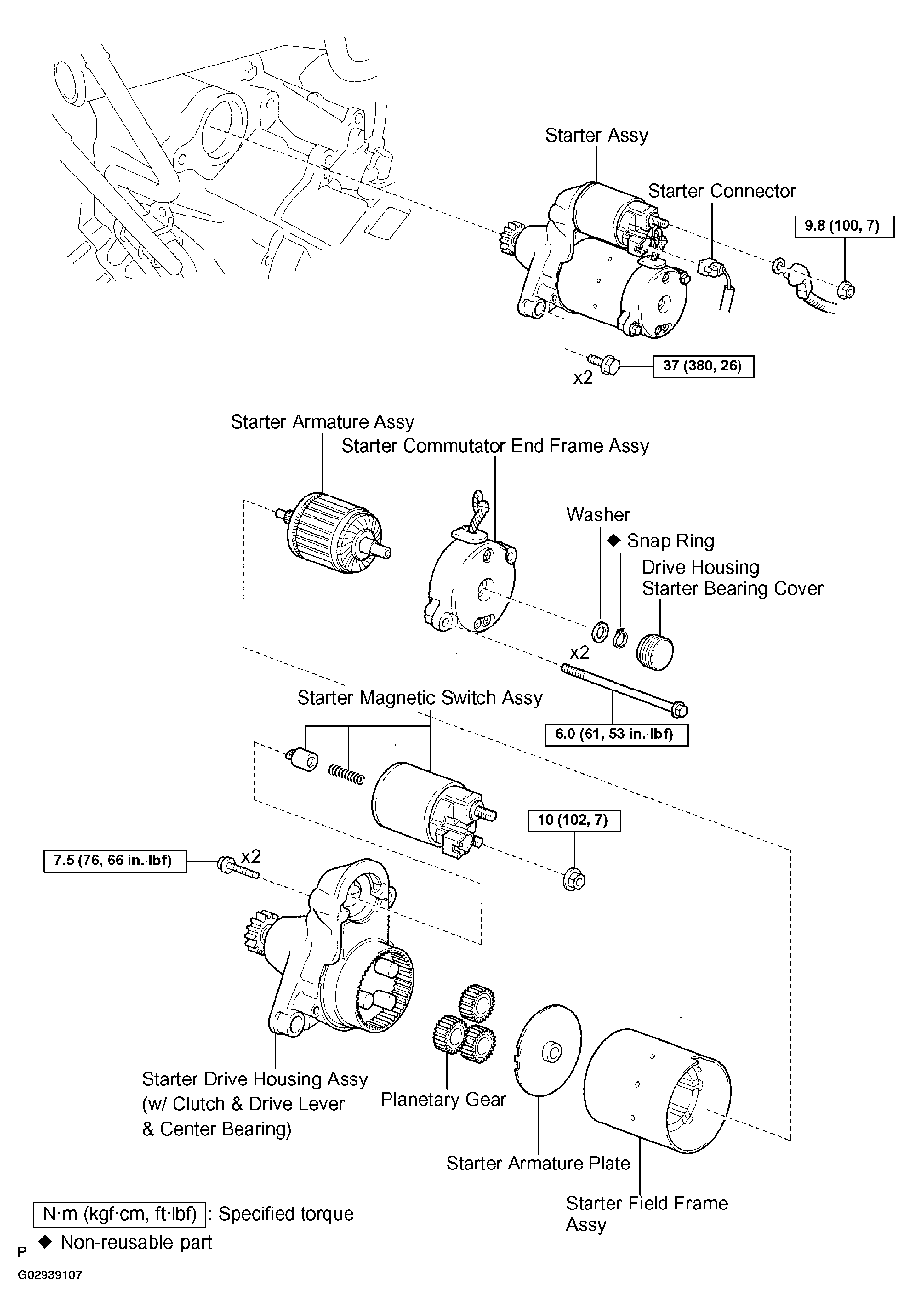

Fig 2: Identifying Starter Assy (3MZ-F3) Components (2 Of 2)
G02939107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
