Front Seat Belt With PRETENSIONER: Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.

SEPARATE BATTERY NEGATIVE TERMINAL
REMOVE FRONT SEAT INNER BELT ASSY LH
1. Remove the front seat assembly. (See OVERHAUL )
2. Remove the front seat cushion inner shield. (See OVERHAUL )
3. Remove the nut and front seat inner belt.
REMOVE REAR SEAT CUSHION ASSY (See OVERHAUL )
REMOVE REAR SEAT HEADREST PLATE COVER (See OVERHAUL )
REMOVE WIND DEFLECTOR BOARD ASSY (See OVERHAUL )
REMOVE REAR SEAT HEADREST PLATE (See OVERHAUL )
REMOVE REAR SEAT HEADREST ASSY (See OVERHAUL )
REMOVE REAR SEAT BACK ASSY (See OVERHAUL )
REMOVE DOOR SCUFF PLATE ASSY LH (See REPLACEMENT )
REMOVE QUARTER TRIM PANEL ASSY FRONT LH
1. Remove the bolt and floor anchor.

  Fig 1: Removing Floor Anchor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

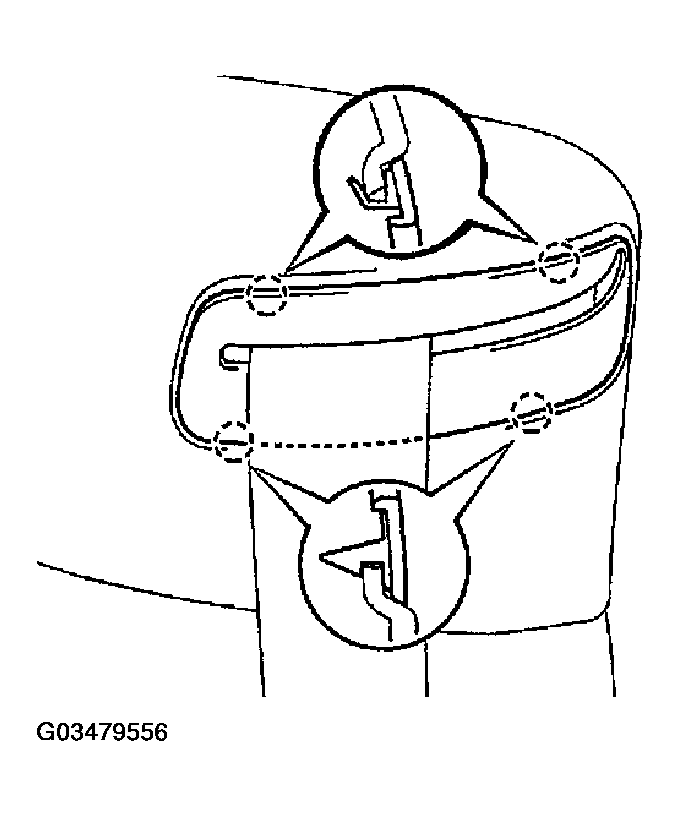

2. Using a screwdriver, remove the front seat belt hole.
  HINT:

  Tape the screwdriver tip before use.

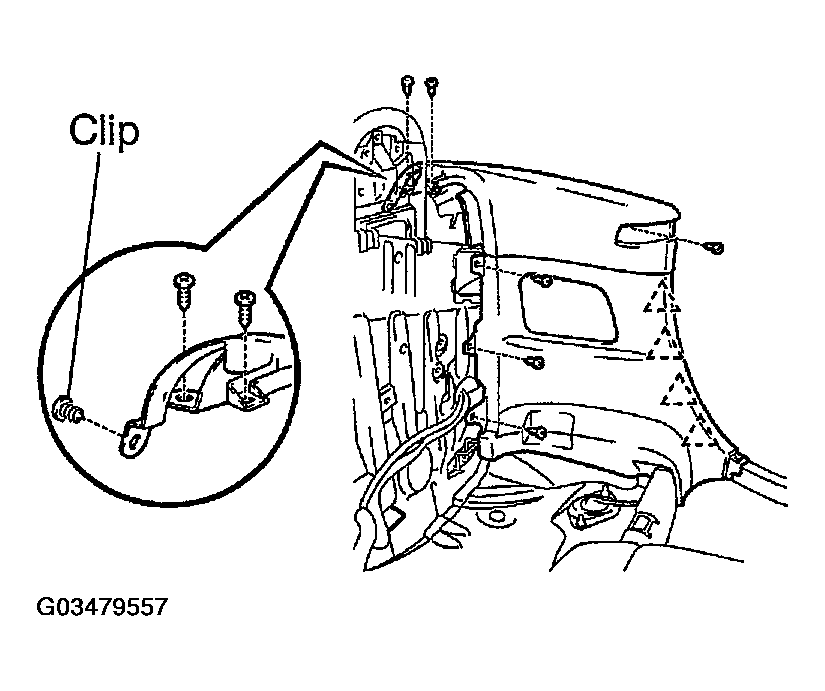

3. Remove the 6 screws and clip.

  Fig 2: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, pry out the quarter trim panel assembly front.
HINT:

Tape the screwdriver tip before use.
REMOVE FRONT SEAT OUTER BELT ASSY LH
1. Remove the bolt and shoulder anchor.

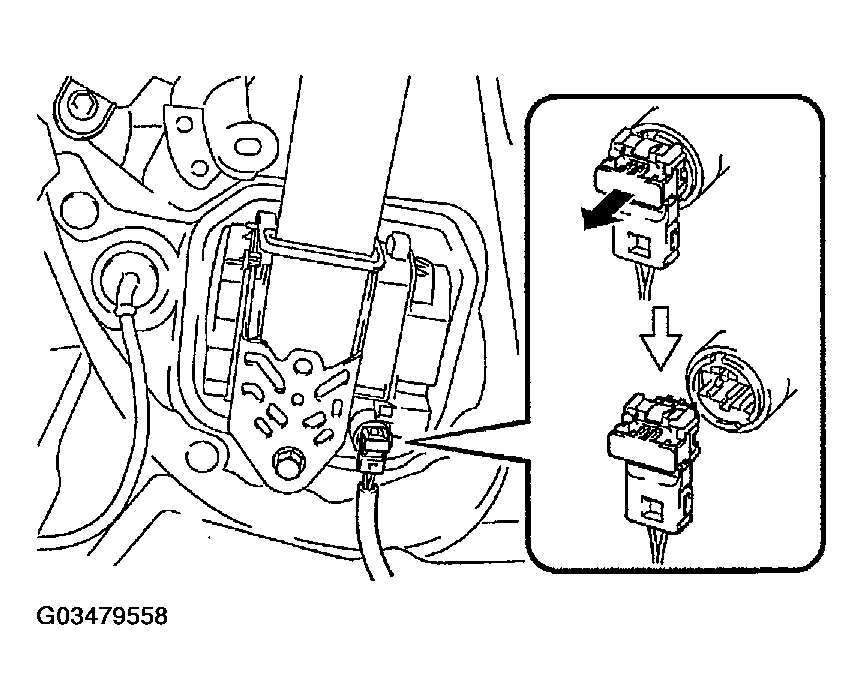

2. Disconnect the pretensioner connector as shown in Fig 3 .

  Fig 3: Disconnecting Pretensioner Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: When removing the seat belt pretensioner, operation must be started after 90 seconds have passed from the time the ignition switch is turned to the LOCK position and the negative (-) terminal cable is disconnected from the battery.
3. Remove the 2 bolts and front seat outer belt.
INSTALL FRONT SEAT OUTER BELT ASSY LH

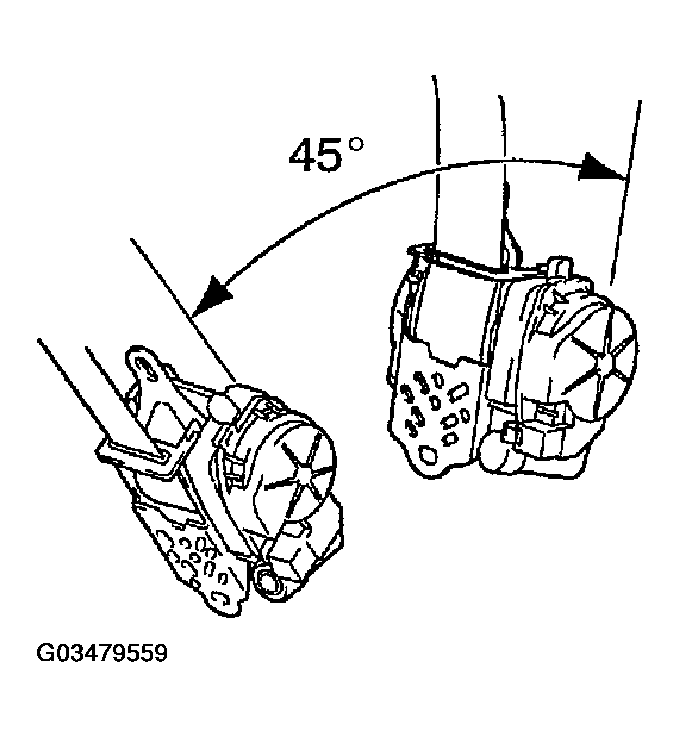

1. Check the degree of tilt when beginning to lock the ELR.
  1. Make sure that the belt cannot be pulled out by over 45 degrees of tilt.

    Fig 4: Checking Belt Cannot Be Pulled Over 45° Of Tilt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: Do not disassemble the retractor.
2. Install the retractor with the 2 bolts.
  Torque:
  - Upper side: 7.5 N.m (77 kgf.cm, 66 in.lbf)
  - Lower side: 42 N.m (428 kgf.cm, 31 ft.lbf)
3. Install the shoulder anchor with the bolt.
  Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
4. Install the floor anchor with the bolt.
  Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
5. Check the ELR lock.
  1. Check that the seat belt is locked when the seat belt is pulled out quickly with the seat belt installed in the vehicle.
INSTALL FRONT SEAT INNER BELT ASSY LH
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
