Section 439 (Tire & Wheel): Repair

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

VEHICLE PULLING DIAGNOSIS
1. Diagnosis of tire vibration

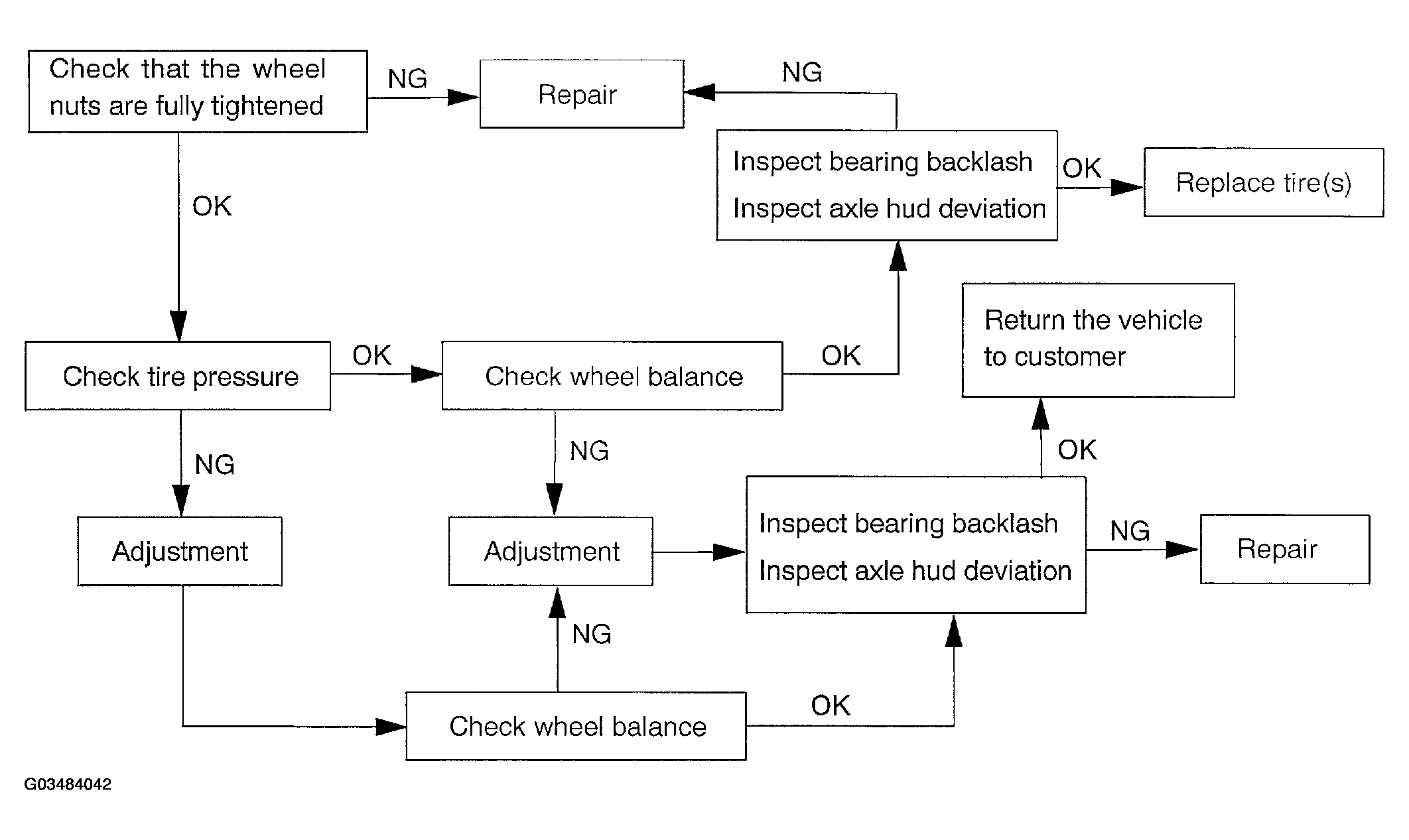

  Fig 1: Diagnosis Of Tire Vibration Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Diagnosis of premature or irregular tire wear

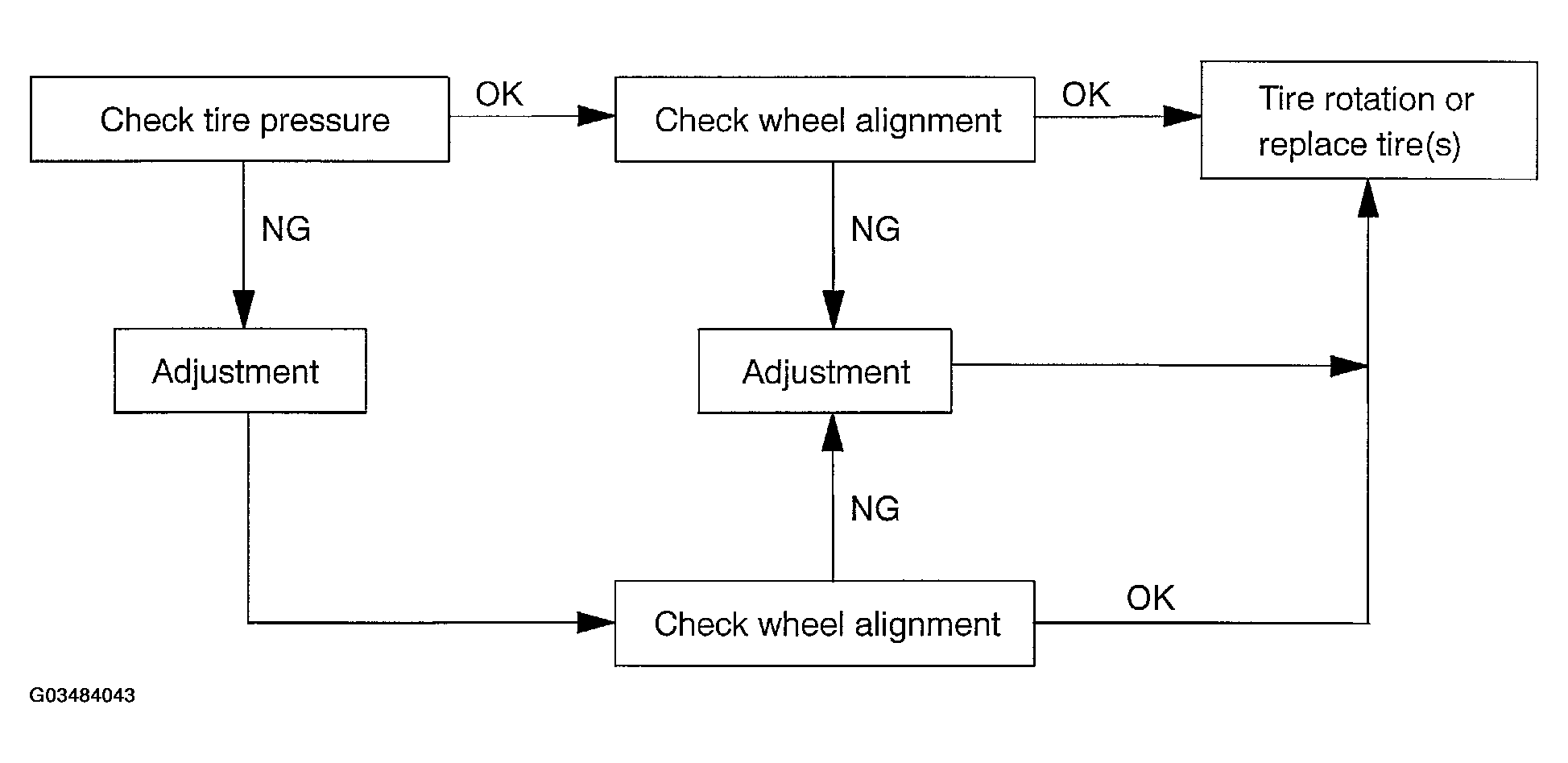

  Fig 2: Diagnosis Of Premature Or Irregular Tire Wear Flow Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
