Engine Immobilizer System - Diagnosis: Pre-Check

1. Connect the hand-held tester to the DLC3.
2. Read the data monitor using the hand-held tester.

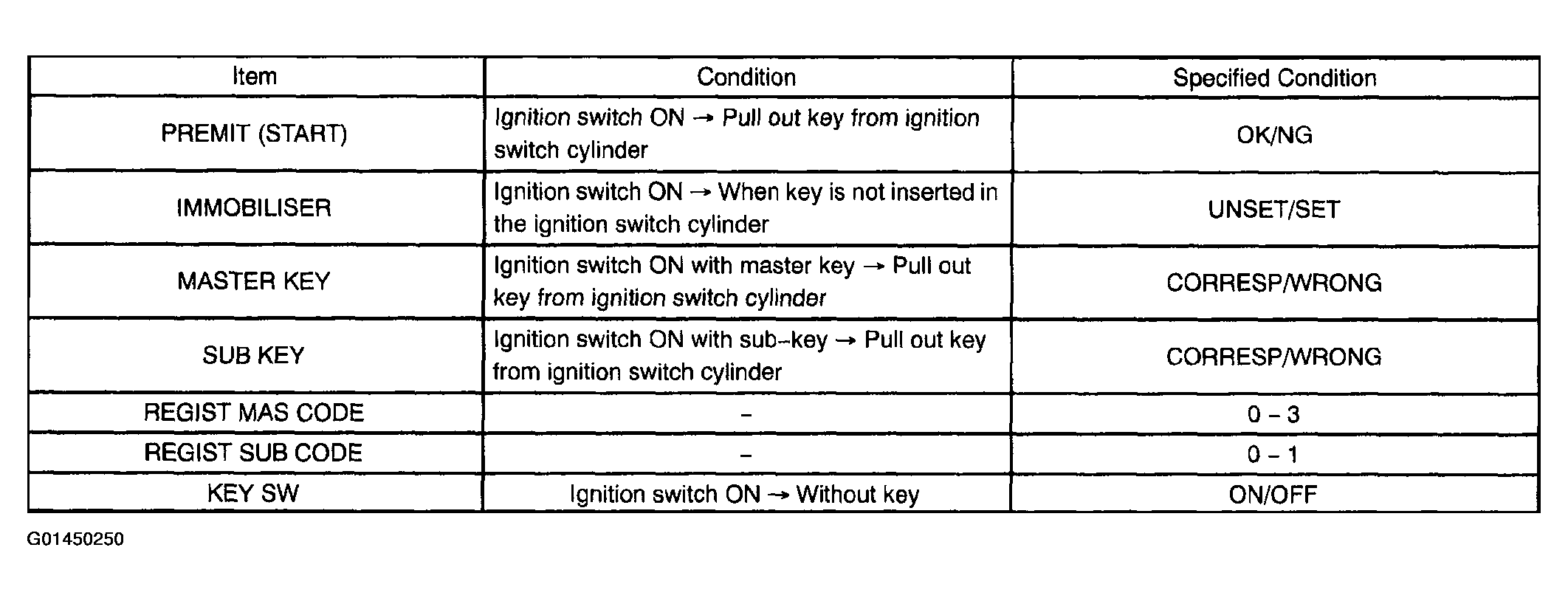

TRANSPONDER KEY ECU:

Fig 1: Transponder Key ECU - Data List Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

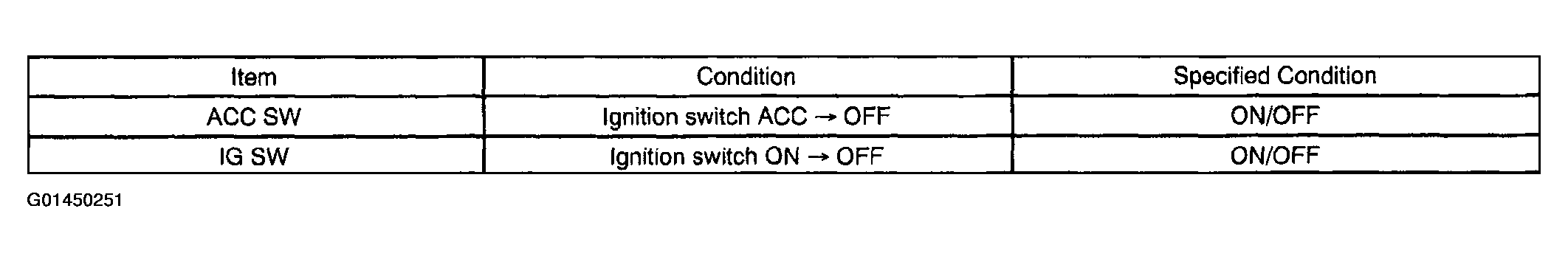

THEFT WARNING ECU:

Fig 2: Theft Warning ECU - Data List Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the hand-held tester to the DLC3.
2. Enter into the active test using the hand-held tester.

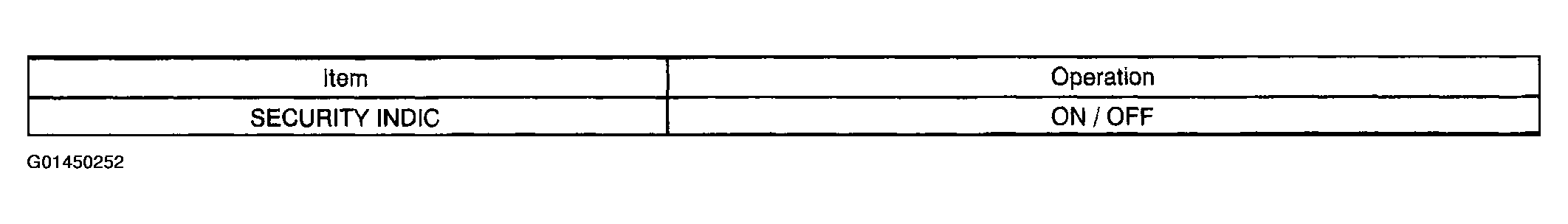

TRANSPONDER KEY ECU:

Fig 3: Transponder Key ECU - Active Test Using Hand-Held Tester Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
