Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODE TABLE

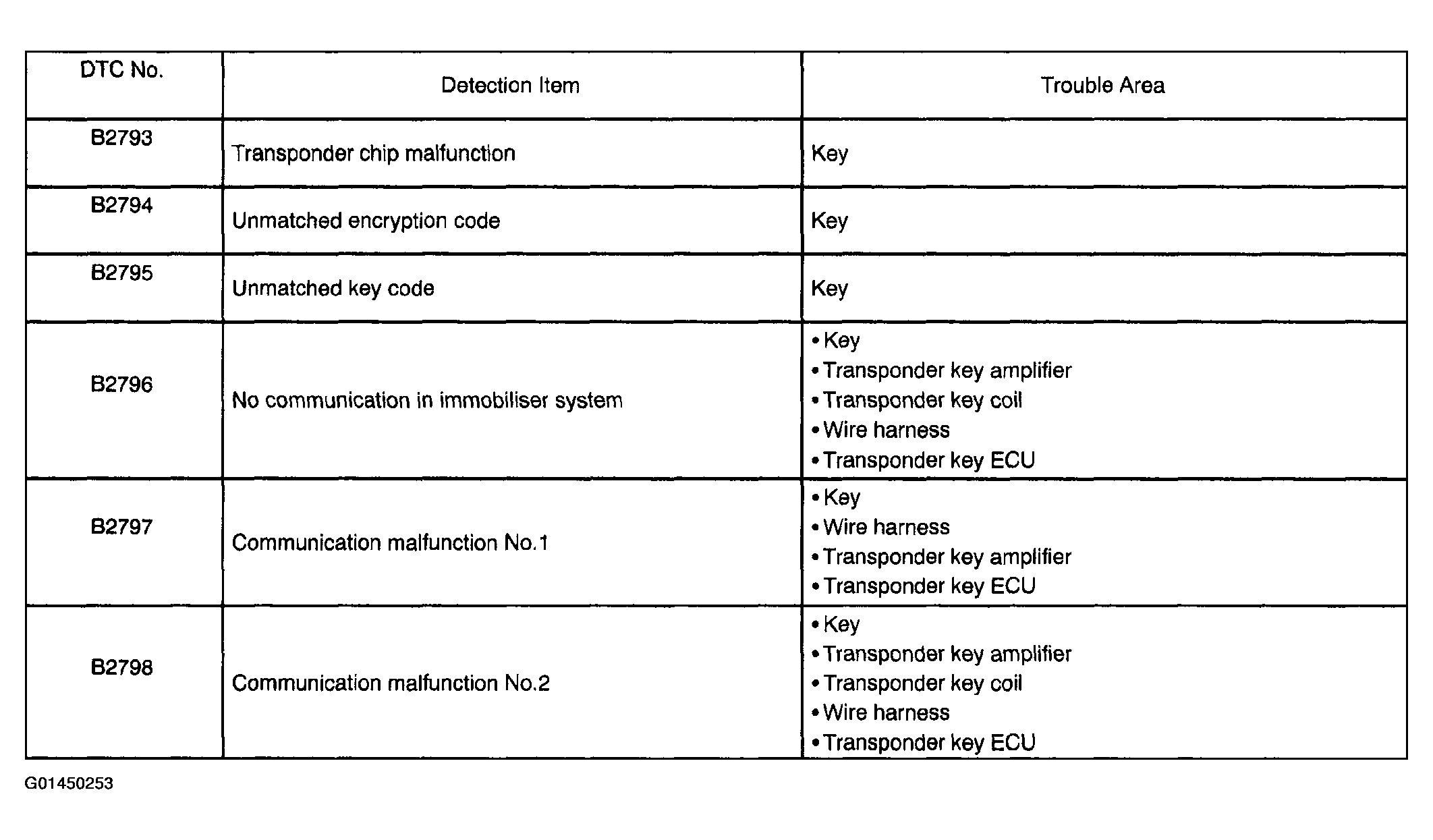

| DTC | Description |
|---|---|
| DTC B2793 | TRANSPONDER CHIP MALFUNCTION |
| DTC B2794 | UNMATCHED ENCRYPTION CODE |
| DTC B2795 | UNMATCHED KEY CODE |
| DTC B2796, DTC B2798 | NO COMMUNICATION IN IMMOBILISER SYSTEM |
| DTC B2797 | COMMUNICATION MALFUNCTION NO.1 |

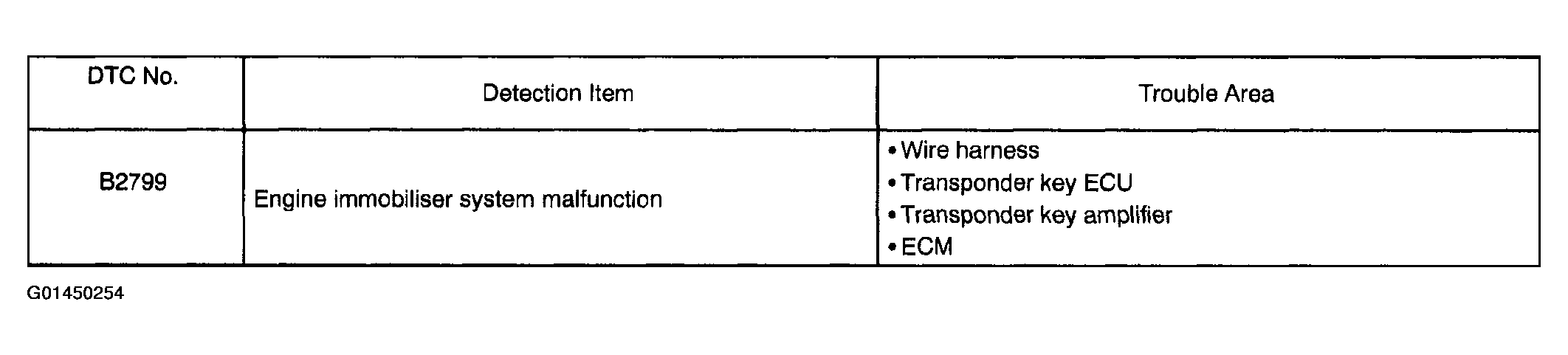

| DTC B2799 | ENGINE IMMOBILISER SYSTEM MALFUNCTION |
- TRANSPONDER KEY ECU DIAGNOSTIC TROUBLE CODE TABLE
- ECM DIAGNOSTIC TROUBLE CODE TABLE NOTE: The diagnostic trouble code for the immobilizer system is specified. If other codes are output, *** a check in the diagnostic trouble code chart of the engine control system.
