Tire Pressure Monitor Valve: Disposal

HINT

The tire pressure monitor valve sub-assy is powered by a lithium battery. When replacing and disposing the tire pressure monitor valve sub-assy, remove the battery and dispose it correctly.

1. DISPOSE OF TIRE PRESSURE MONITOR VALVE SUB-ASSY
   1. Insert the tip of a screwdriver into the clearance and pry off the cover. Remove the back cover.

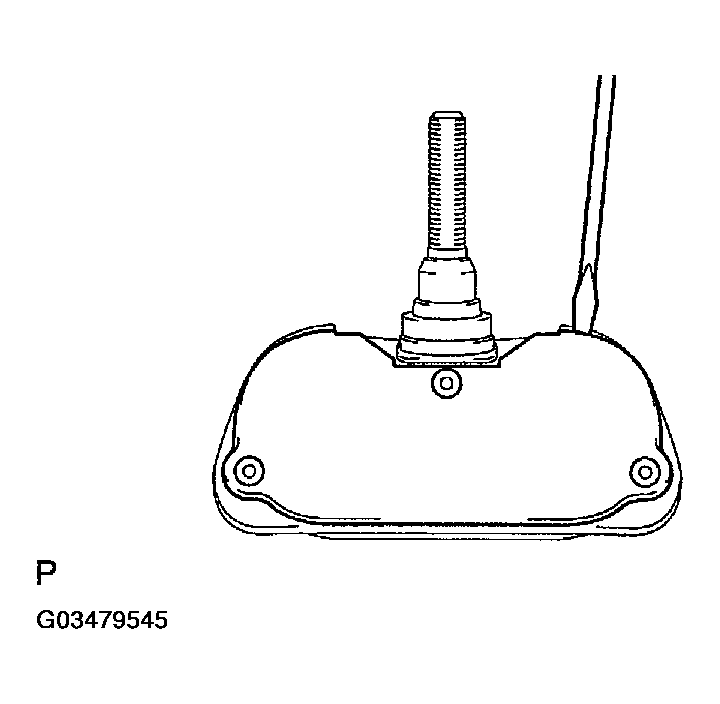

      Fig 1: Prying Off Cover Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. The battery and base board covered with silicone resin are exposed. While taking out the battery, cut off the 2 terminals which connects the battery and base board.

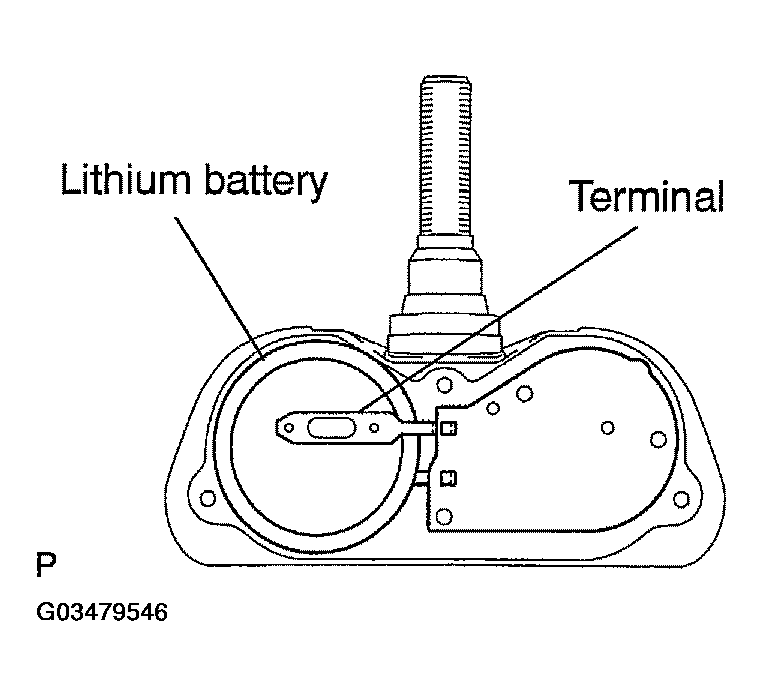

   Fig 2: Cutting Off Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
