Oil Cooler: Remove

  1. Remove front bumper cover. See Figure.
  2. Drain automatic transaxle fluid. See DRAINING & REFILLING  in LUBRICATION.

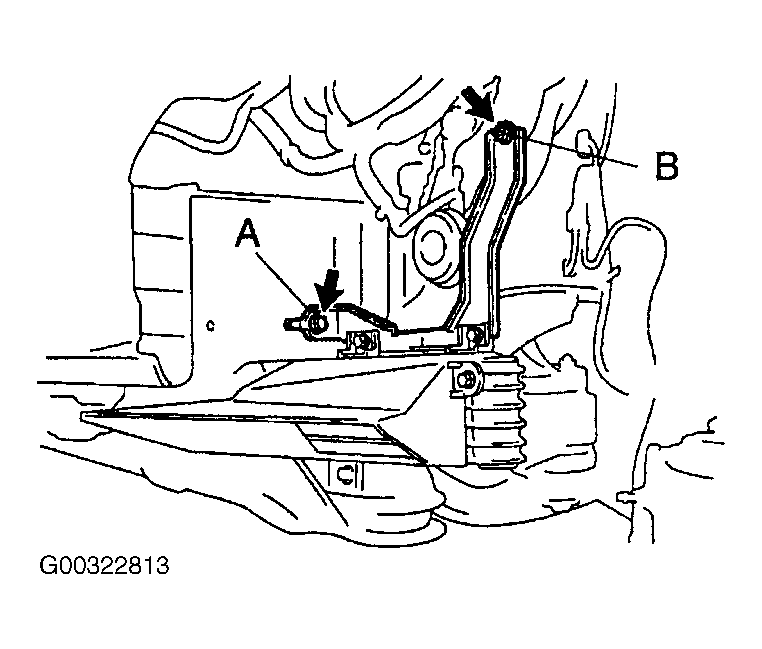

  3. Disconnect oil cooler hoses and Remove bolt "A", nut "B" and oil cooler. See Figure.
