Seat Belt Tension Reducer System: Location

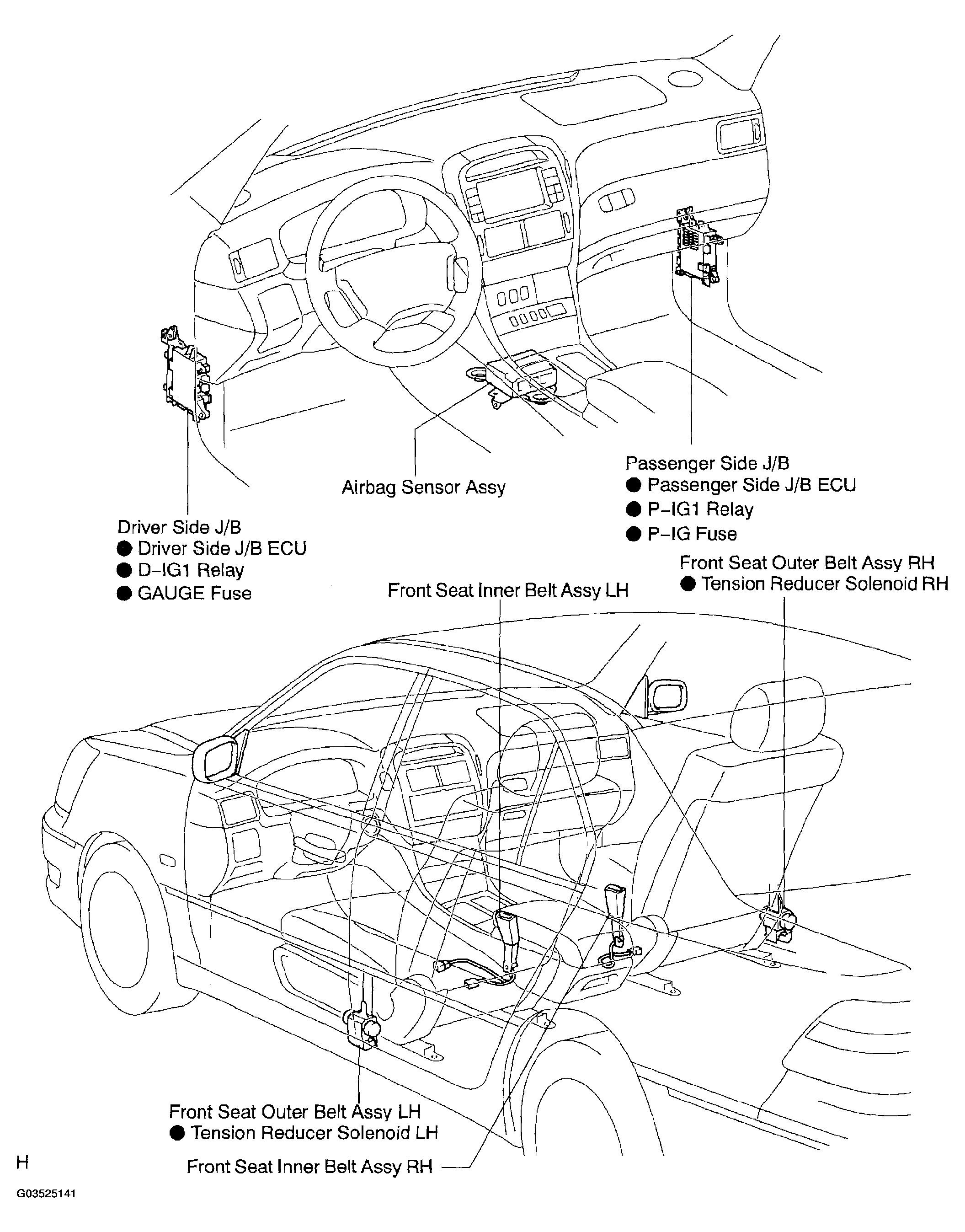

Fig 1: Locating Seat Belt Tension Reducer System Components Position

G03525141

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
