Rear Seat Belt With PRETENSIONER: Components

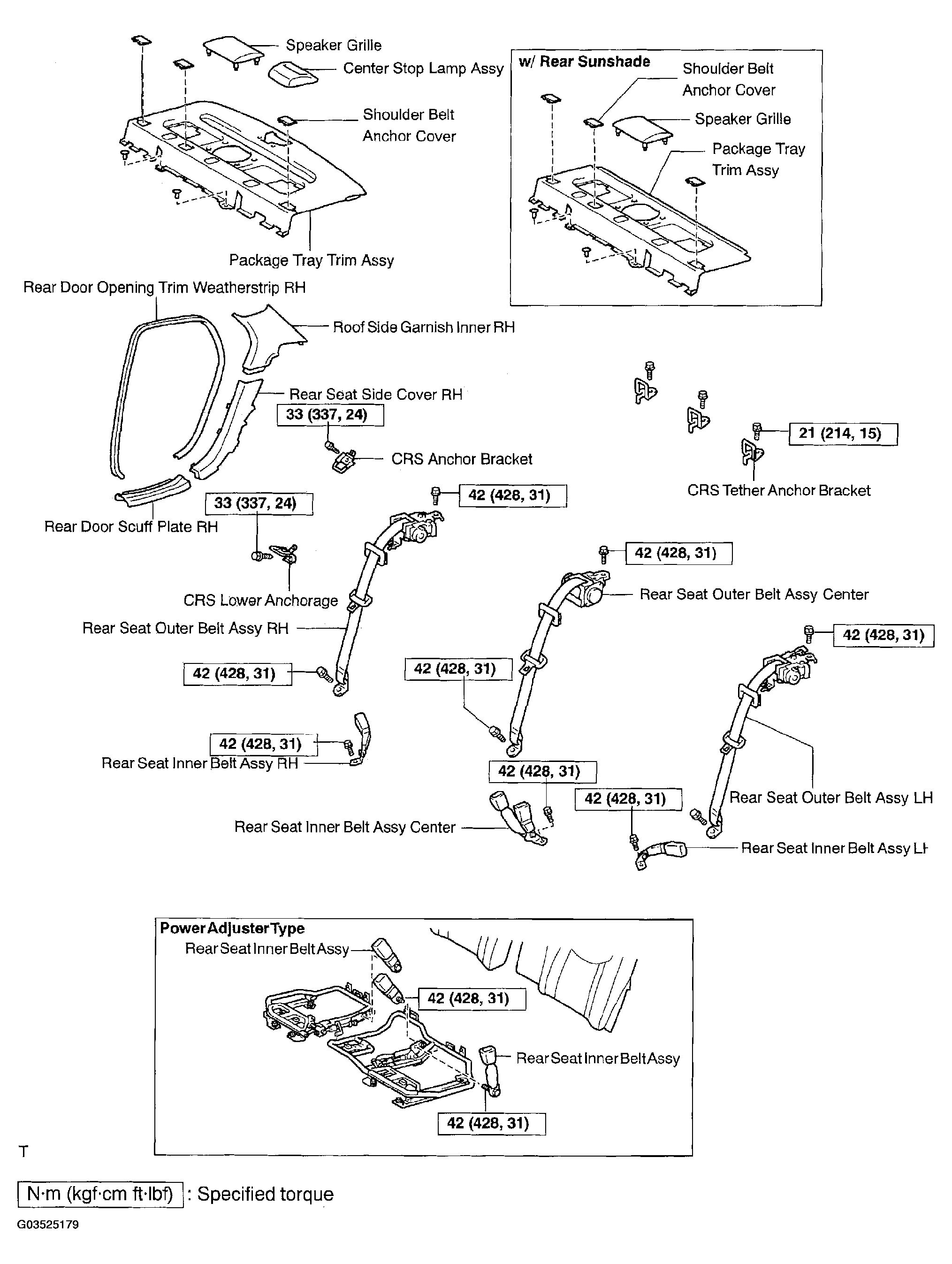

Fig 1: Exploded View Of Rear Seat Belt Components And Torque Specifications

G03525179

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
