Emission Control System (3MZ-FE): Location

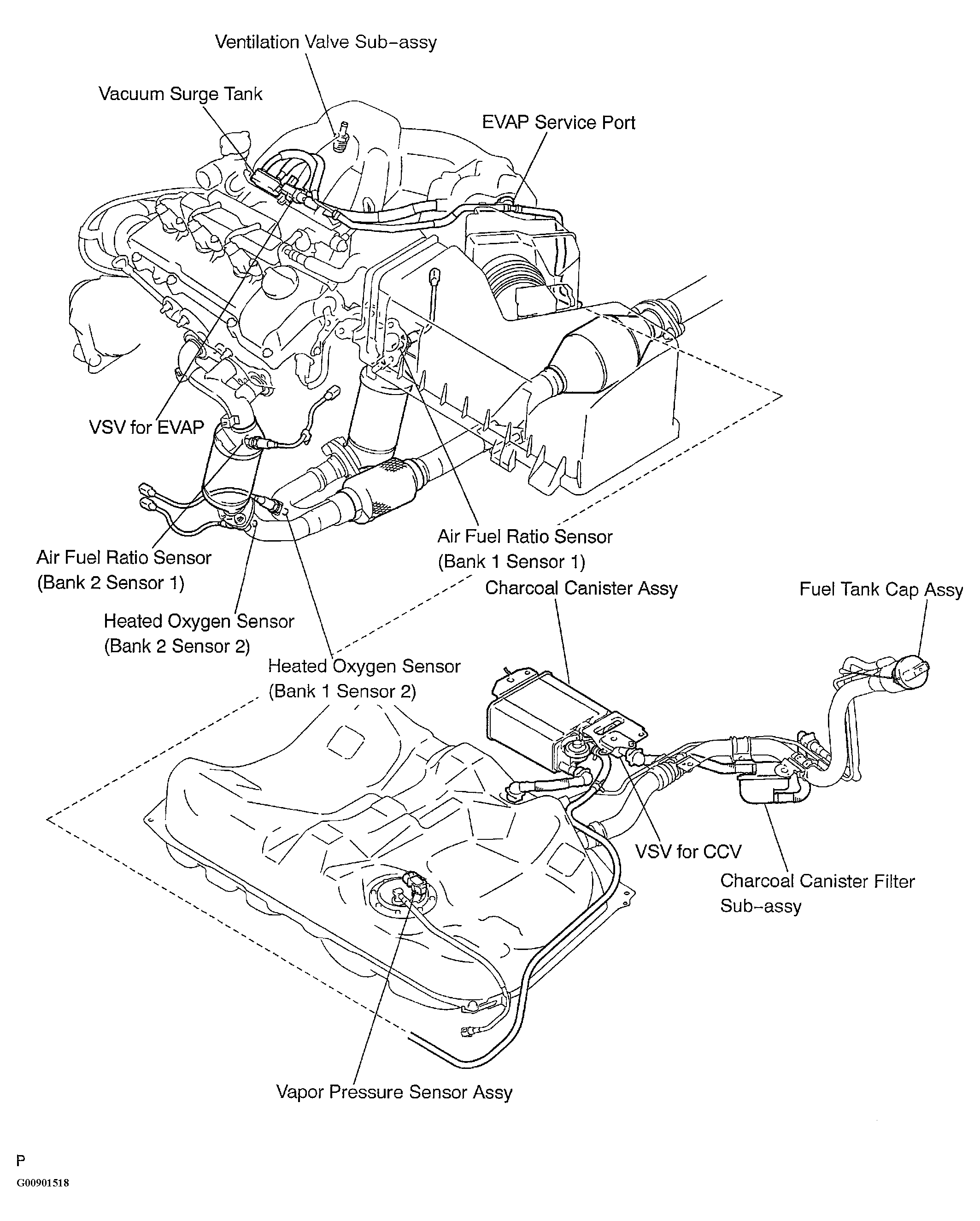

Fig 1: Identifying Emission Control System (3MZ-FE) Component (1 Of 2)
G00901518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

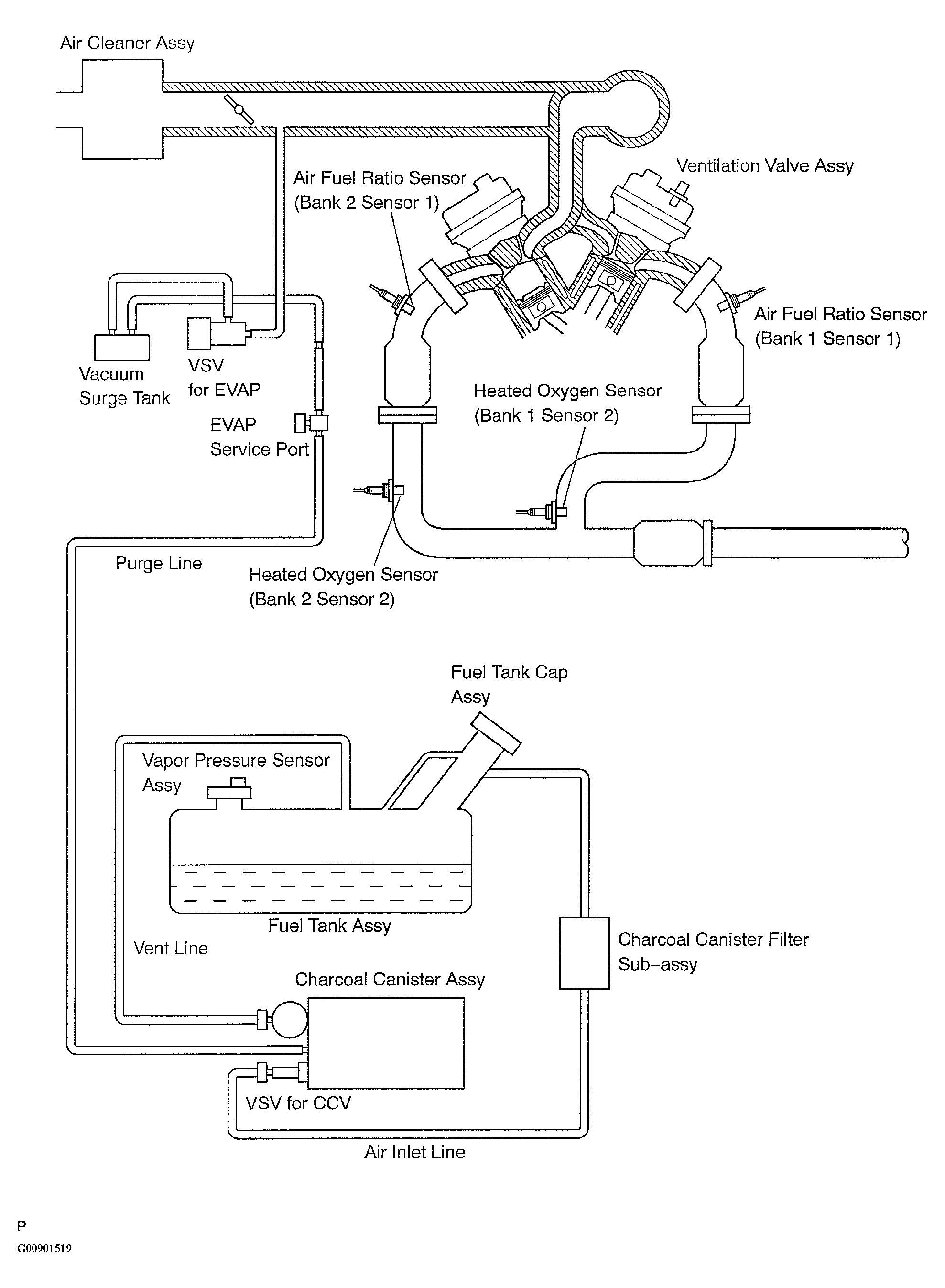

Fig 2: Identifying Emission Control System (3MZ-FE) Component (2 Of 2)
G00901519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
