Diagnostic Trouble Code Table

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

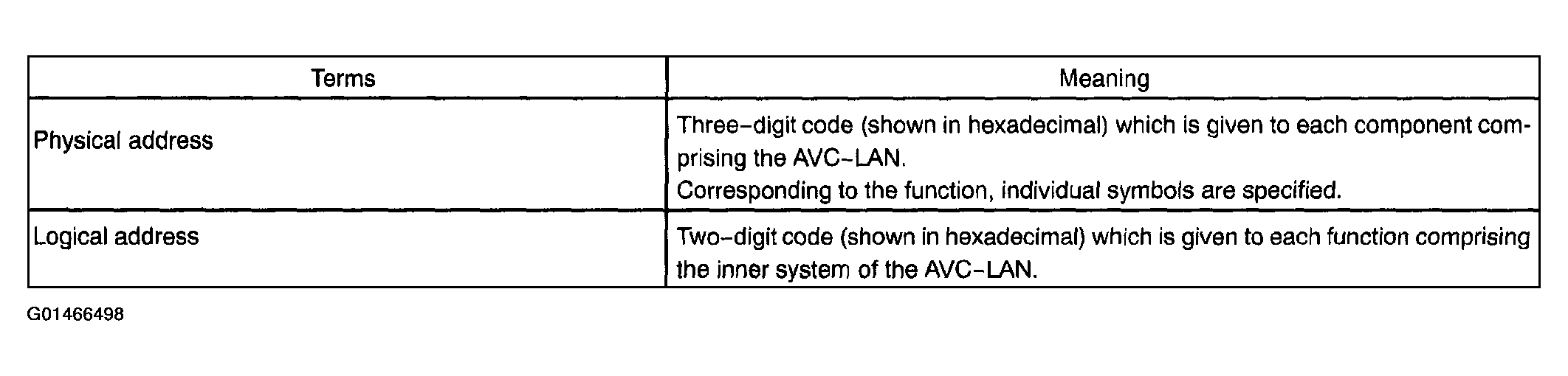

Fig 1: Physical Address And Logical Address Explanation Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PHYSICAL ADDRESS: 190 RADIO RECEIVER ASSY
HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
1. Logical address: 01 (Communication control)

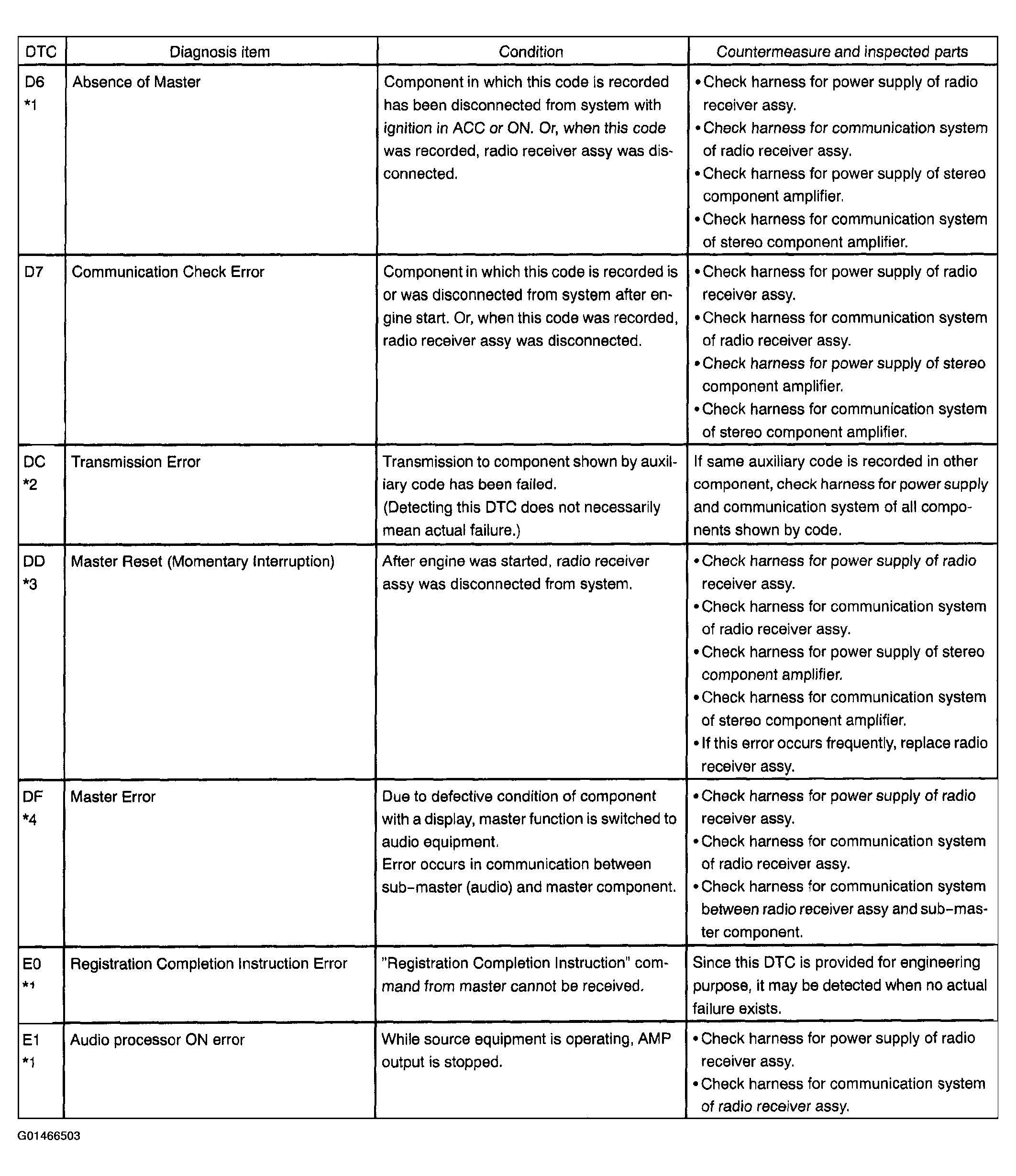

  Fig 2: Diagnostic Trouble Code Explanation Table (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

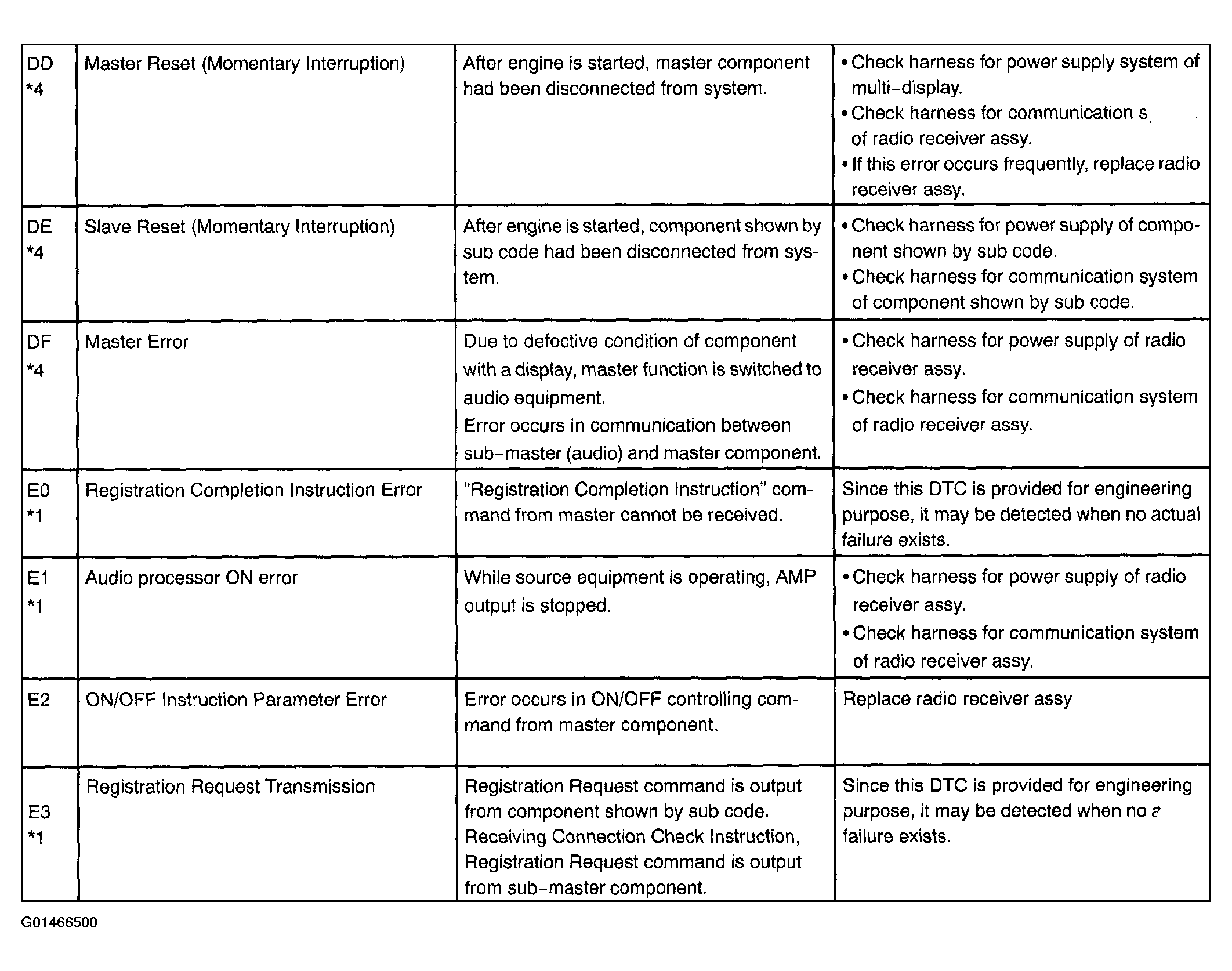

  Fig 3: Diagnostic Trouble Code Explanation Table (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 61 (Cassette switch)

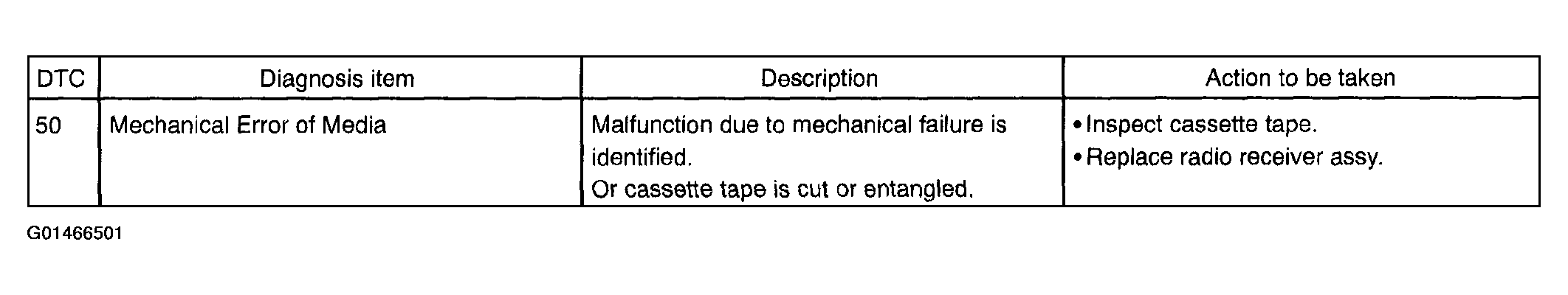

  Fig 4: DTC 50 Diagnostic Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Logical address: 63 (CD player)

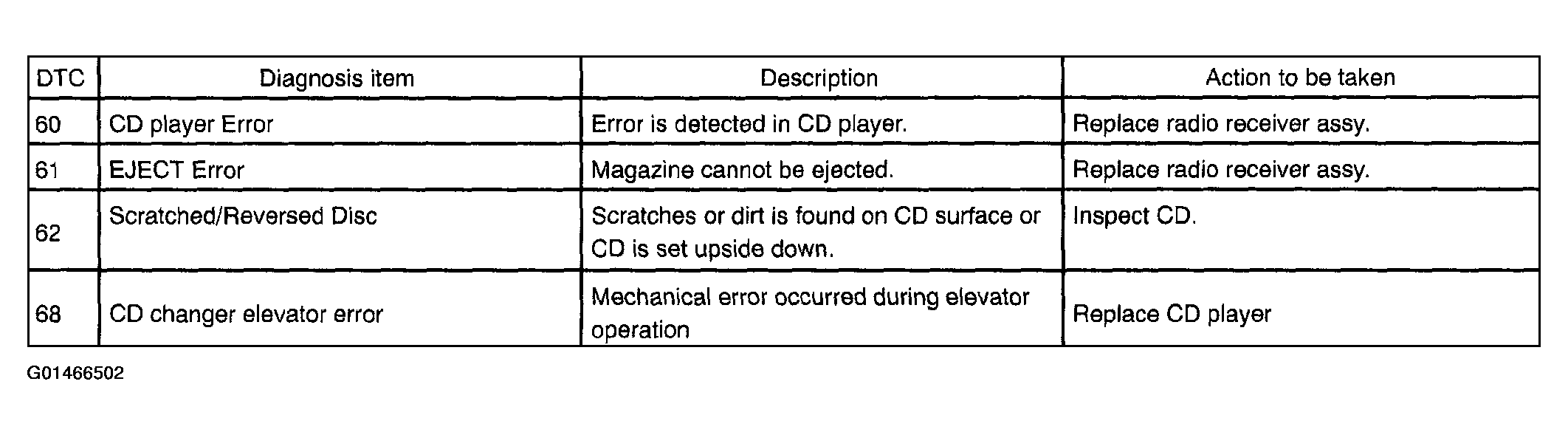

Fig 5: DTC 60, 61, 62 And 68 Diagnostic Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code may be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

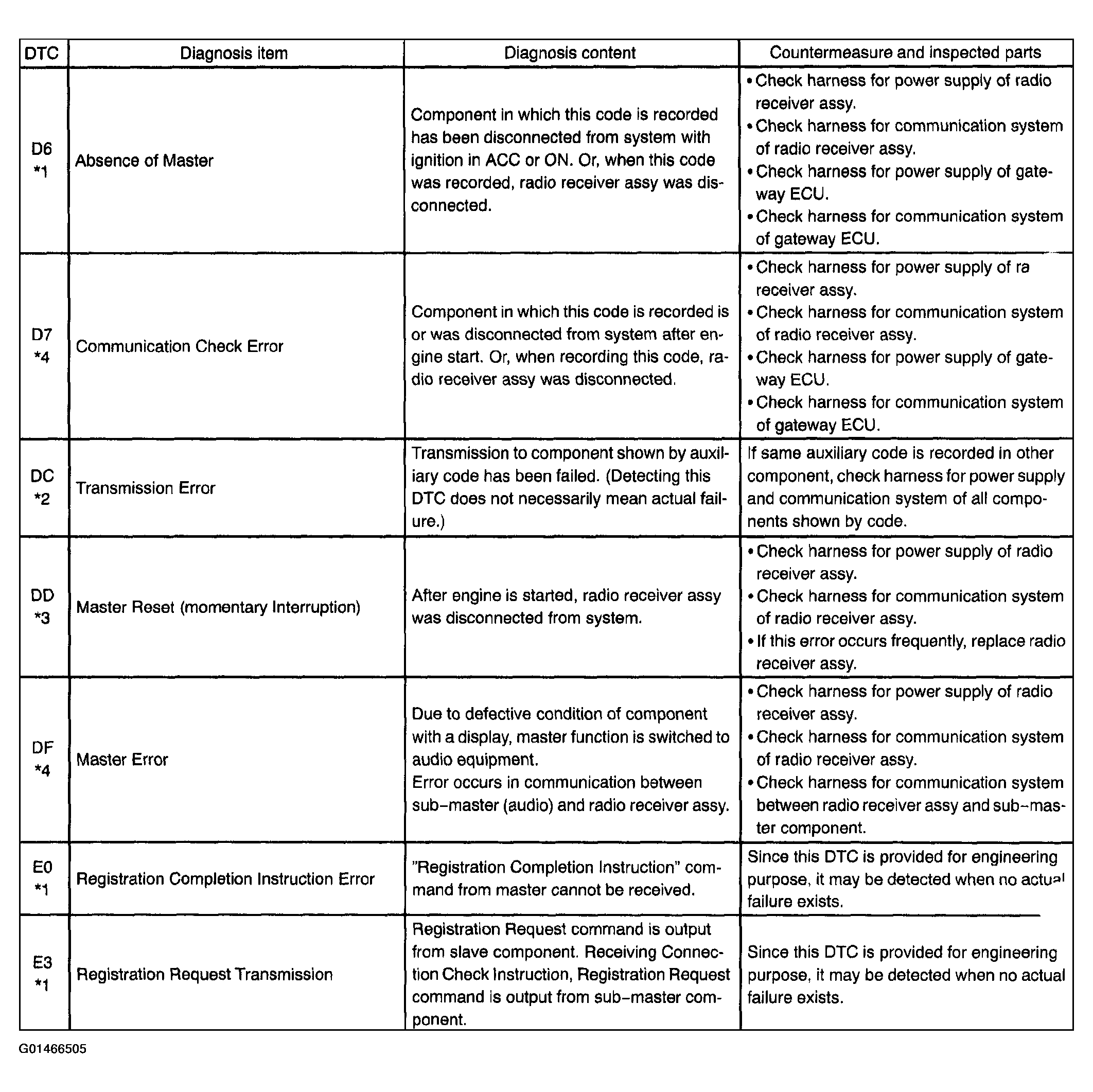

Fig 6: Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NETWORK GATEWAY ECU (Physical address: 1C6)
HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

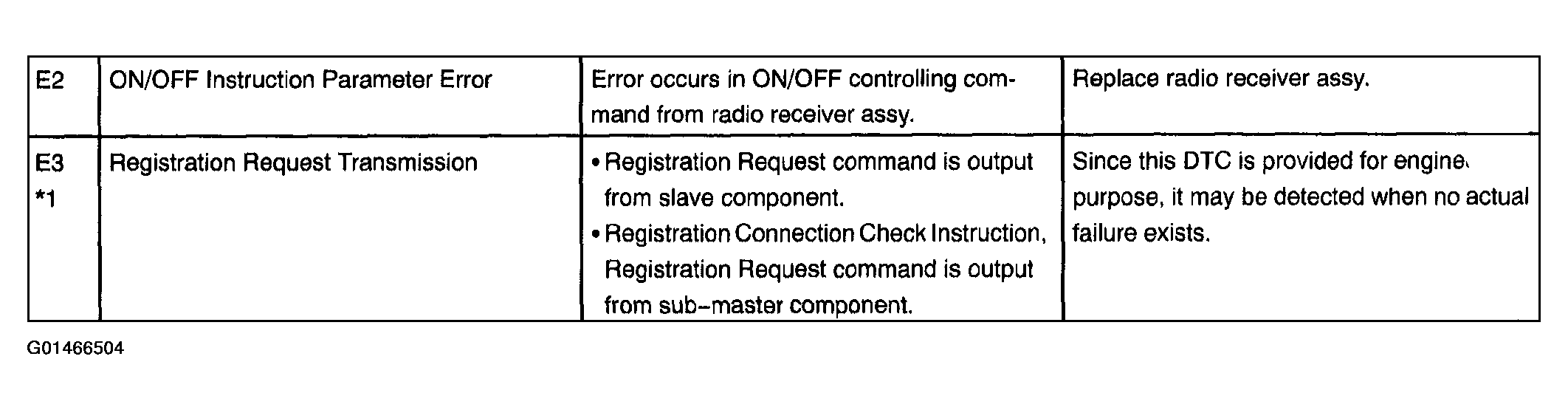

Fig 8: Logical Address: 01 (Communication Control) Diagnostic Trouble Code Table
