Heater Main Relay: Inspection

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE THESE PARTS:
1. Front door scuff plate LH
2. Cowl side trim LH
3. Lower finish panel
4. Lower LH insert (See REMOVAL )
REMOVE HEATER MAIN RELAY
1. Remove the 3 instrument panel junction block set bolts.

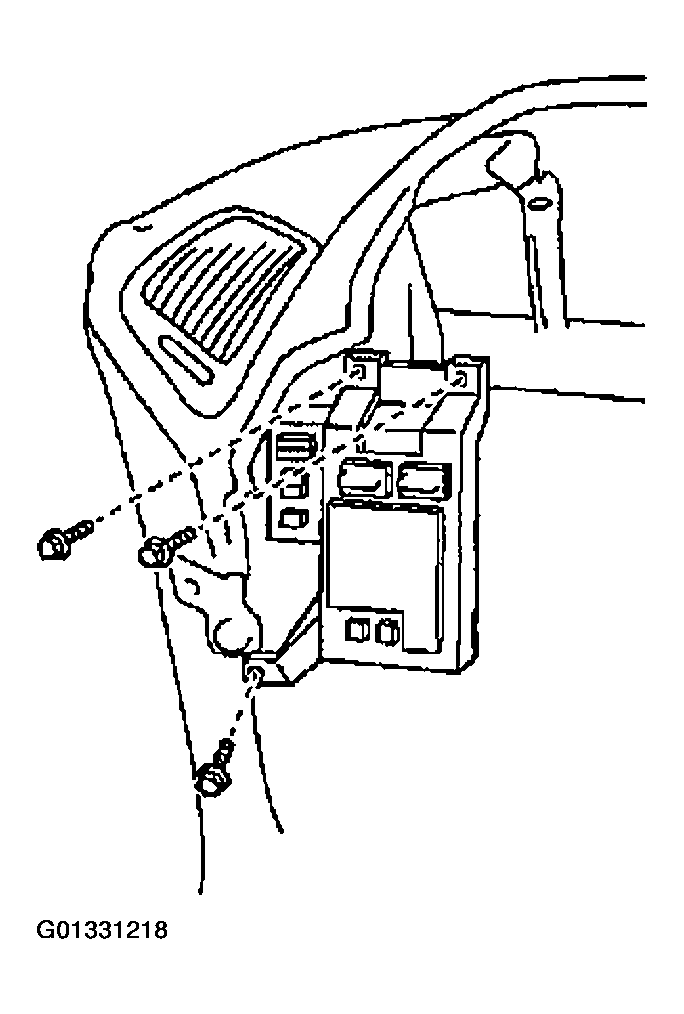

  Fig 1: Removing Instrument Panel Junction Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the heater main relay from relay block No.1.

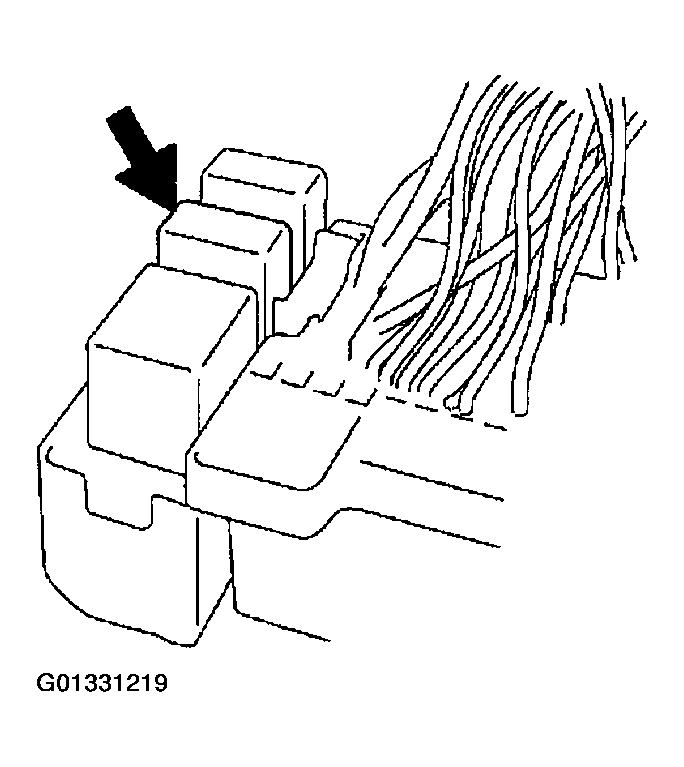

Fig 2: Removing Heater Main Relay From Relay Block No.1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

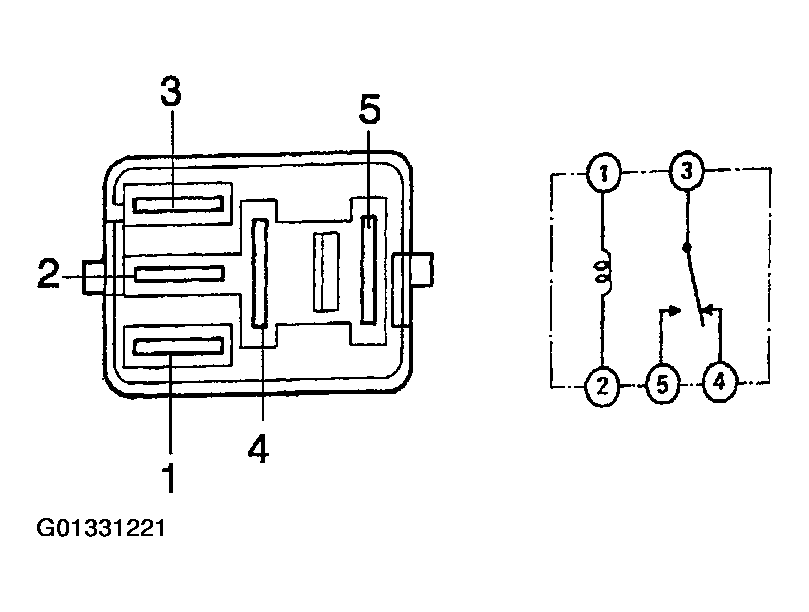

INSPECT HEATER MAIN RELAY CONTINUITY

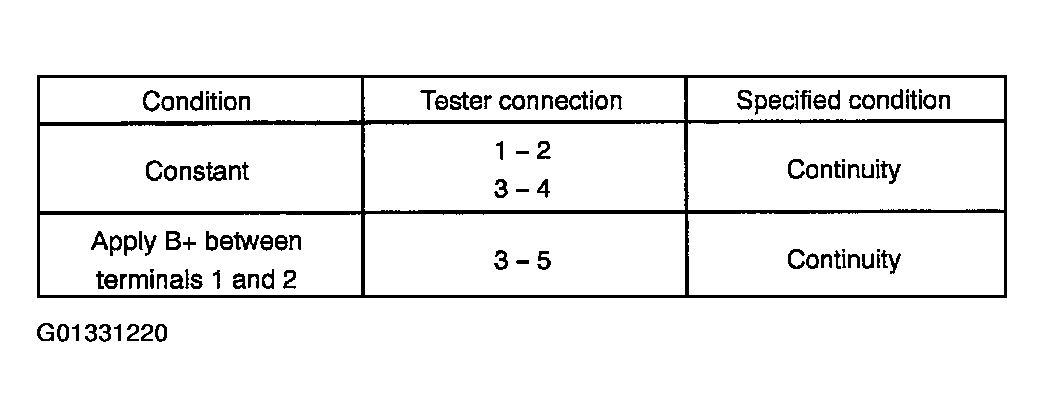

Fig 3: Heater Main Relay Continuity Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Inspecting Heater Main Relay Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If continuity is not as specified, replace the relay.
INSTALL HEATER MAIN RELAY TO RELAY BLOCK NO.1
INSTALL INSTRUMENT PANEL JUNCTION BLOCK
INSTALL THESE PARTS:
1. Lower LH insert
2. Lower finish panel
3. Cowl side trim LH
4. Front door scuff plate LH (See REASSEMBLY )
