Navigation Screen Not Stabilized (Synchronous Error): Wiring Diagram

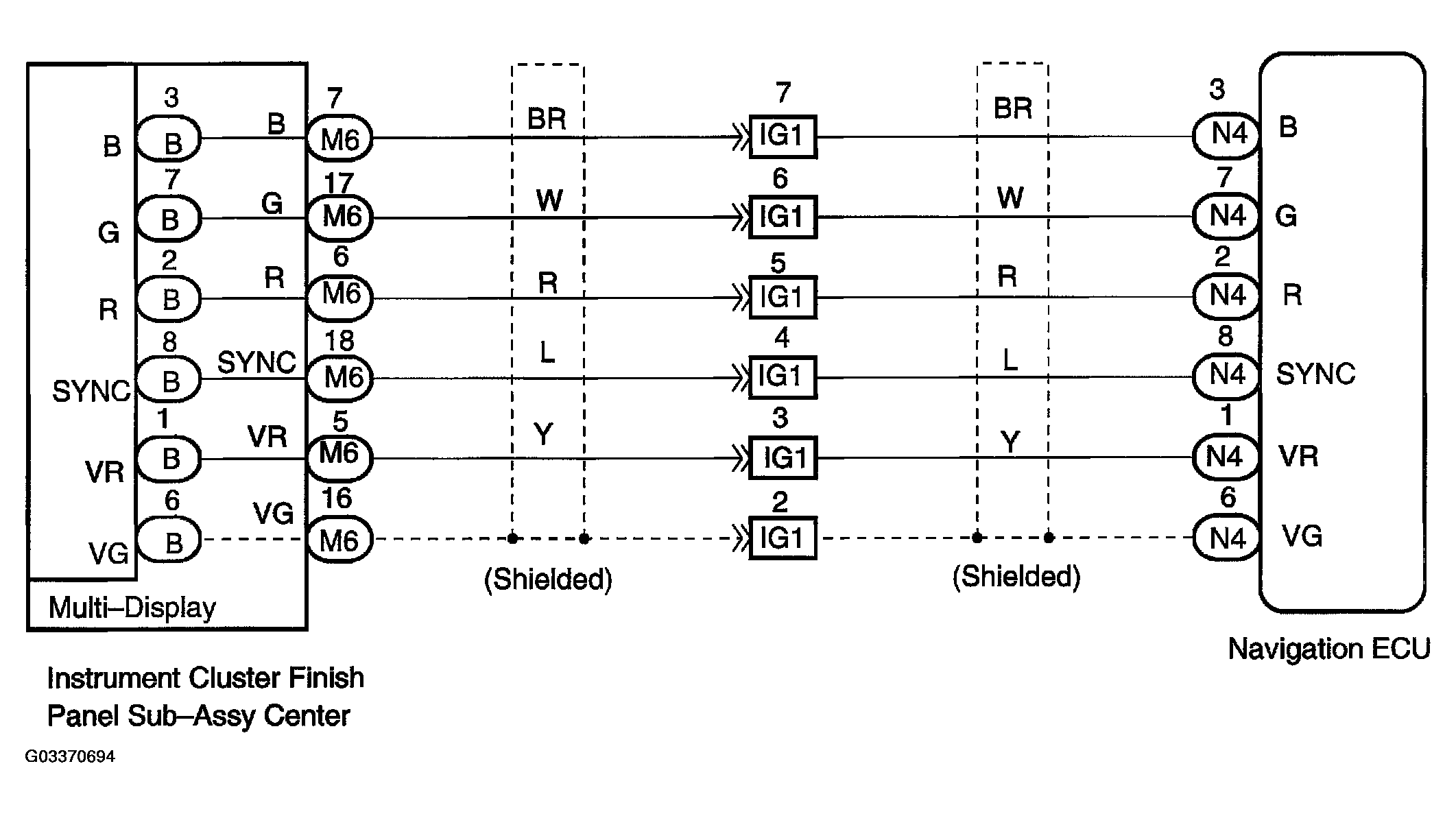

Fig 1: Navigation Screen Not Stabilized (Synchronous Error) Wiring Diagram

G03370694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
