Inspection Procedure

  1. INSPECT NAVIGATION ECU(+B, ACC, GND)
    1. Remove the navigation ECU with connectors still connected.
    2. Check voltage.
      1. Measure voltage between terminals +B, ACC and GND1 of navigation ECU under each condition, as shown in the chart.

      Voltage:

      TERMINAL SPECIFICATION

      Terminal Condition Voltage (v)
      +B <--> GND1 Constant 10-14V
      ACC <--> GND1 Turn ignition switch ACC 10-14V
    3. Check continuity.
      1. Check that the continuity exists between terminal GND1 of navigation ECU and body ground.

      Standard: Continuity exists.

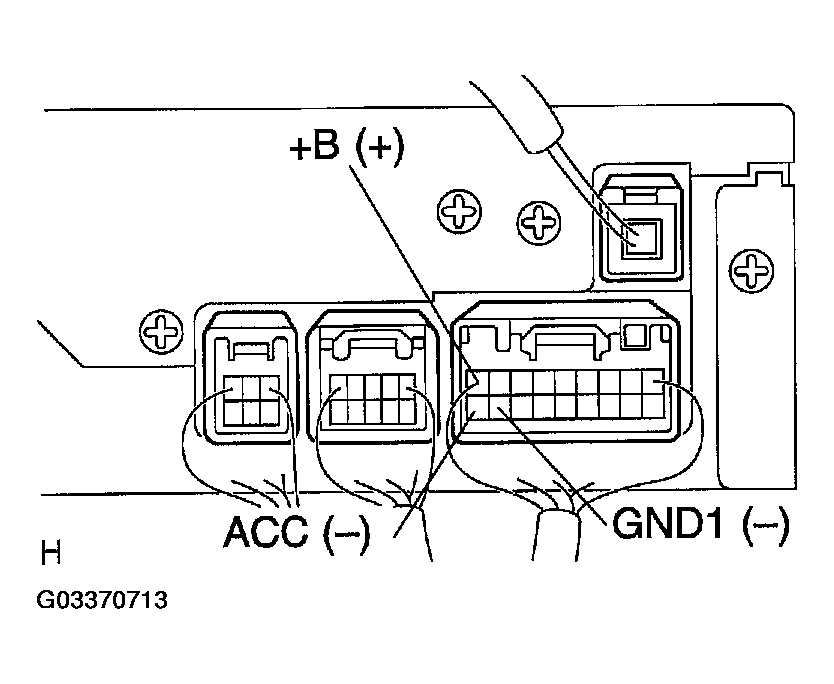

      Fig 1: Inspecting Navigation ECU (+B, ACC, GND)
      G03370713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: CHECK AND REPLACE NAVIGATION ECU
