Relay Block No. 2

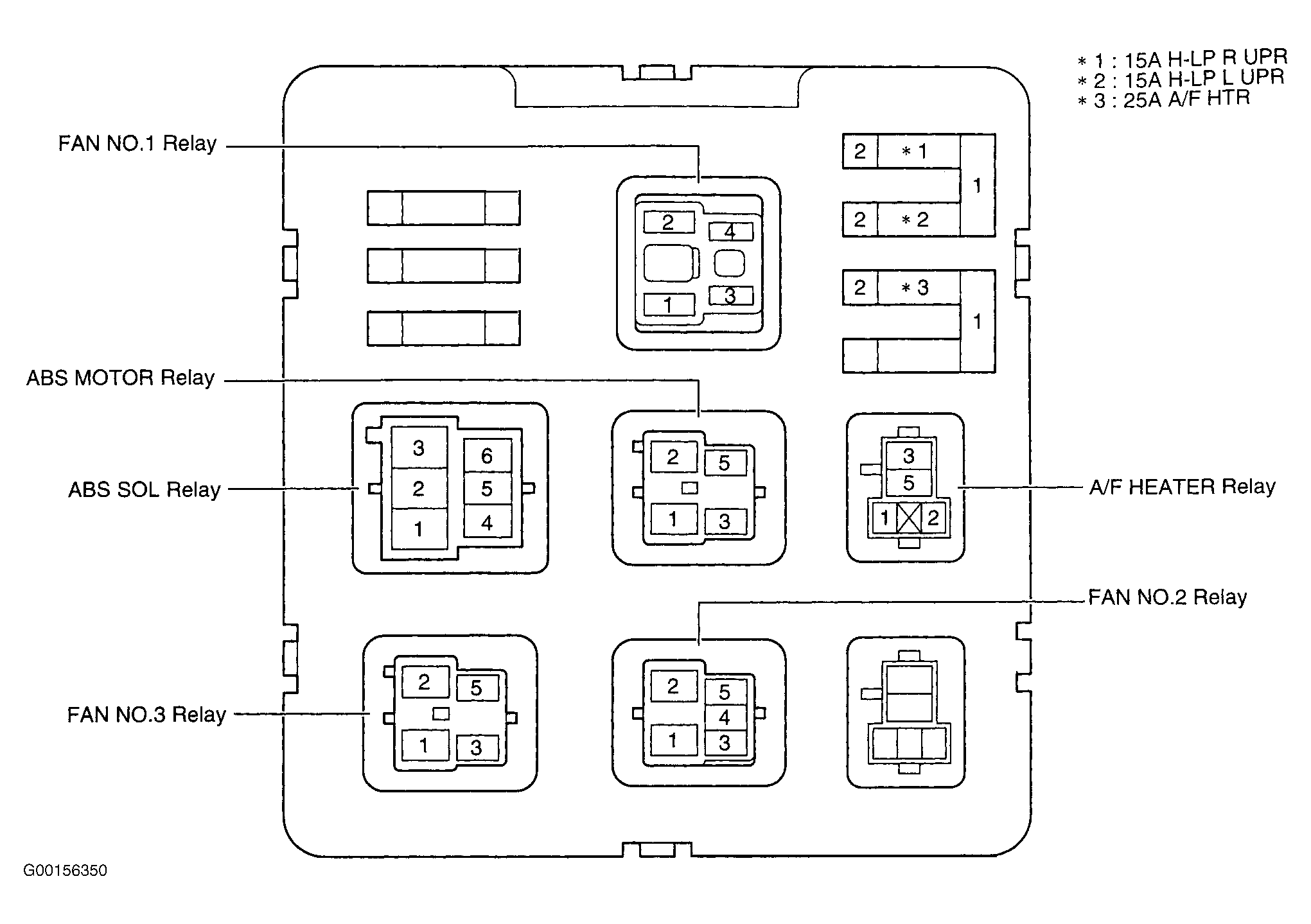

RELAY BLOCK (R/B) NO. 2 RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Fan No.3 Relay |
| ABS SOL Relay |
| ABS Motor Relay |
| Fan No.1 Relay |
| A/F Heater Relay |
| Fan No.2 Relay |
RELAY BLOCK NO. 2 FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 15A | H-LP L UPR | Headlight Multiplex Communication System |
| 15A | H-LP R UPR | Headlight Multiplex Communication System |
| 25A | A/F HTR | Engine Control and Engine Immobiliser System |
