Fuel Lid: Installation

  1. INSTALL FUEL FILLER OPENING LID

    Using a riveter, install the fuel filler opening lid with the 2 rivets to the body.

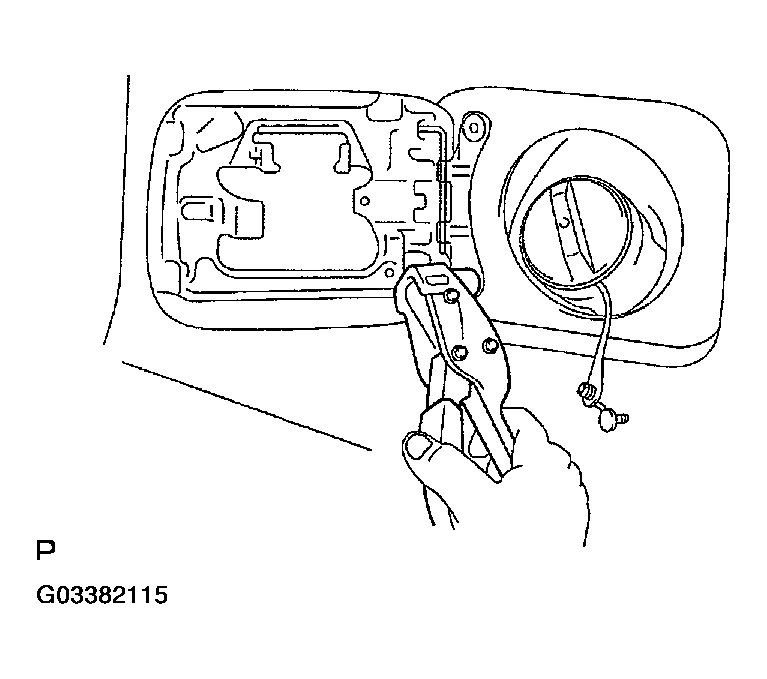

    Fig 1: Using A Riveter, Install Fuel Filler Opening Lid
    G03382115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FUEL LID OPENING SPRING
  3. INSTALL FUEL FILLER SHIELD
    1. Install the fuel tank cap.
    2. Install the fuel filler shield to the body.
    3. Install the fuel tank cap quickly.
      CAUTION: Always keep the tank cap closed when it is not required to be open. Keep all fire away during the operation.
    4. Install the spring to the fuel filler shield, as shown in the illustration.

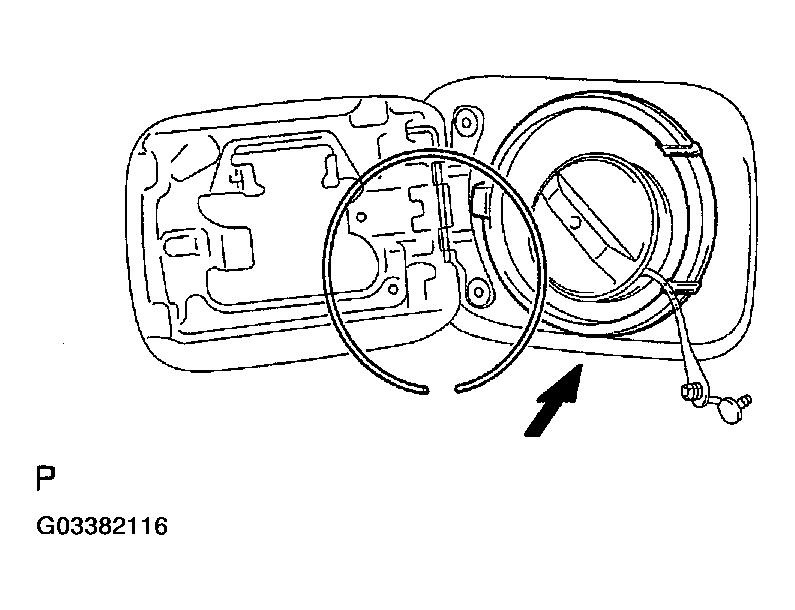

      5. Fig 2: Installing The Spring To The Fuel Filler Shield
      G03382116Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FUEL TANK CAP TETHER TO FUEL FILLER OPENING LID

    Install the fuel tank cap tether to the fuel filler opening lid.

  5. INSTALL FUEL LID LOCK CONTROL
    1. Install the retainer to the body from the outside of the vehicle.
    2. Insert the fuel lid lock control to the retainer and rotate it right to lock.

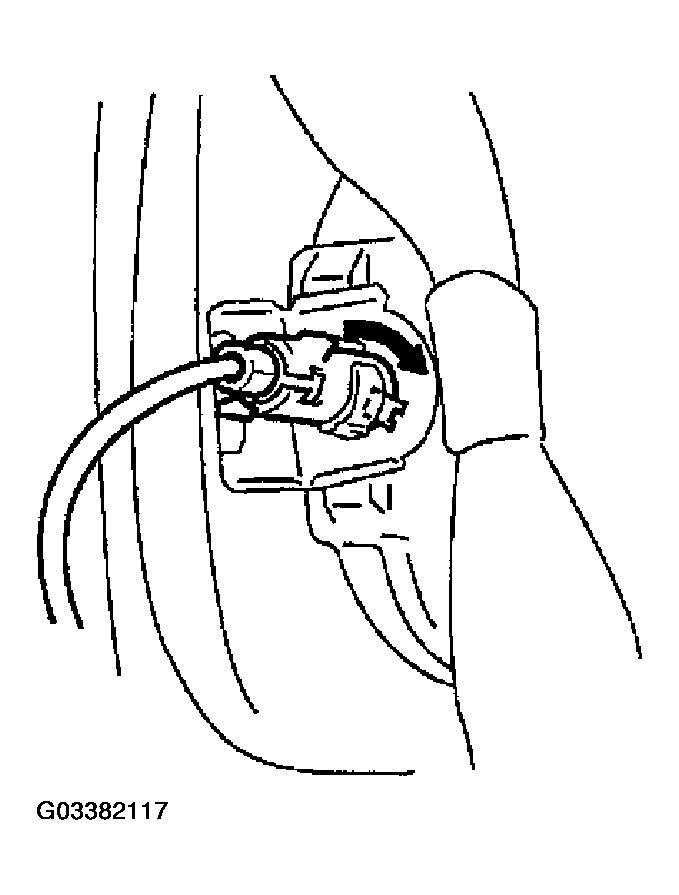

      Fig 3: Installing Fuel Lid Lock Control
      G03382117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL DECK TRIM SIDE PANEL LH
    1. Install the deck trim side panel with the 5 clips.
    2. Install the floor hook with the bolt.

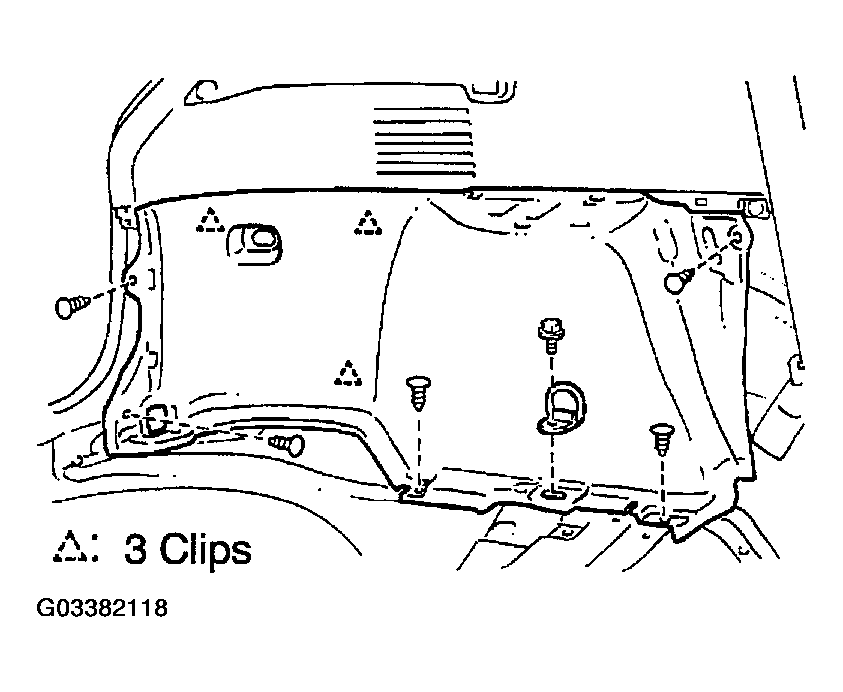

      3. Fig 4: Installing Deck Trim Side Panel
      G03382118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL ACCESSORY SOCKET
    1. Assemble the accessory socket to the accessory socket cover at the position 10 mm (0.39 in.) away from full lock position and ensure that they are temporarily locked.
    2. Align the cut-out on the body with the claw on the accessory socket cover and install the accessory socket and cover to the body.
    3. After installing them, push in the accessory socket approx. 10 mm (0.39 in.) to lock it.

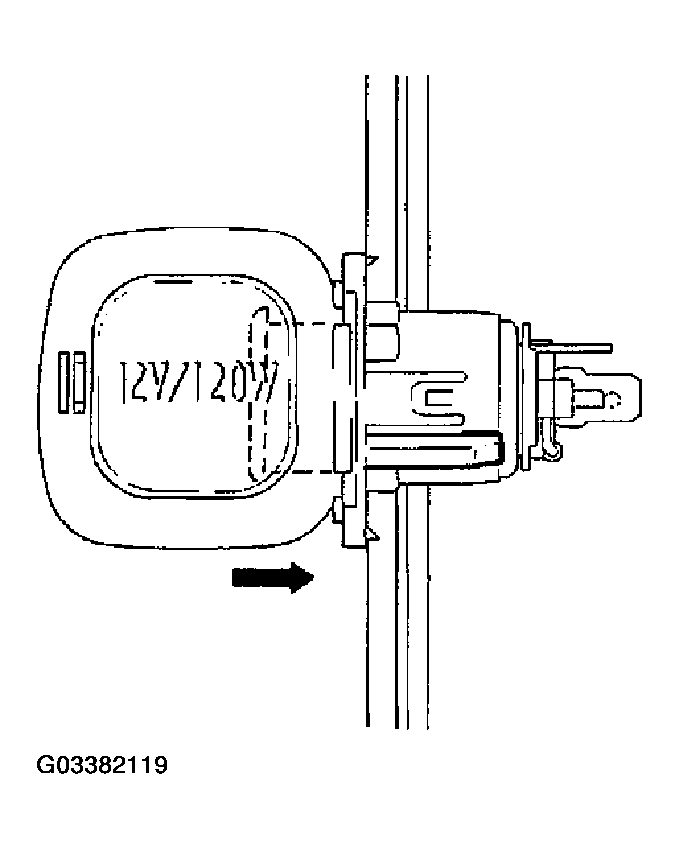

      Fig 5: Installing Accessory Socket
      G03382119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR SEAT SIDE GARNISH LH

    Install the rear seat side garnish with the 3 clips.

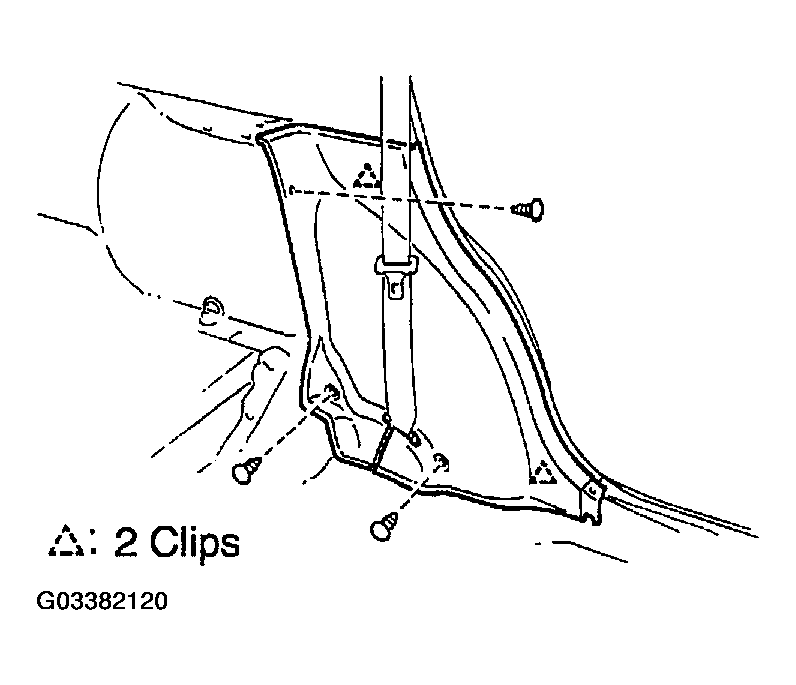

    Fig 6: Installing Rear Seat Side Garnish With 3 Clips
    G03382120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL DECK SIDE TRIM COVER LH

    Install the deck side trim cover to the deck trim side panel.

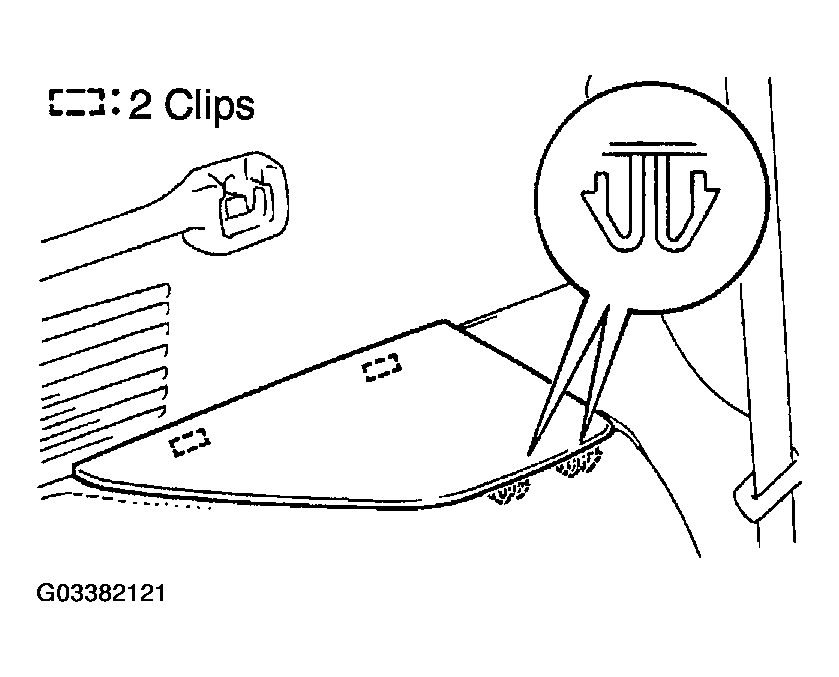

    Fig 7: Installing Deck Side Trim Cover To Deck Trim Side Panel
    G03382121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR FLOOR FINISH SIDE PLATE LH
    1. Install the rear floor finish side plate with the clip.
    2. Install the floor hook with the bolt.

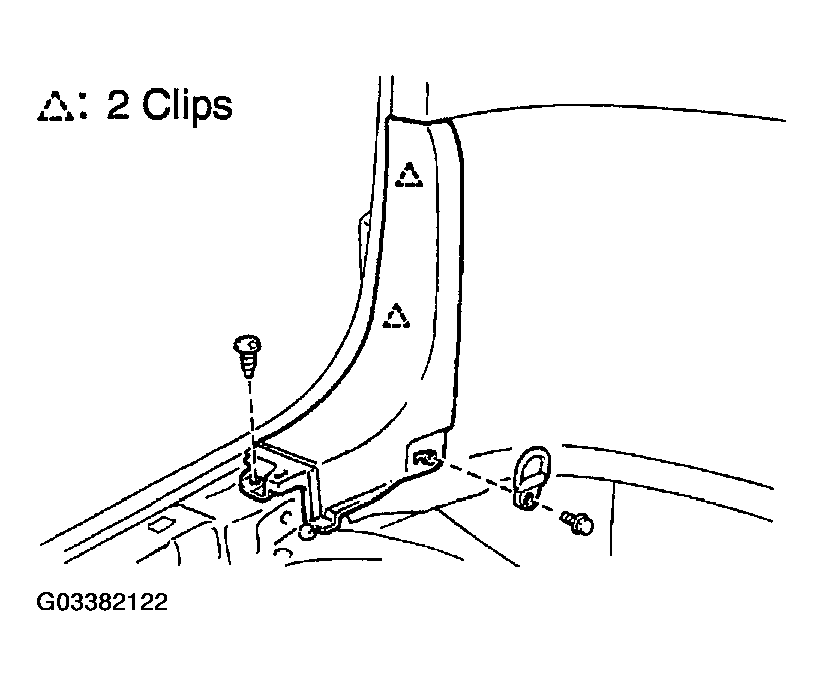

      Fig 8: Installing Rear Floor Finish Side Plate With Clip
      G03382122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL REAR FLOOR FINISH PLATE

    Install the rear floor finish plate with the 4 clips.

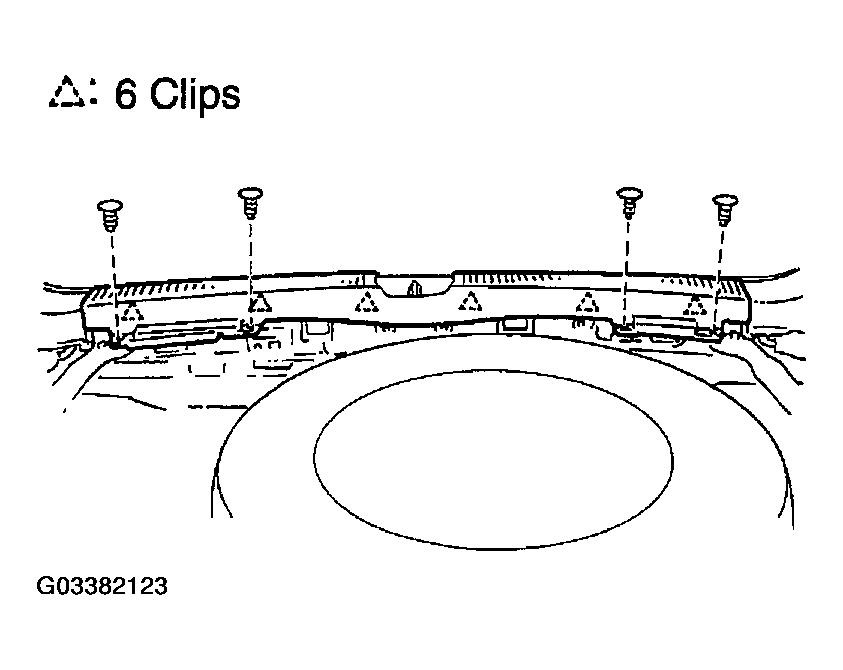

    Fig 9: Installing Rear Floor Finish Plate
    G03382123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR DOOR OPENING TRIMS
  13. INSTALL REAR DOOR INSIDE SCUFF PLATES
  14. INSTALL REAR SEAT LH (See  INSTALL REAR SEAT  )
  15. INSTALL TONNEAU COVER
  16. INSTALL DECK SIDE TRIM BOX LH

    Install the deck side trim box with the nut and 4 clips.

  17. INSTALL SPARE WHEEL COVER TRAY
  18. INSTALL LUGGAGE COMPARTMENT TRAY
  19. INSTALL NO. 3 DECK BOARD
  20. INSTALL NO. 2 DECK BOARD
  21. INSTALL DECK BOARD ASSEMBLY
    1. Install the deck board assembly with the 2 bolts.
    2. Install the front part of deck board assembly to the body.

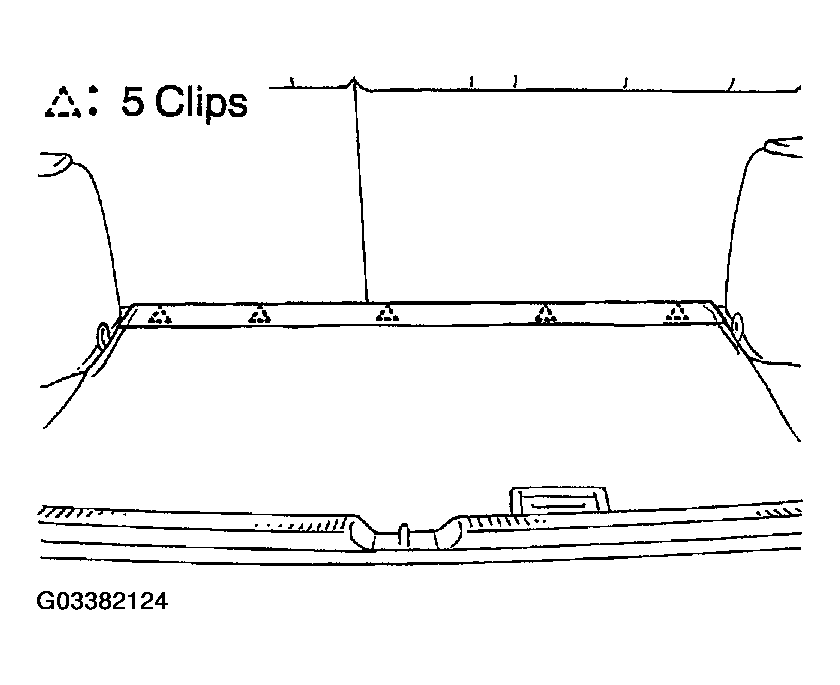

      Fig 10: Installing Deck Board Assembly
      G03382124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
