Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Rear Bumper >> Components

Rear Bumper: Components

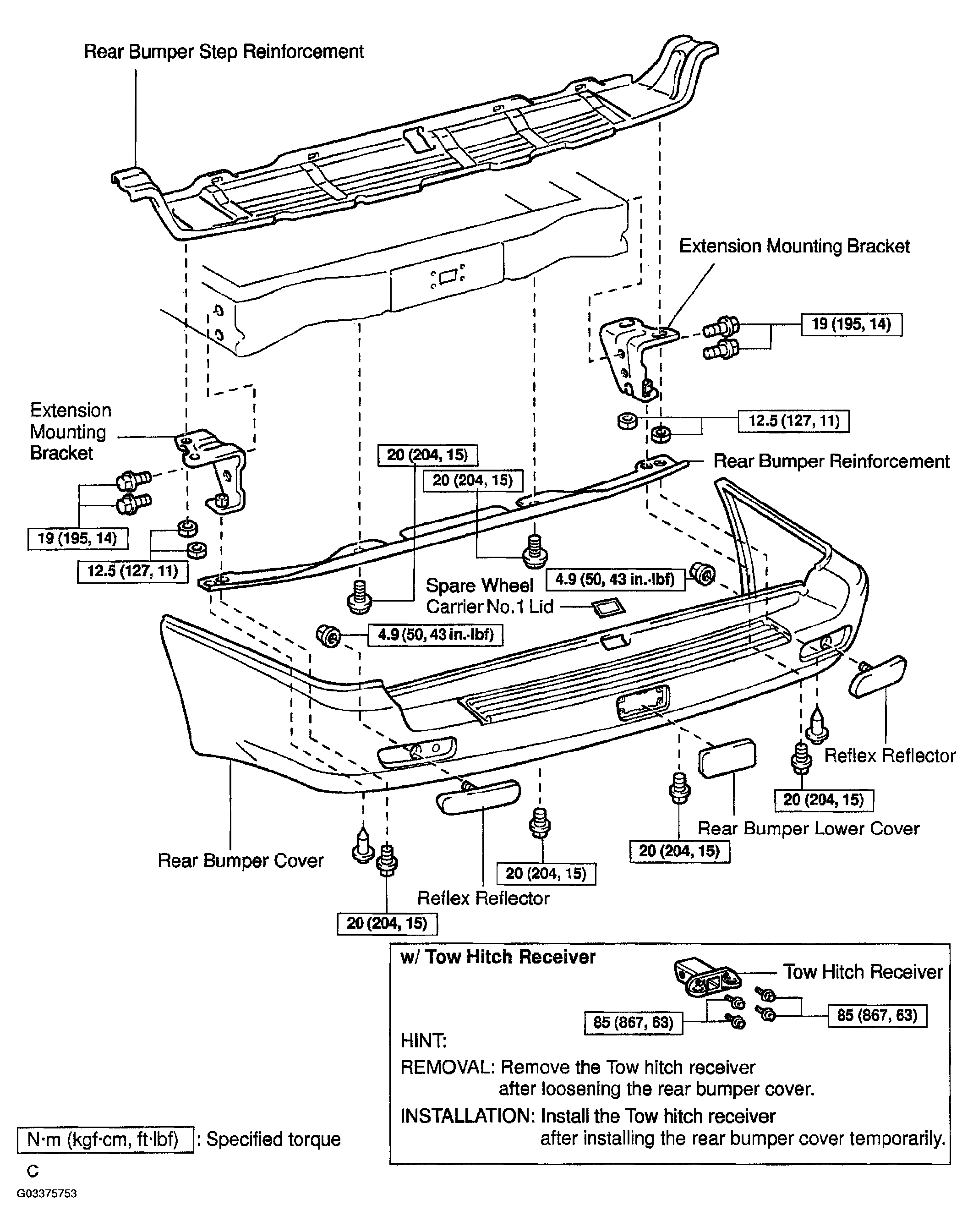

Fig 1: Identifying Rear Bumper Components

G03375753

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
