Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

RADIO RECEIVER ASSY (Except 6 Speaker)

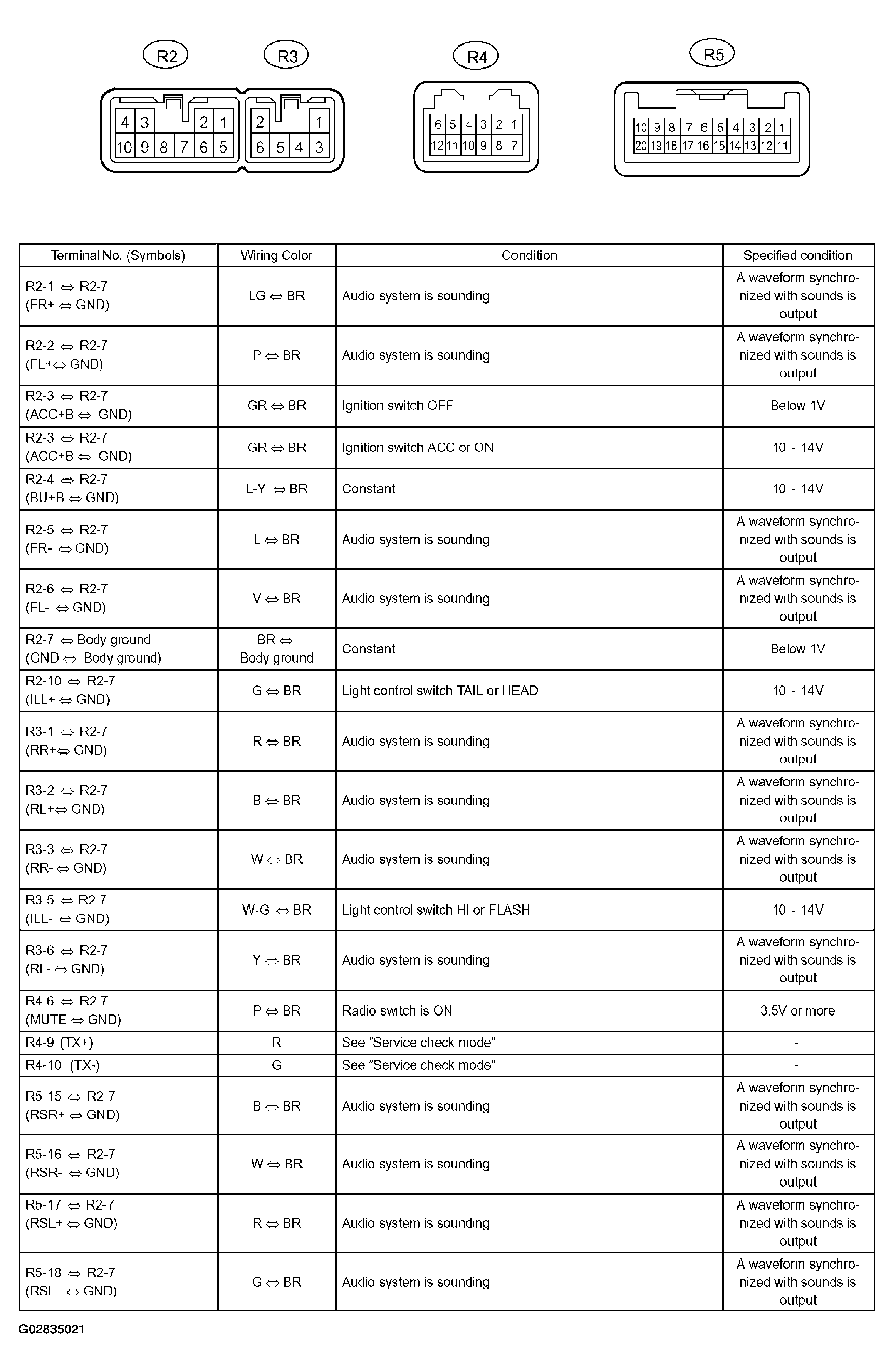

Fig 1: Identifying Terminals Of ECU (Radio Receiver Assy (Except 6 Speaker))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RADIO RECEIVER ASSY (6 Speaker)

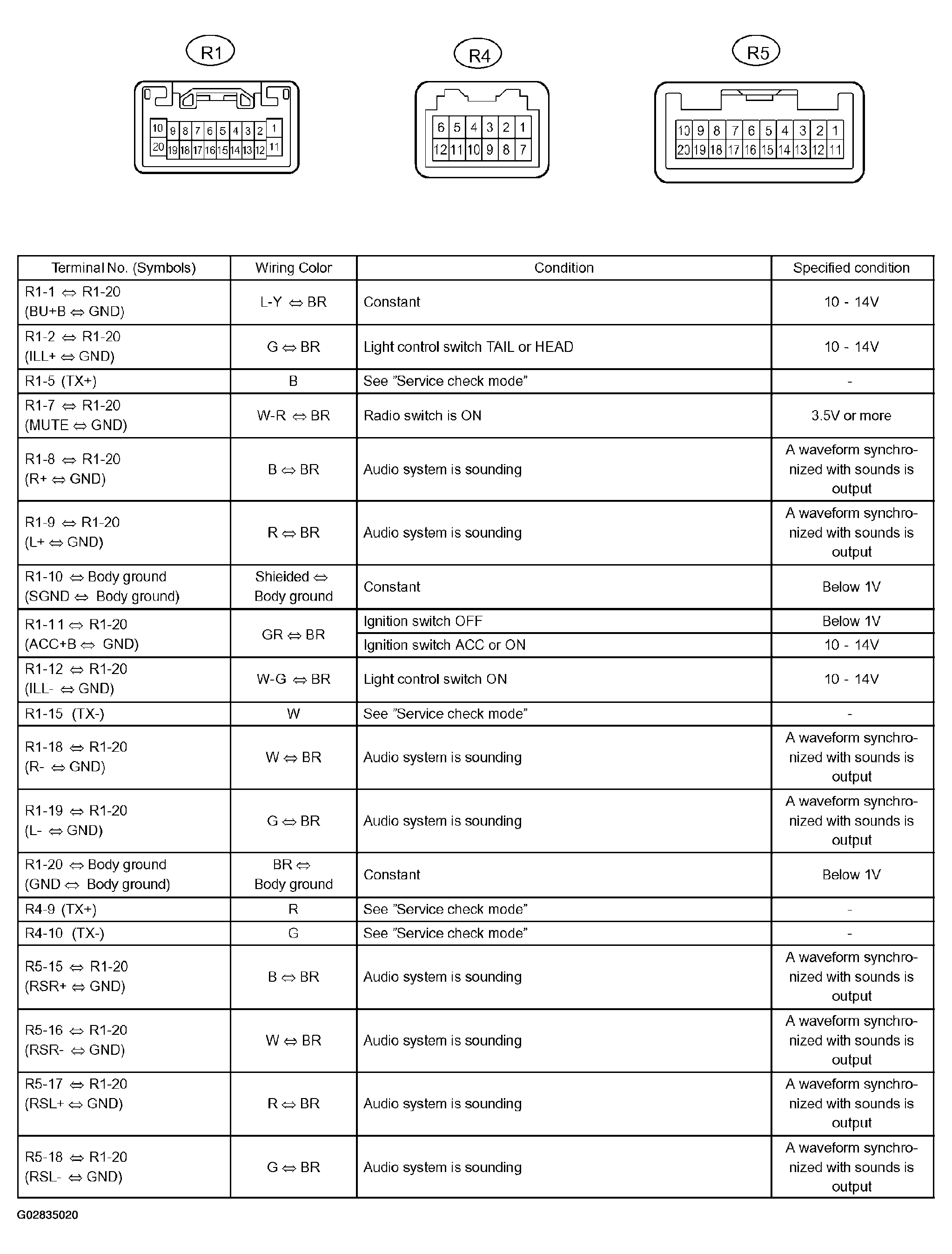

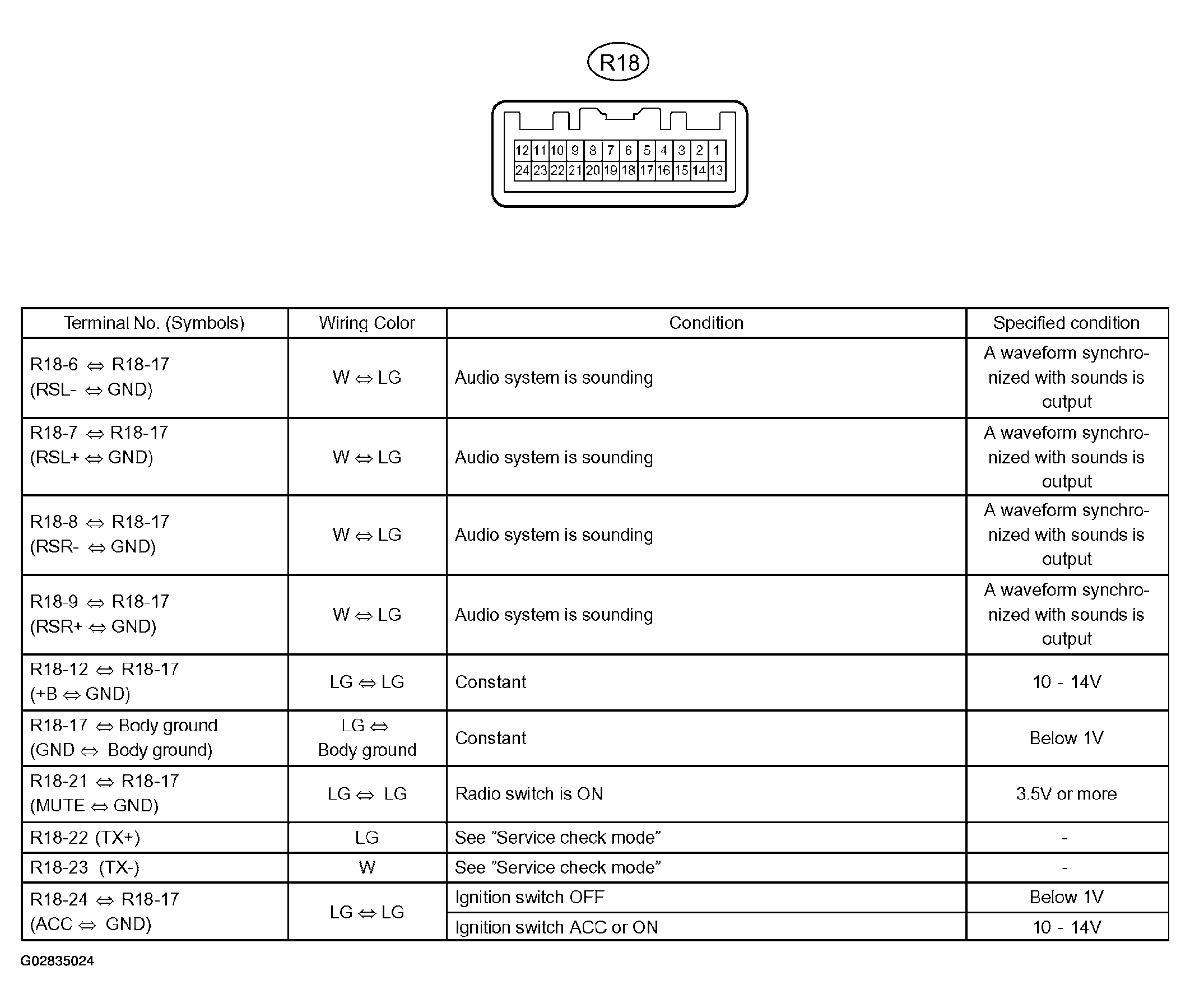

Fig 2: Identifying Terminals Of ECU (Radio Receiver Assy (6 Speaker))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY

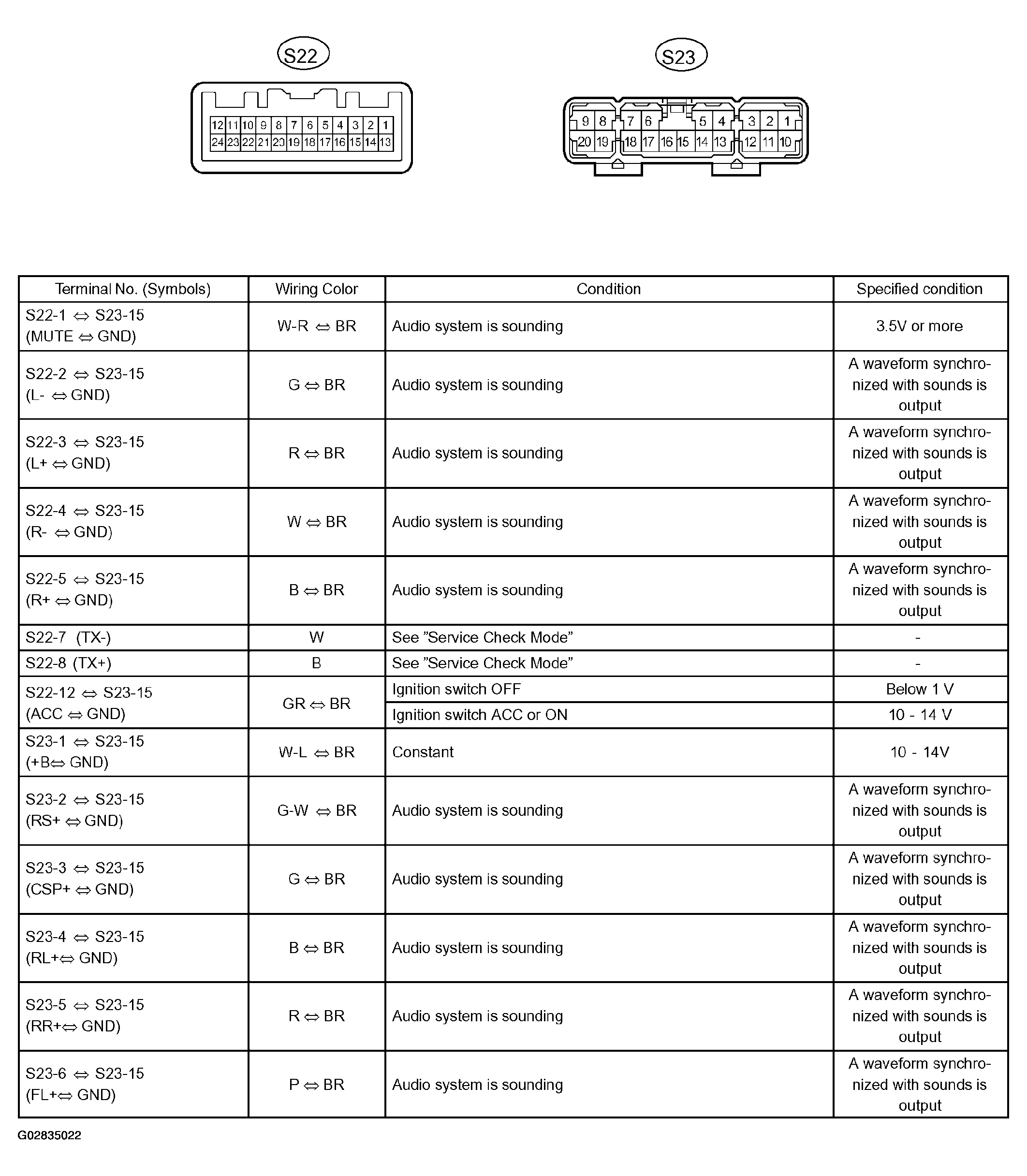

Fig 3: Identifying Terminals Of ECU (Stereo Component Amplifier Assy) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

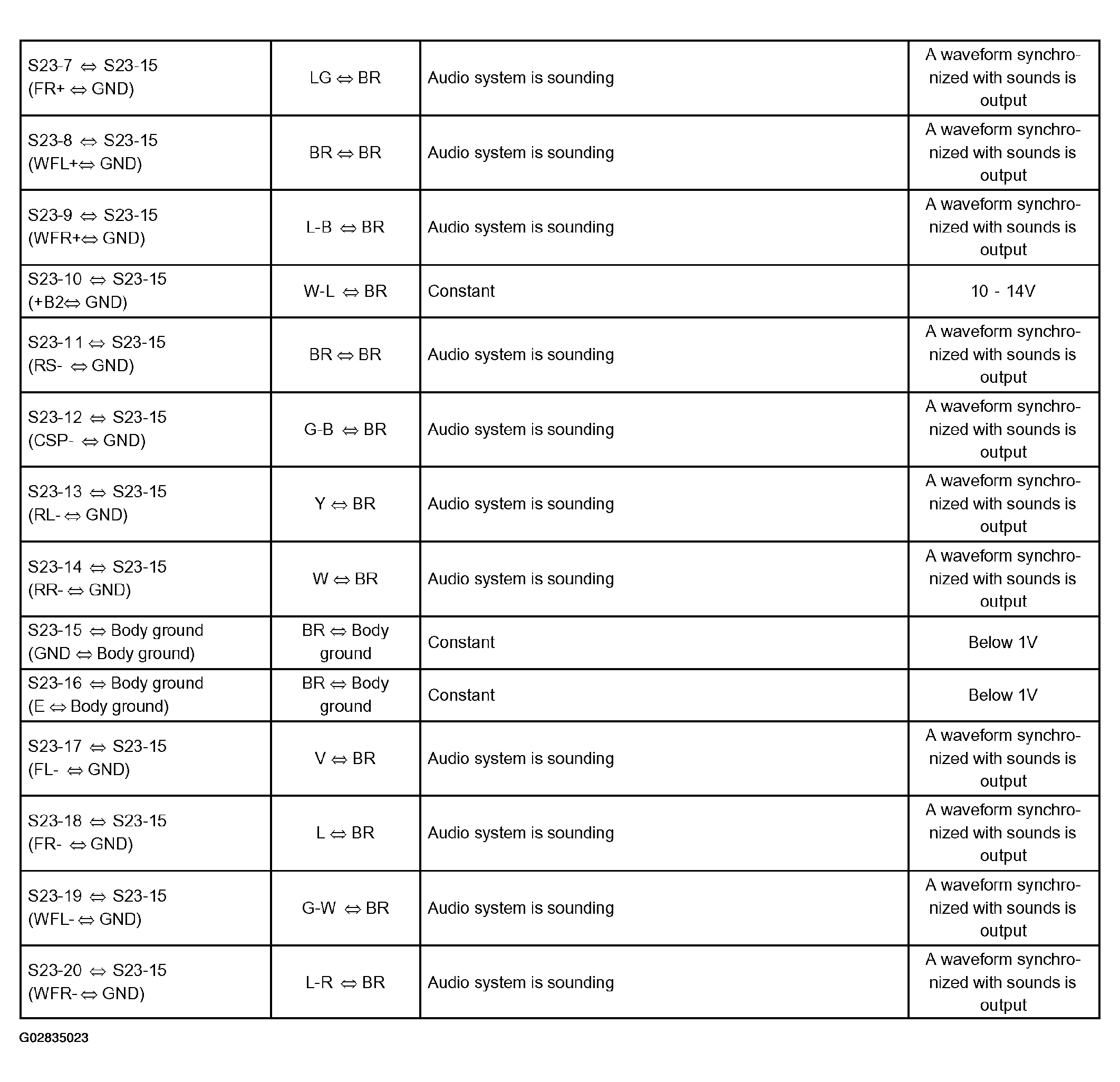

Fig 4: Identifying Terminals Of ECU (Stereo Component Amplifier Assy) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY

Fig 5: Identifying Terminals Of ECU (Stereo Component Controller Assy)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
