Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Multiplex Network Body Computer

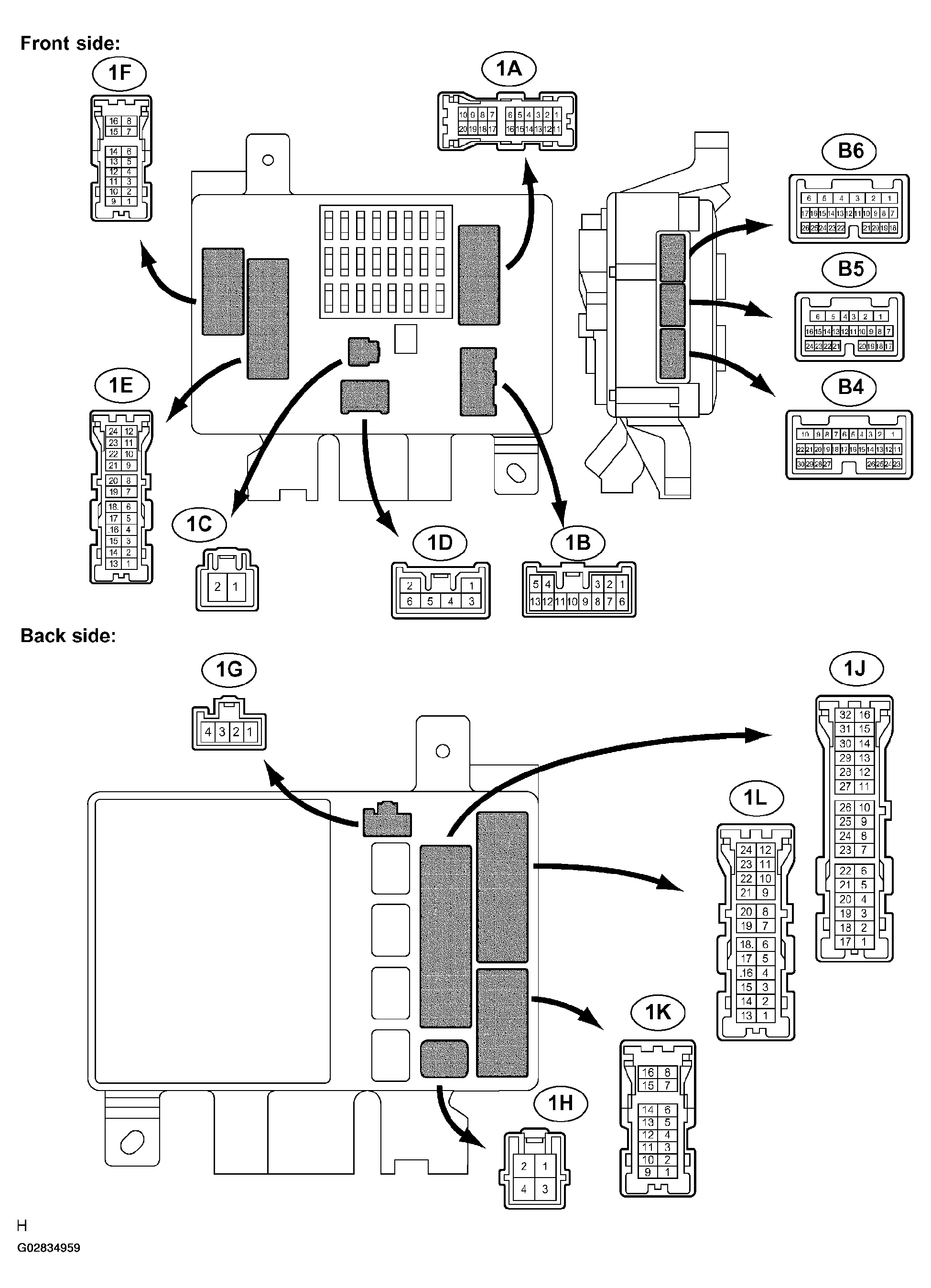

Fig 1: Identifying Terminals Of ECU (Multiplex Network Body Computer) (Front Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

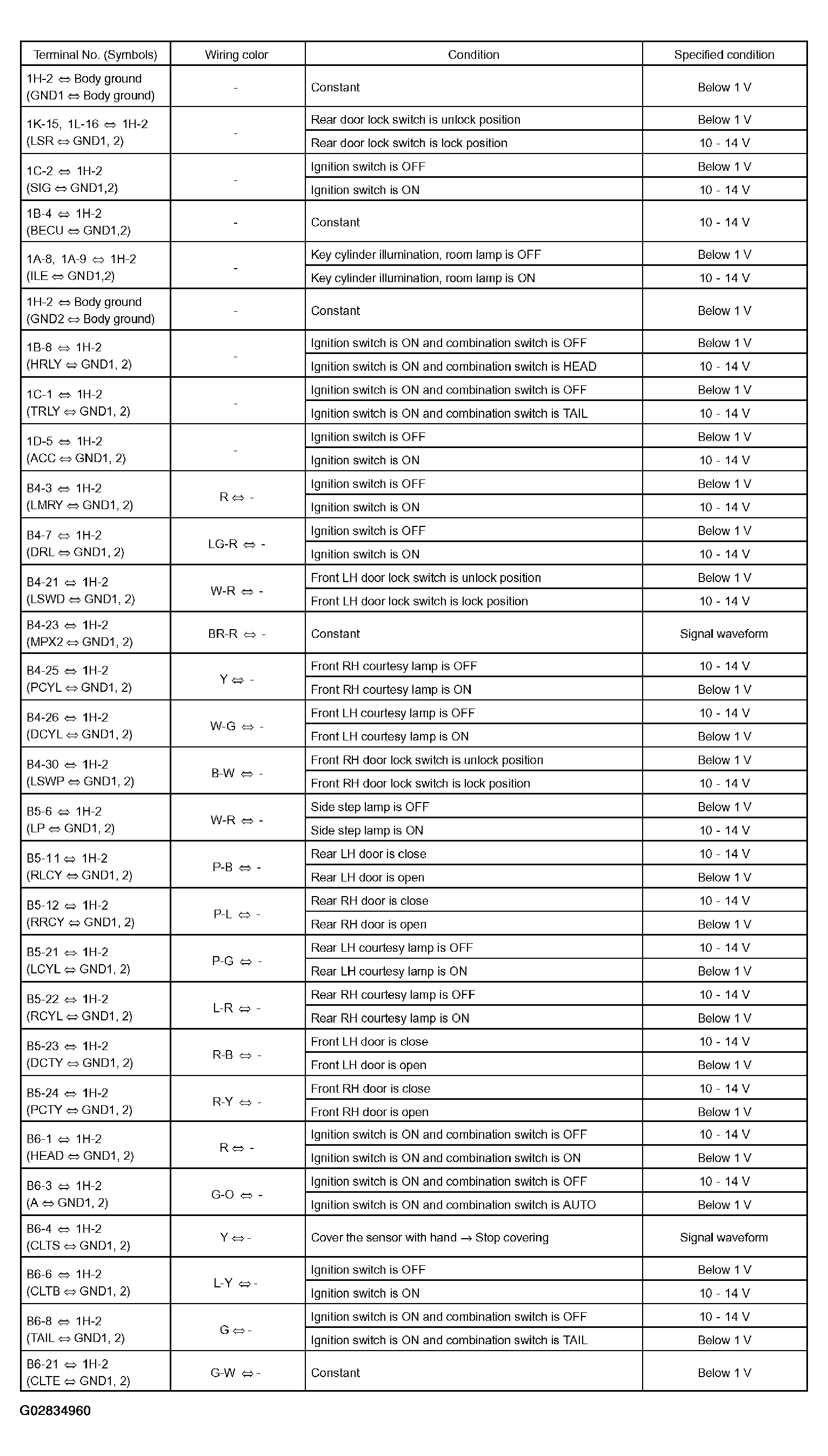

Fig 2: Terminals Of ECU (Multiplex Network Body Computer) (Descriptions & Conditions)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Multiplex Network Door ECU:

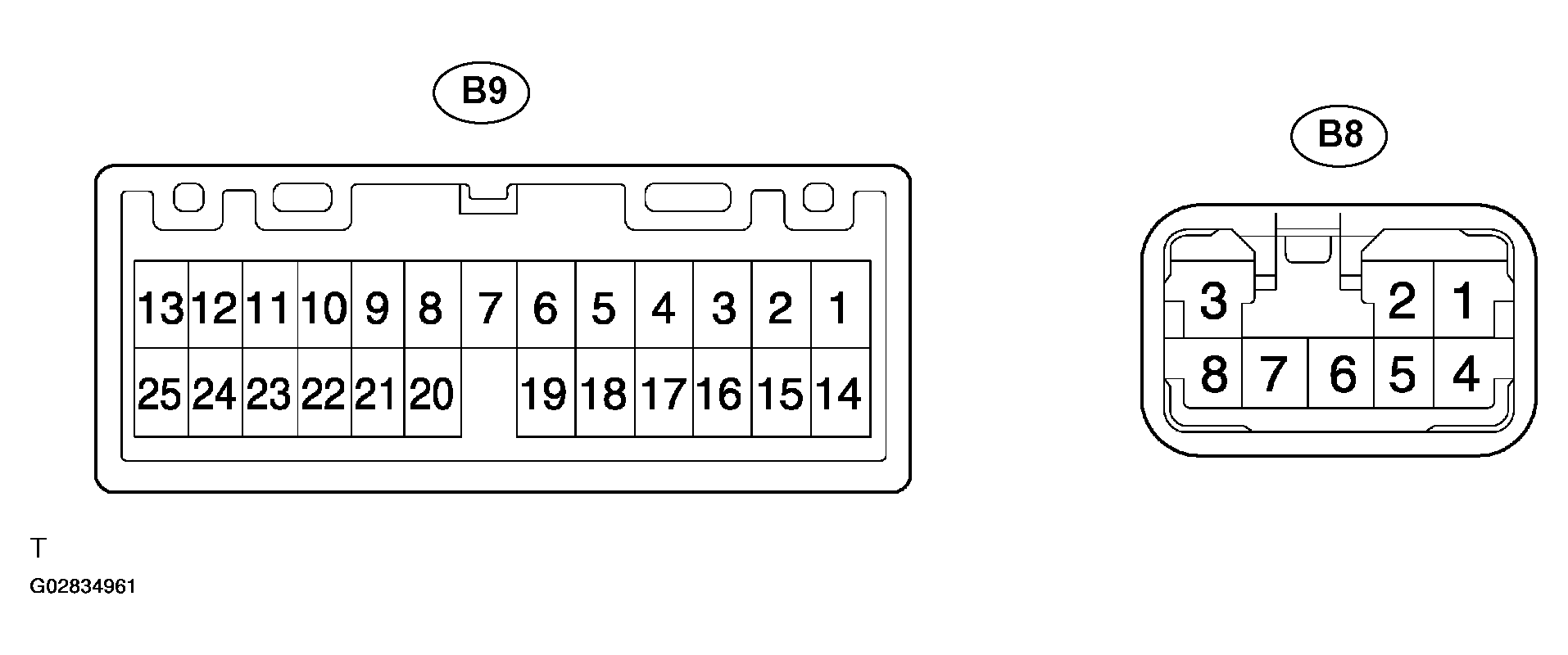

Fig 3: Identifying Multiplex Network Door ECU Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

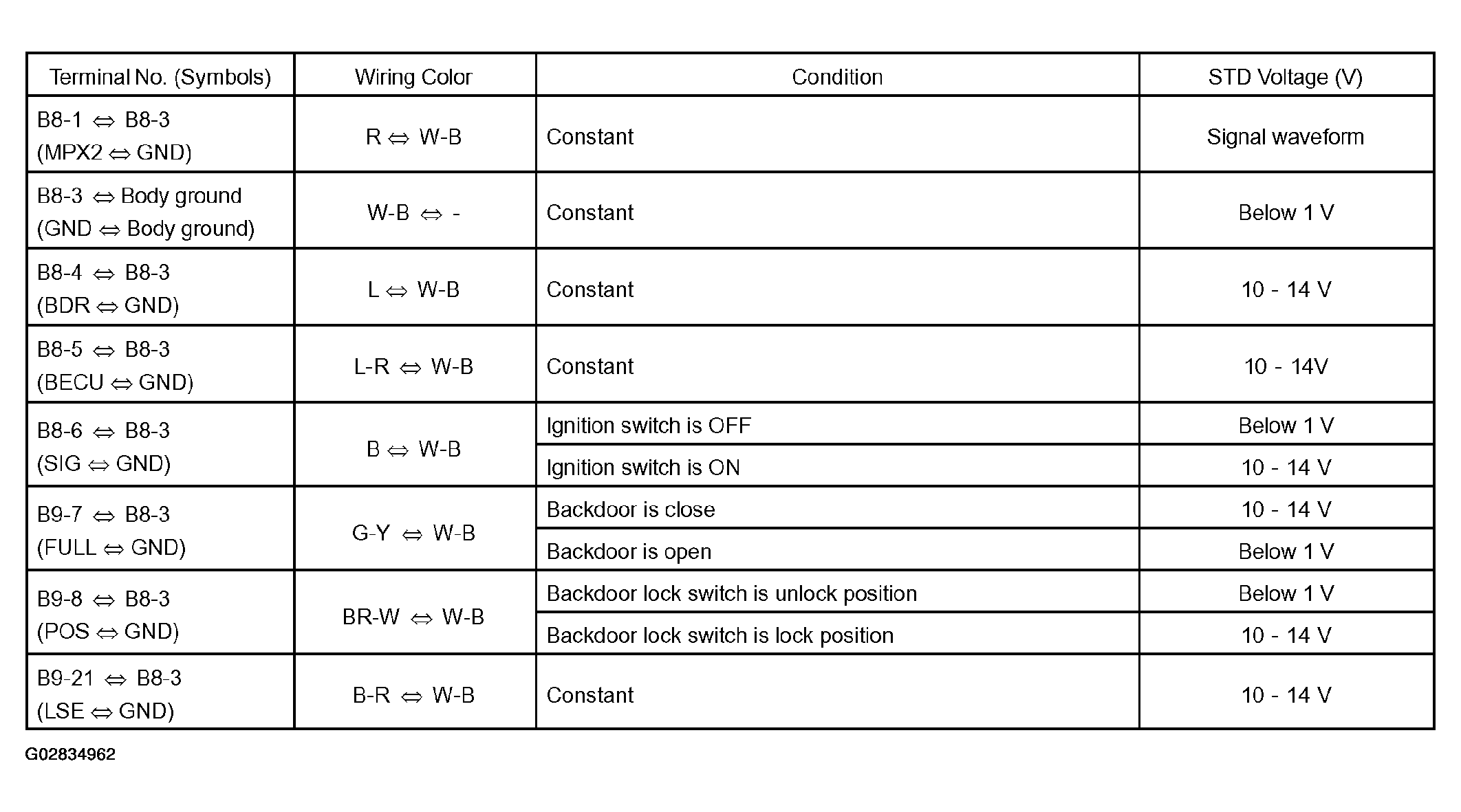

Fig 4: Terminals Of Multiplex Network Door ECU Terminals (Descriptions & Conditions)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
