Power Steering System On-Vehicle Inspection

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT DRIVE BELT
1. Visually check the belt for excessive wear, frayed cords, etc.

  Fig 1: Checking Belt For Excessive Wear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If any defect is found, replace the drive belt.

  NOTE:
  Cracks on the rib side of a belt are considered acceptable. If the missing chunks from the ribs are found on the belt, it should be replaced.
BLEED POWER STEERING SYSTEM
1. Check the fluid level.
2. Jack up the front of the vehicle and support it with the stands.
3. Turn the steering wheel.
  1. With the engine stopped, turn the wheel slowly from lock to lock several times.
4. Lower the vehicle.
5. Start the engine.
  1. Run the engine at idle for a few minutes.
6. Turn the steering wheel.
  1. With the engine idling, turn the wheel to left or right full lock position and keep it there for 2 - 3 seconds, then turn the wheel to the opposite full lock position and keep it there for 2 - 3 seconds.
  2. Repeat ( 1) several times.
7. Stop the engine.
8. Check for foaming or emulsification.

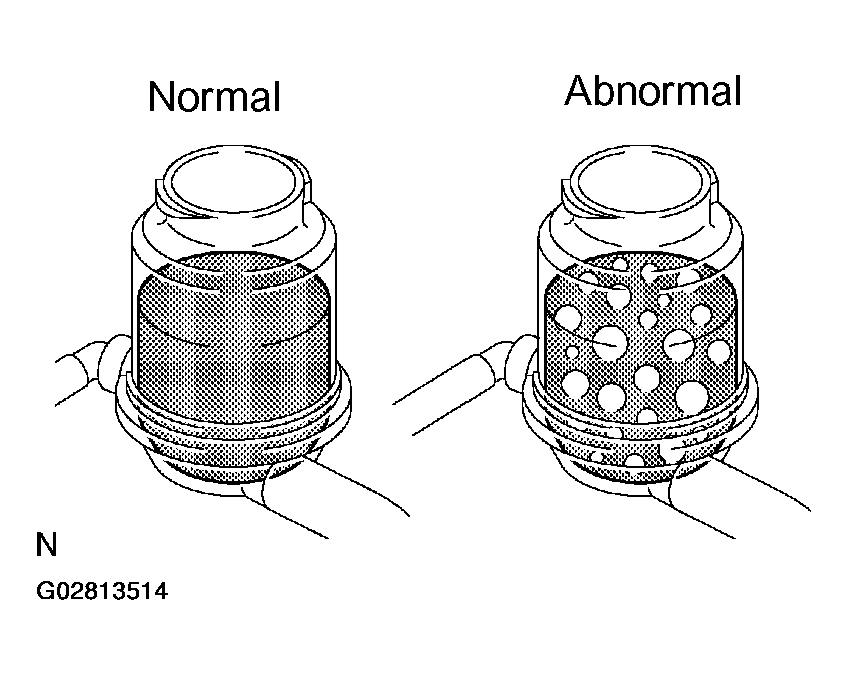

  Fig 2: Checking Fluid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Especially, if the system has to be bled twice because of foaming or emulsification, check for fluid leaks in the system.
9. Check the fluid level.
CHECK FLUID LEVEL
1. Keep the vehicle level
2. With the engine stopped, check the fluid level in the oil reservoir.

  Fig 3: Checking Fluid Level Is Within Hot And Cold Level Range On Reservoir Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If necessary, add fluid.

  Fluid: ATF DEXRON® II or III

  NOTE:
  Check that the fluid level is within the HOT LEVEL range on the reservoir tank. If the fluid is cold, check that it is within the COLD LEVEL range.
3. Start the engine and run it at idle.
4. Turn the steering wheel from lock to lock several times to raise fluid temperature.
  Fluid temperature: 75 - 80°C (167 - 176°F)
5. Check for foaming or emulsification.

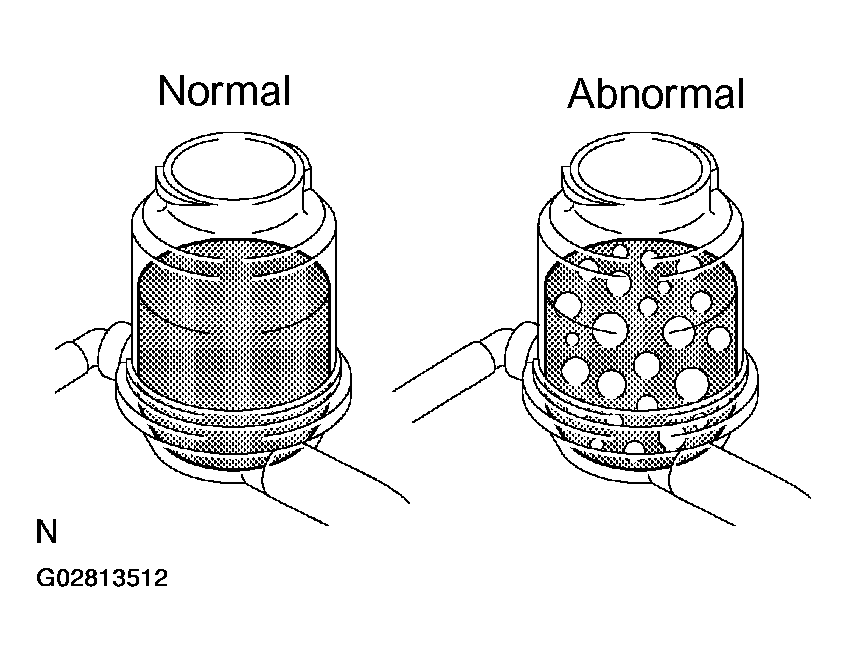

  Fig 4: Checking Foaming Or Emulsification
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If foaming or emulsification is identified, bleed the power steering system.
6. With the engine idling, measure the fluid level in the oil reservoir.
7. Stop the engine.
8. Wait a few minutes and measure the fluid level in the oil reservoir again.

  Fig 5: Measuring Fluid Level In Oil Reservoir
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Maximum fluid level rise: 5 mm (0.20 in.)

  If a problem is found, bleed the power steering system.
9. Check the fluid level.
CHECK STEERING FLUID PRESSURE
1. Disconnect the pressure feed tube from the vane pump (See OVERHAUL ).
2. Connect SST, as shown in Fig 6.

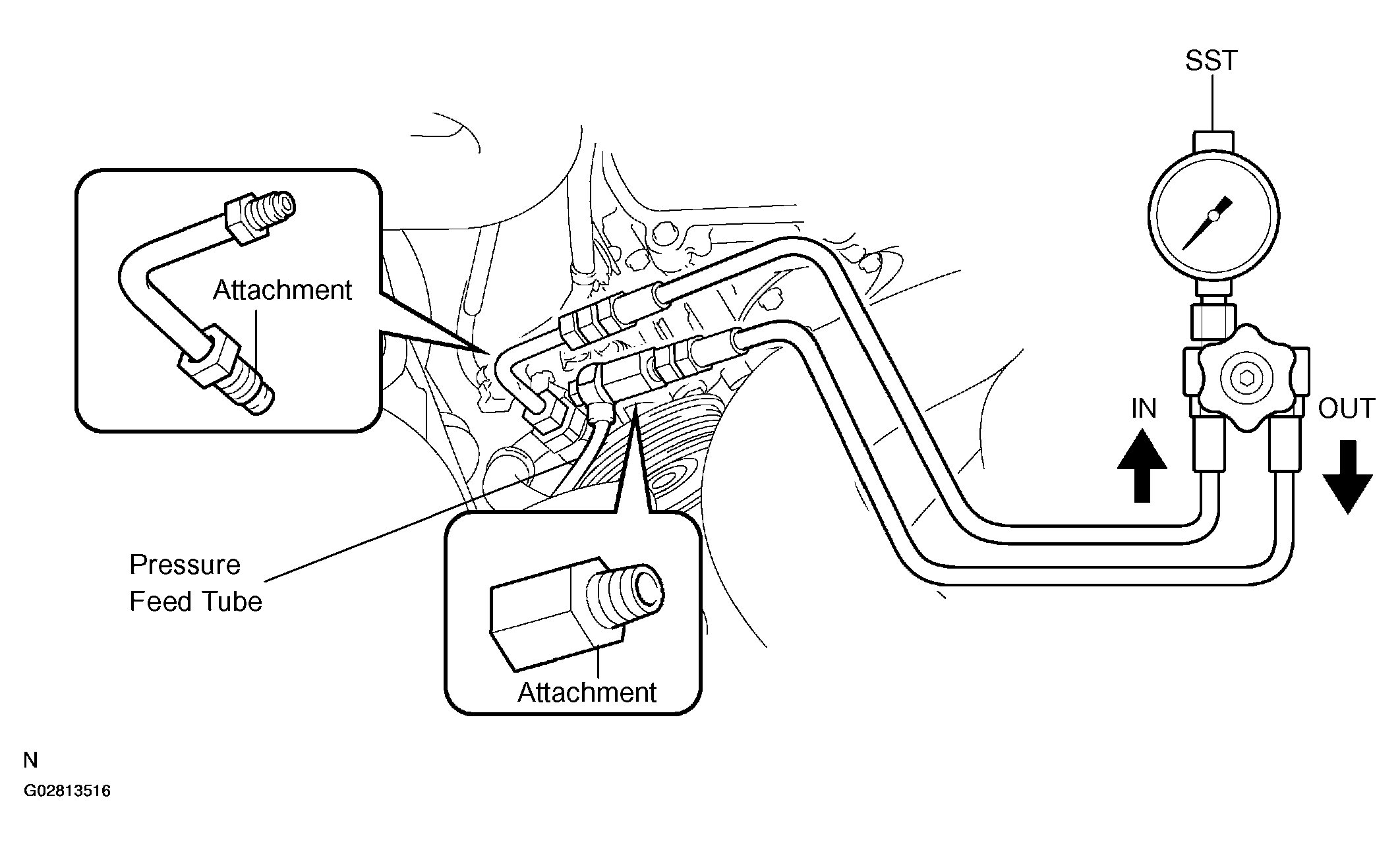

  Fig 6: Identifying Pressure Feed Tube Attachment
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09640-10010 (09641-01010, 09641-01020, 09641-01030)

  NOTE: Check that the valve of the SST is in the open position.
3. Bleed the power steering system.
4. Start the engine and run it at idle.
5. Turn the steering wheel from lock to lock several times to raise fluid temperature.
  Fluid temperature: 75 - 80 °C (167 - 176 °F)
6. With the engine idling, close the valve of the SST and observe the reading on the SST.

  Fig 7: Closing Valve Of SST And Observe Reading On SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fluid pressure:

  8,300 - 8,800 kPa (85 - 90 kgf/cm2, 1,209 - 1,280 psi)
  NOTE:
  - Do not keep the valve closed for more than 10 seconds.
  - Do not let the fluid temperature become too high.
  ]
7. With the engine idling, open the valve fully.

  Fig 8: Measuring Fluid Pressure At Engine Speeds Of 1,000 Rpm And 3,000 Rpm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Measure the fluid pressure at engine speeds of 1,000 rpm and 3,000 rpm.
  Fluid pressure difference:

  490 kPa (5 kgf/cm2, 71 psi) or less

  NOTE: Do not turn the steering wheel.
9. With the engine idling and valve fully opened, turn the steering wheel to full lock position.

  Fig 9: Turning Steering Wheel To Full Lock Position With Engine Idling And Valve Fully Opened
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fluid pressure:

  8,300 - 8,800 kPa (85 - 90 kgf/cm2, 1,209 - 1,280 psi)
  NOTE:
  - Do not maintain lock position for more than 10 seconds.
  - Do not let the fluid temperature become too high.
10. Disconnect the SST.
  SST 09640-10010 (09641-01010, 09641-01020, 09641-01030)
11. Connect the pressure feed tube to the vane pump (See OVERHAUL ).
12. Bleed the power steering system.
CHECK STEERING EFFORT
1. Center the steering wheel assy.
2. Remove the horn button assy
  (See OVERHAUL ).
3. Start the engine and run it at idle.
4. Measure the steering effort in both directions.

  Fig 10: Measuring Steering Effort In Both Directions
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Steering effort (Reference):

  6 N.m (60 kgf.cm, 53 in..lbf) or less

  NOTE:
  Take the tire type, pressure and contact surface into consideration before making your diagnosis.
5. Install the steering wheel assy set nut.
  Torque: 50 N.m (510 kgf.cm, 37 ft.lbf)
6. Install the horn button assy
  (See OVERHAUL ).
