Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Multiplex Network Body Computer

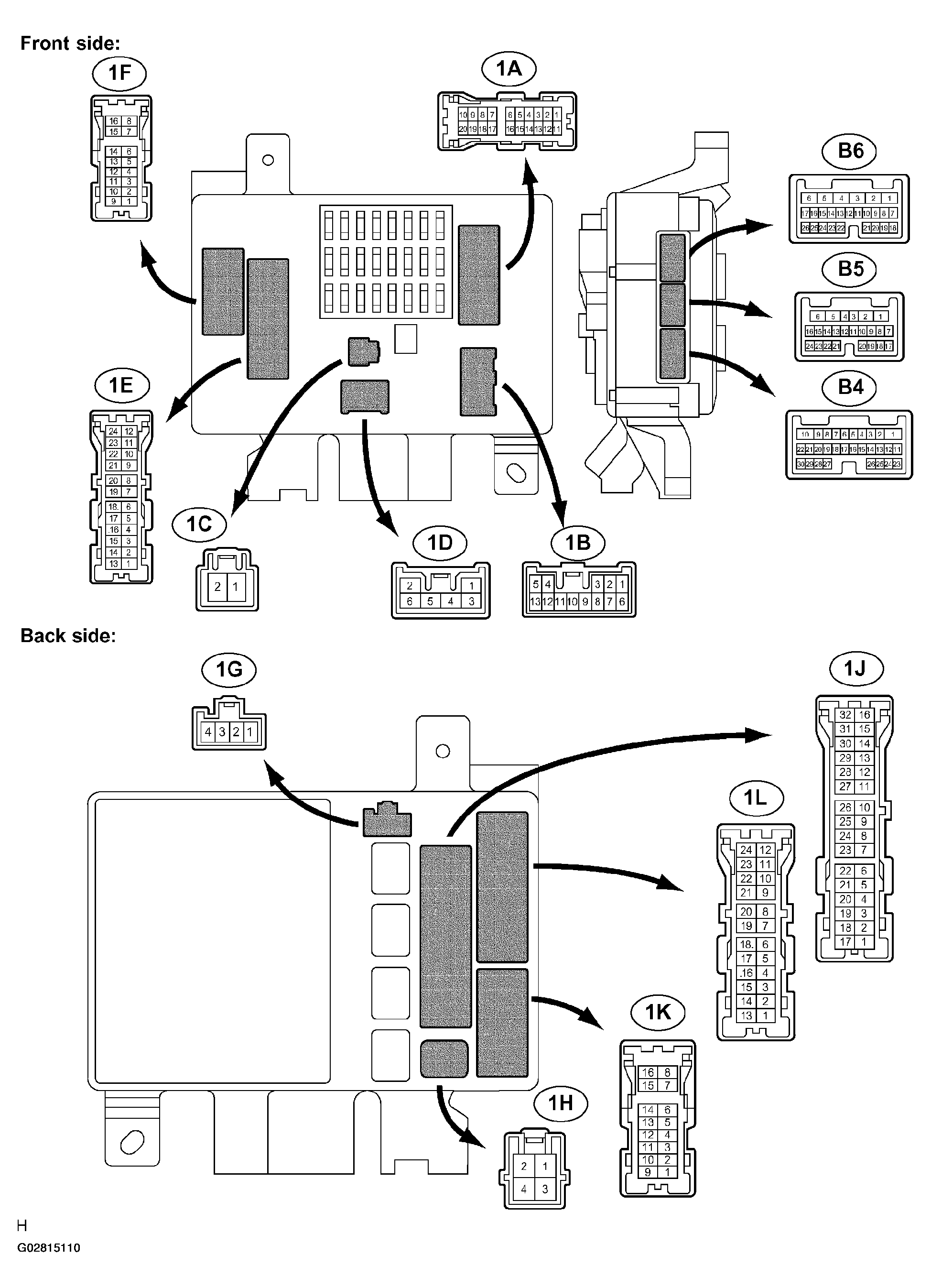

Fig 1: Identifying Multiplex Network Body Computer Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

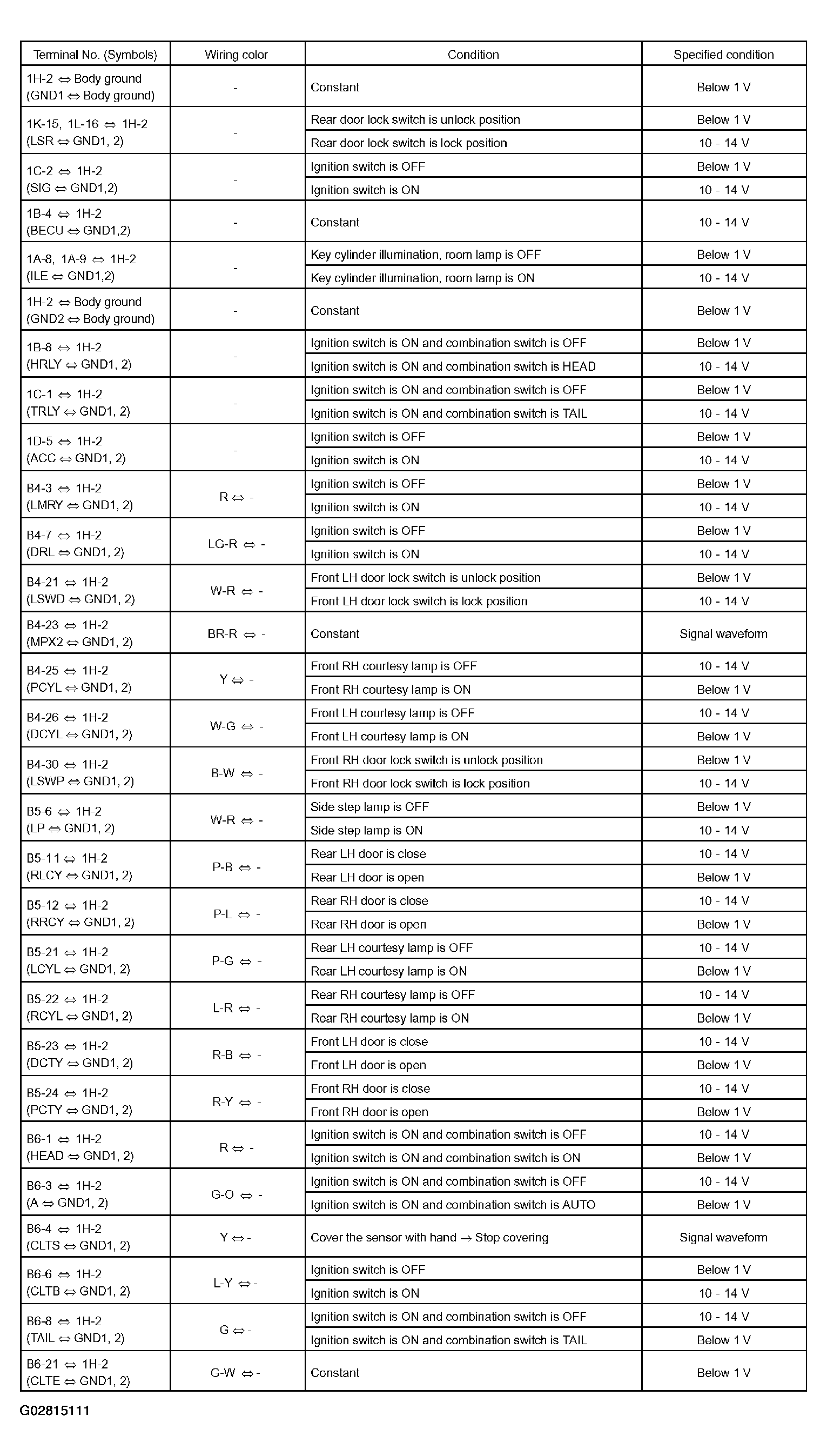

Fig 2: Multiplex Network Body Computer Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Multiplex Network Door ECU:

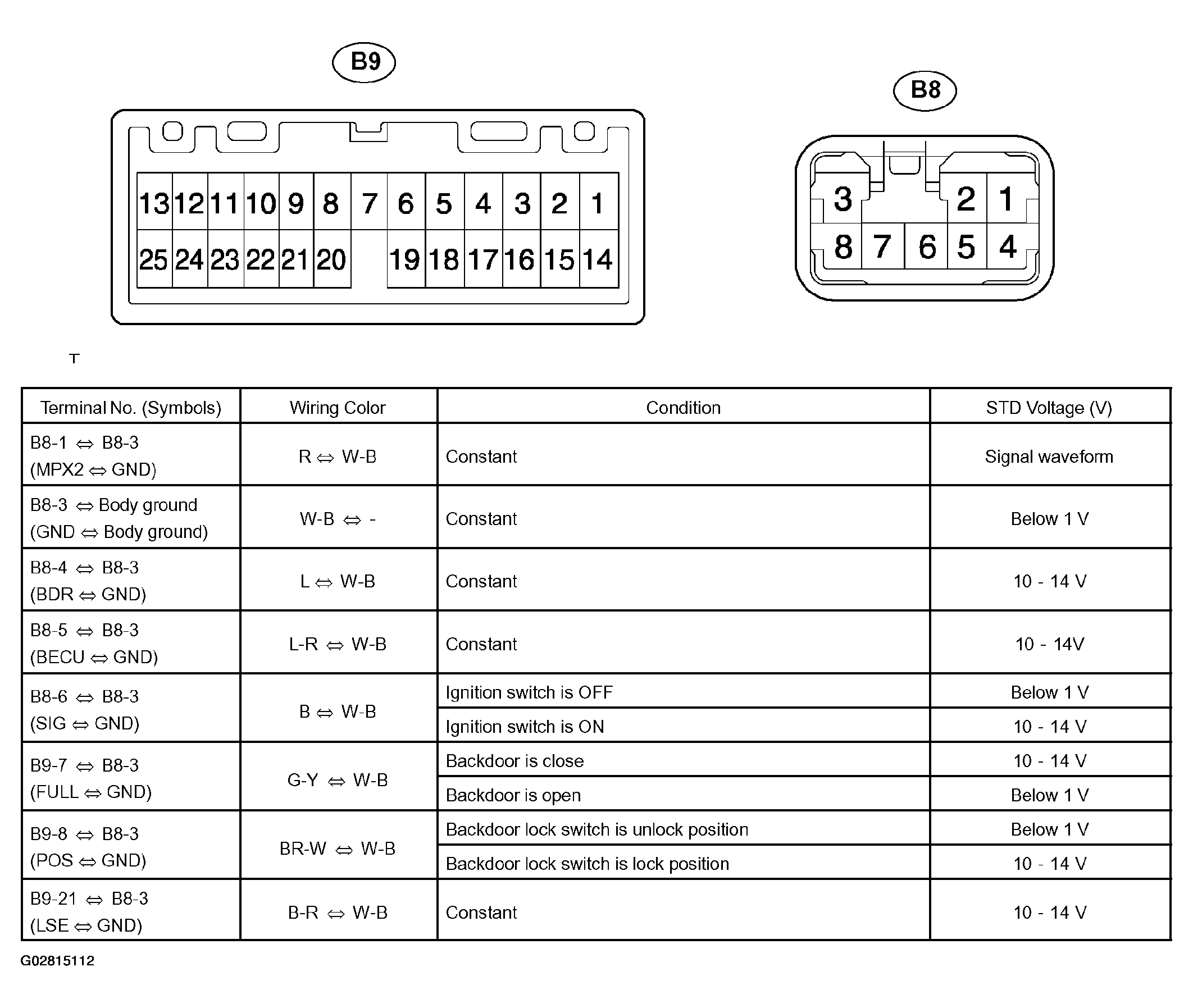

Fig 3: Multiplex Network Door ECU & Specifications Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
