Circuit Description

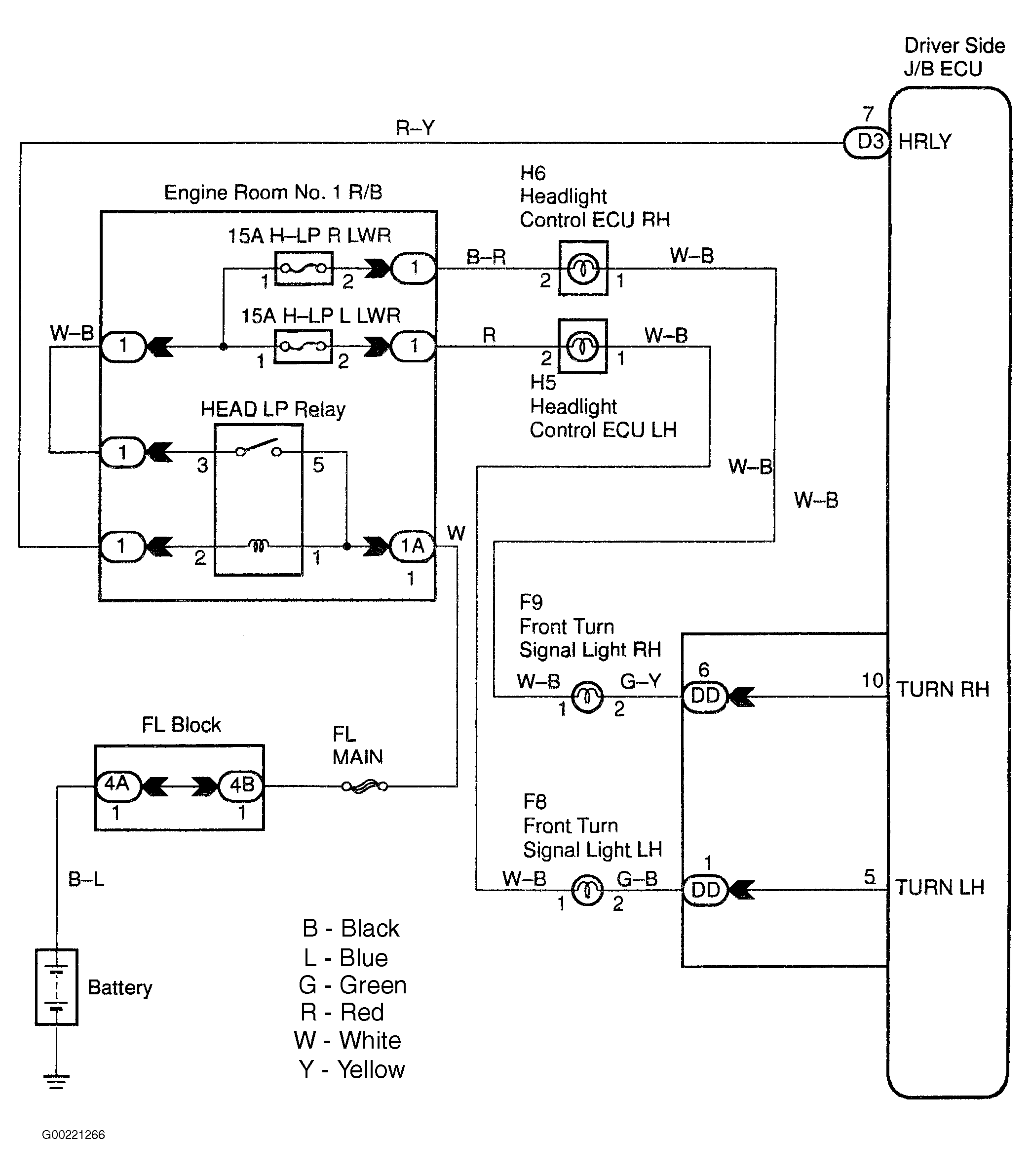

Receiving the signal of the turn signal switch from the driver side junction block (body No. 2) ECU, the driver side junction block (body No. 2) ECU makes the turn signal light come on. For circuit diagram, see Fig 1. The driver side junction block (body No. 2) ECU activates the flasher relay while the theft deterrent system gives the warning and lights the turn signal lights and the hazard warning lights.
