Circuit Description

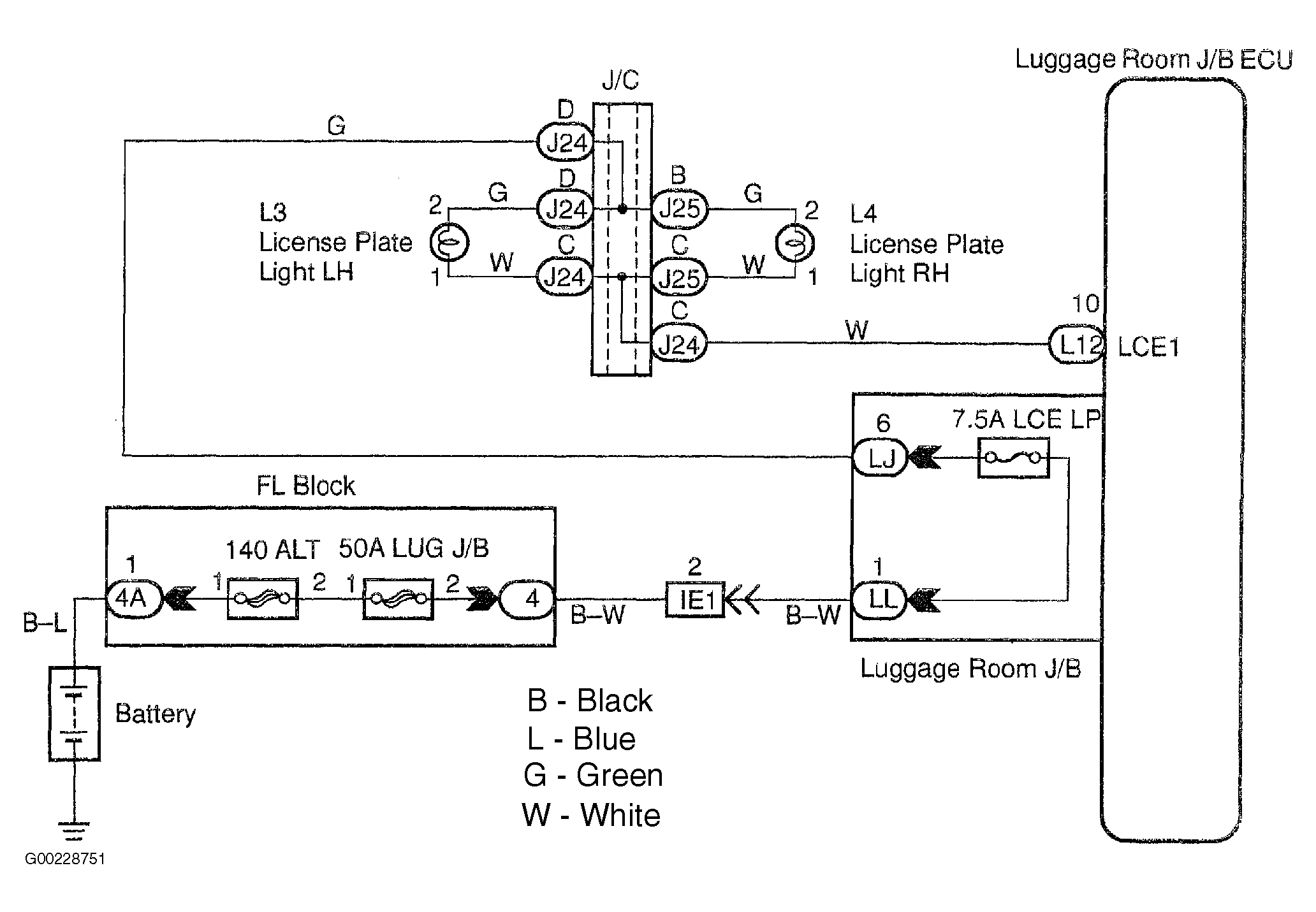

Receiving the light control switch TAIL signal from the luggage room junction block (body No. 4) ECU makes the license plate light come on. For circuit diagram, see Fig 1.
Receiving the light control switch TAIL signal from the luggage room junction block (body No. 4) ECU makes the license plate light come on. For circuit diagram, see Fig 1.
