Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

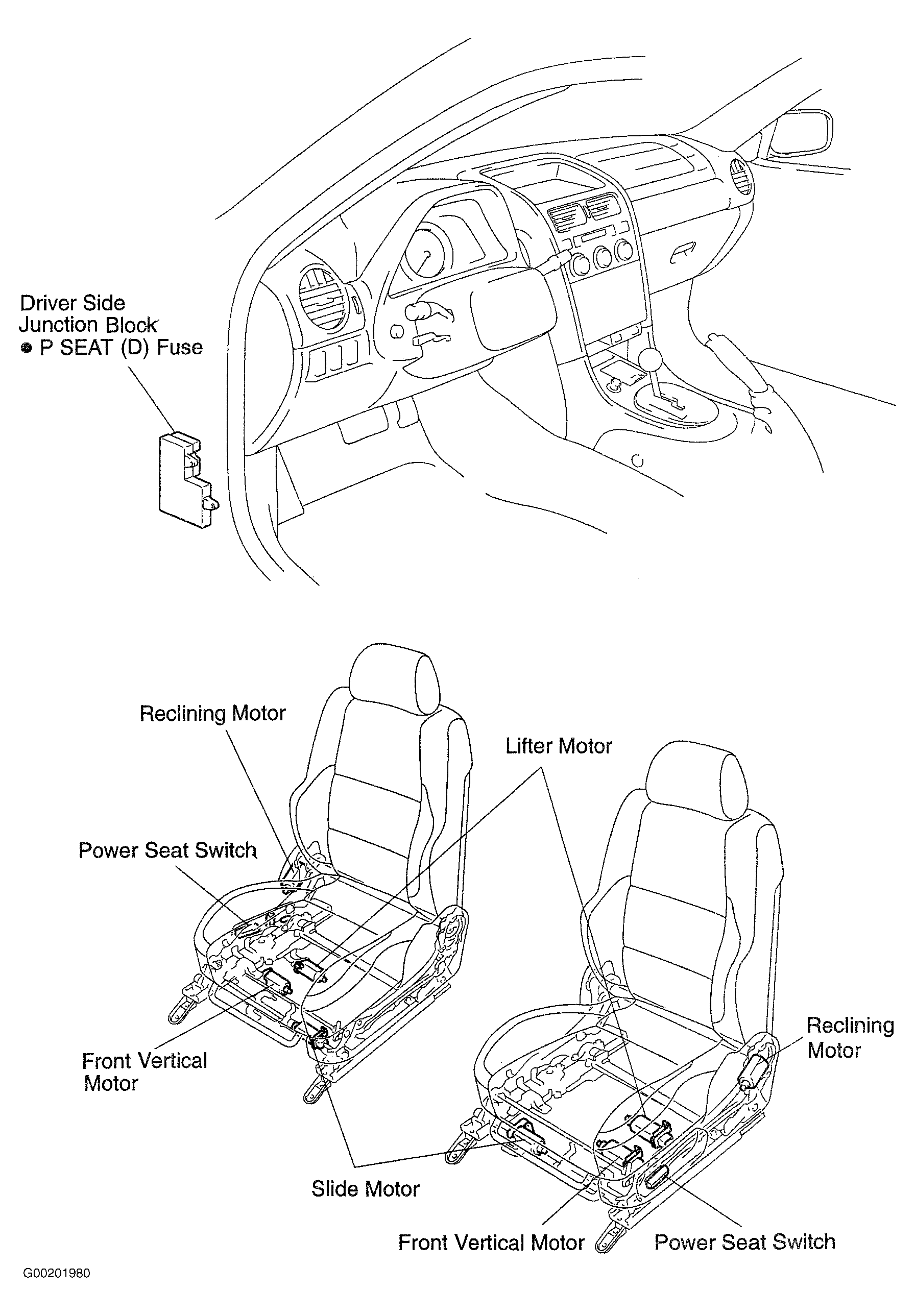

| Front Vertical Motor | Fig 1 |

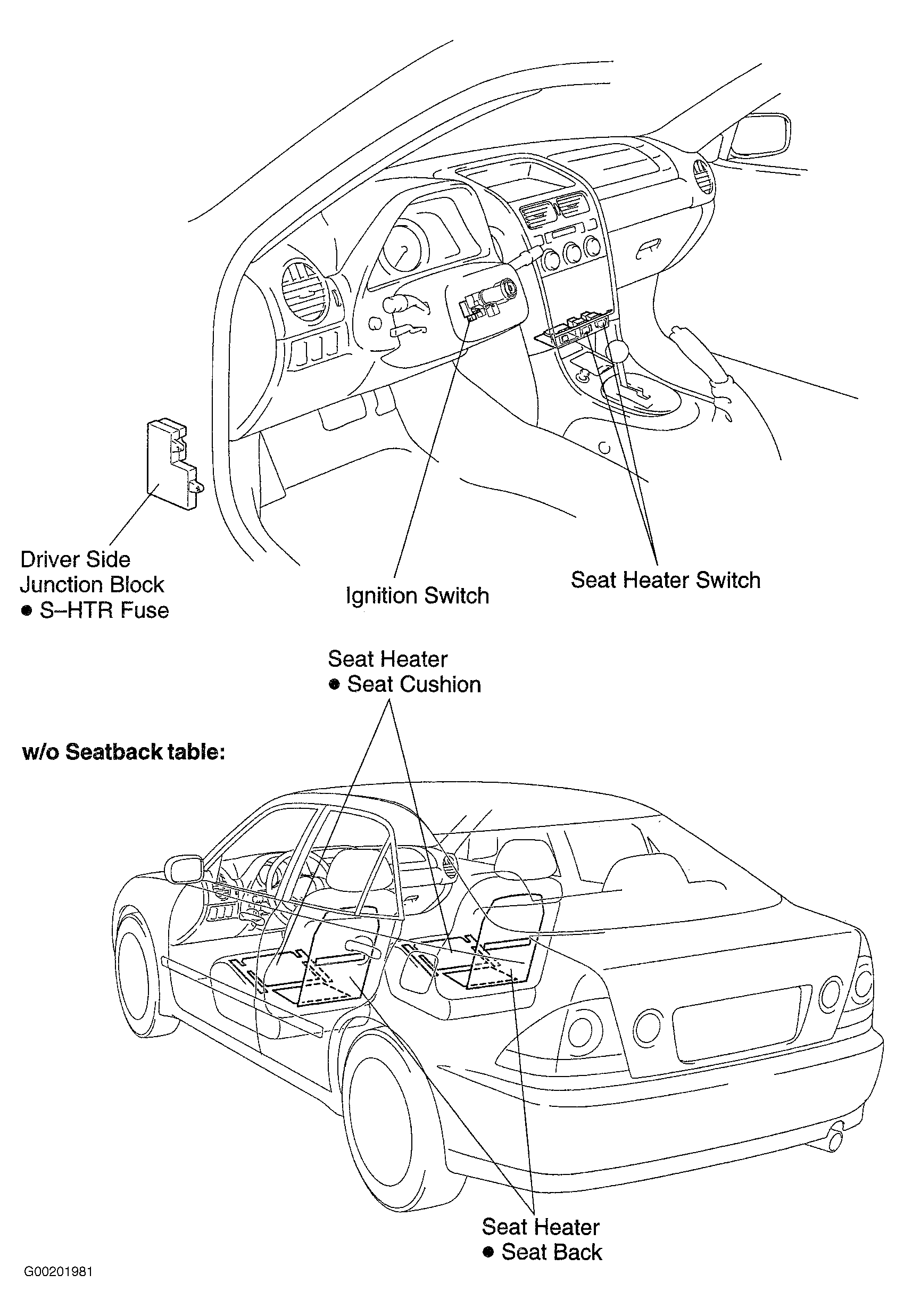

| Ignition Switch | Fig 2 |
| Lifter Motor | Fig 1 |
| P SEAT (Driver) Fuse (Driver Side J/B) | Fig 1 |
| Power Seat Switch | Fig 1 |
| Reclining Motor | Fig 1 |
| S-HTR Fuse (Driver Side J/B) | Fig 2 |

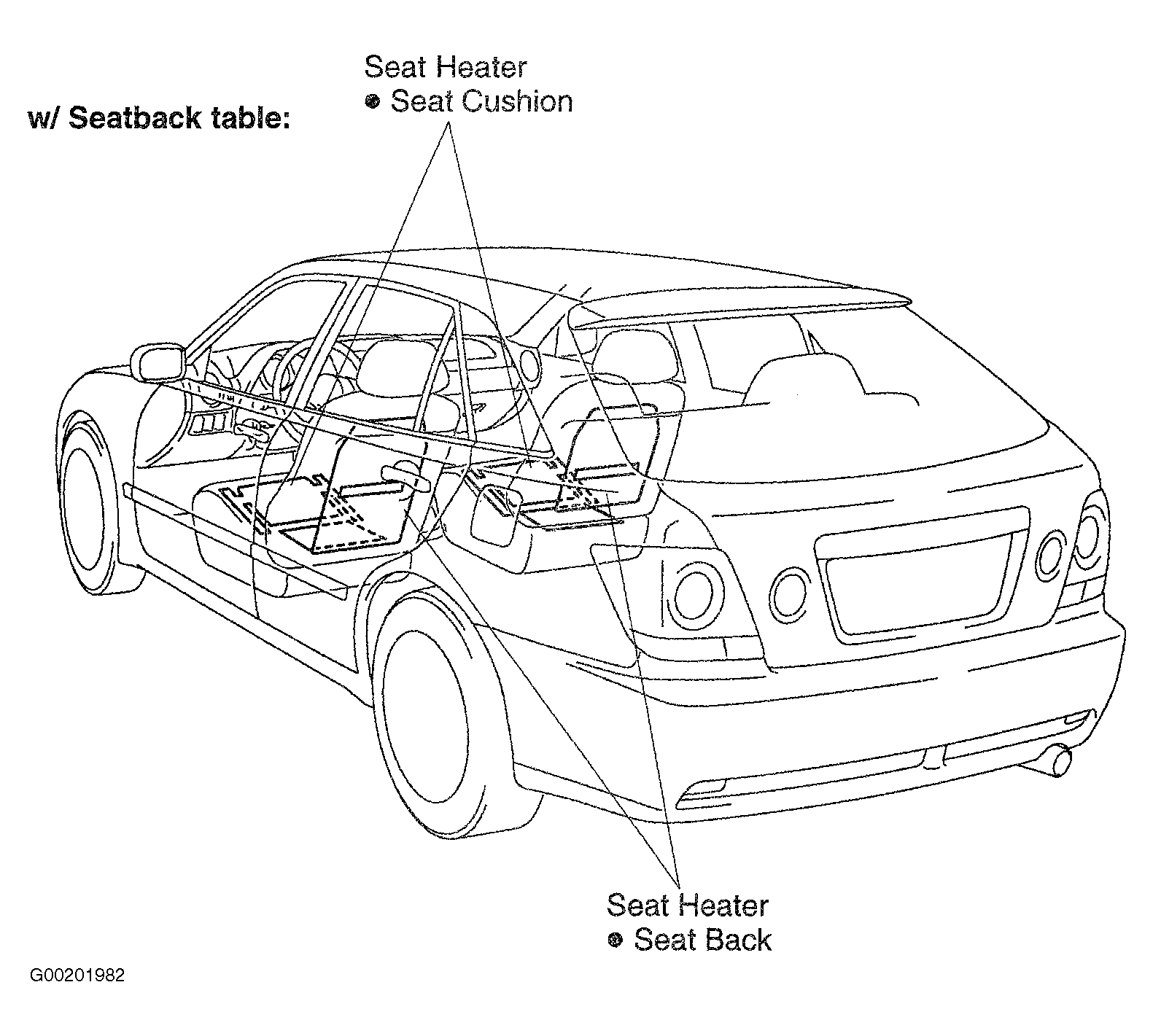

| Seat Heater Back | Fig 2 & Fig 3 |
| Seat Heater Cushion | Fig 2 & Fig 3 |
| Seat Heater Switch | Fig 2 |
| Slide Motor | Fig 1 |
