Pattern Select Switch Circuit: Wiring Diagram

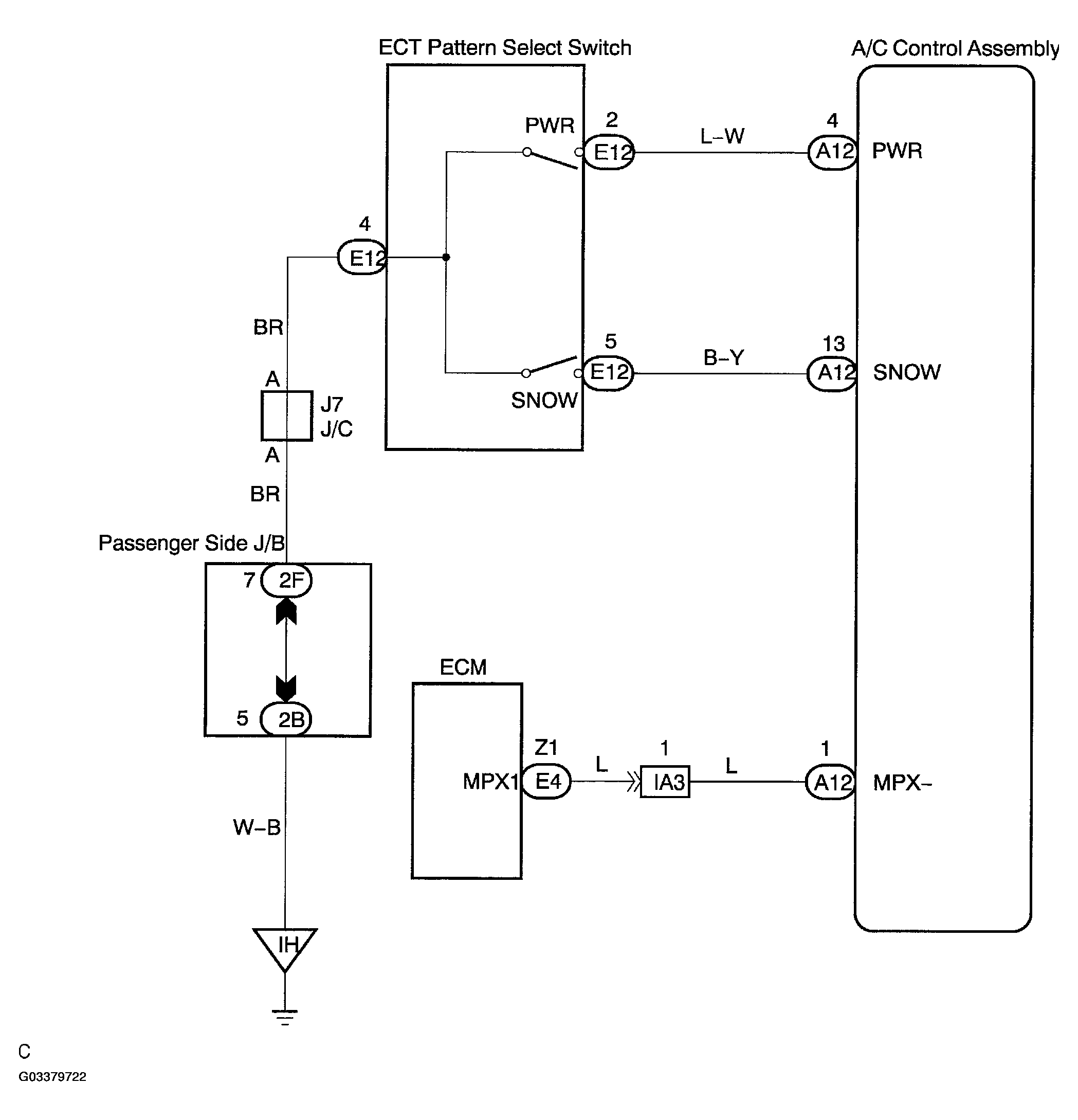

Fig 1: Identifying Wiring Diagram

G03379722

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
