Power Steering Gear: Components

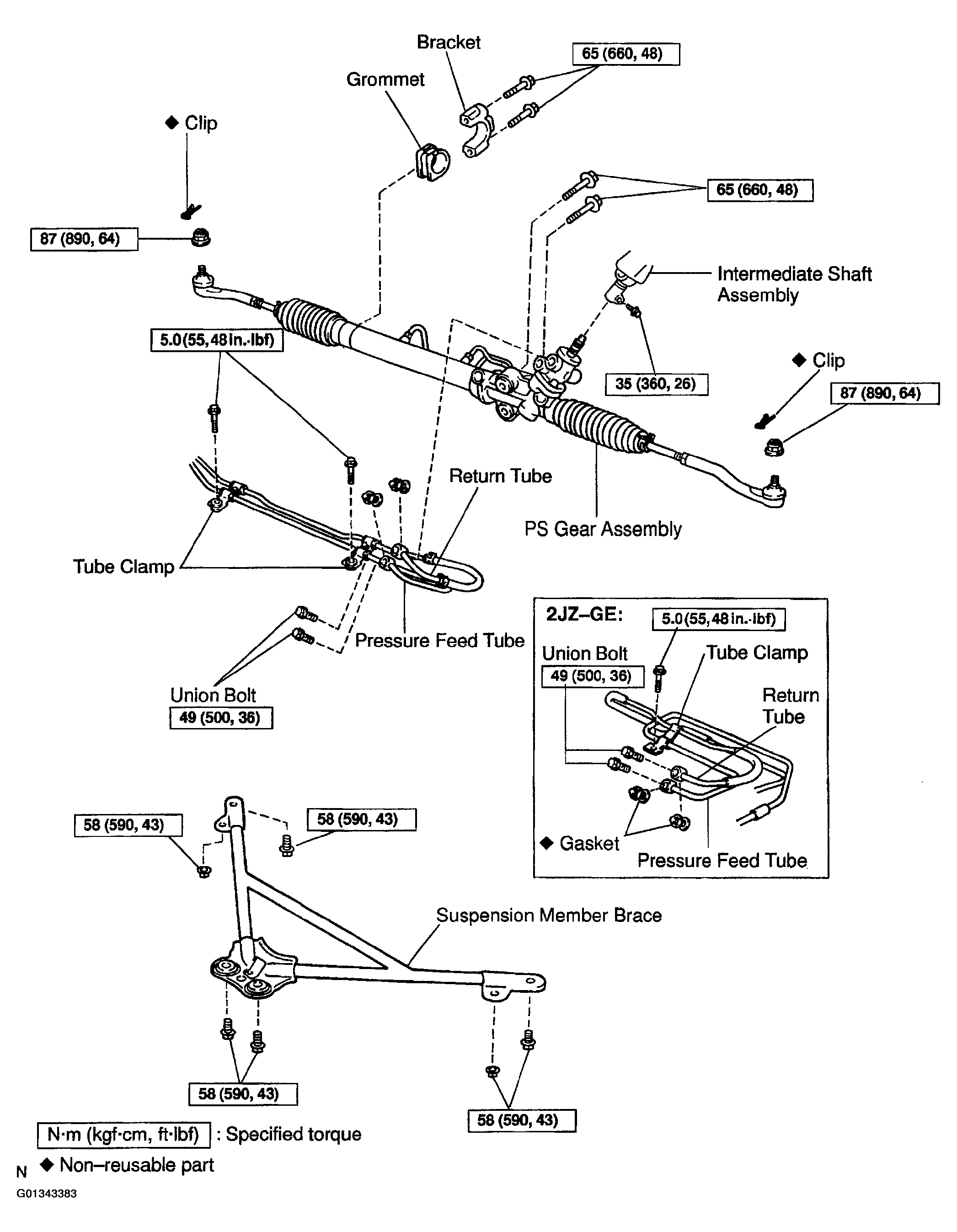

Fig 1: Identifying Power Steering Gear Components (1 Of 3)
G01343383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

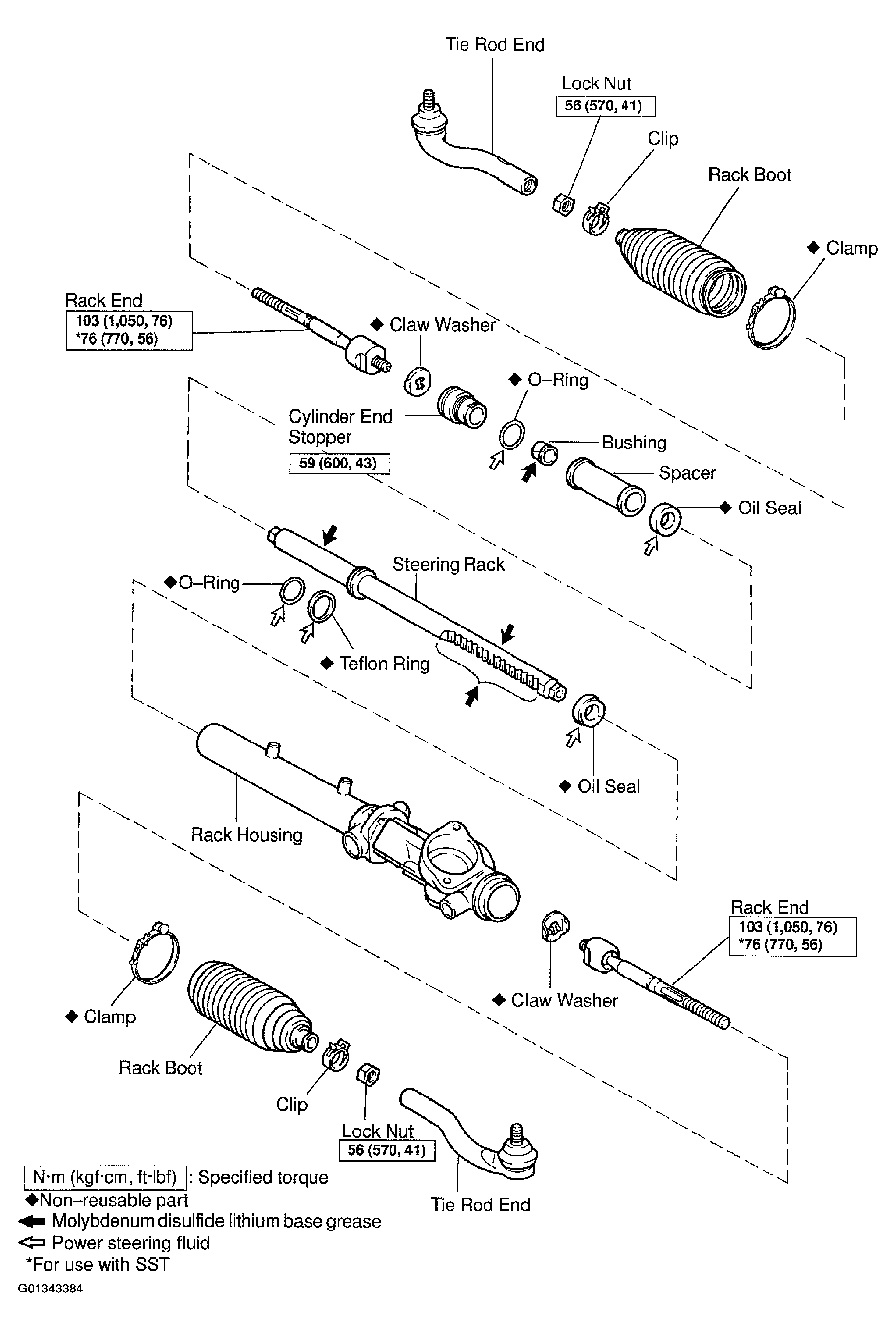

Fig 2: Identifying Power Steering Gear Components (2 Of 3)
G01343384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

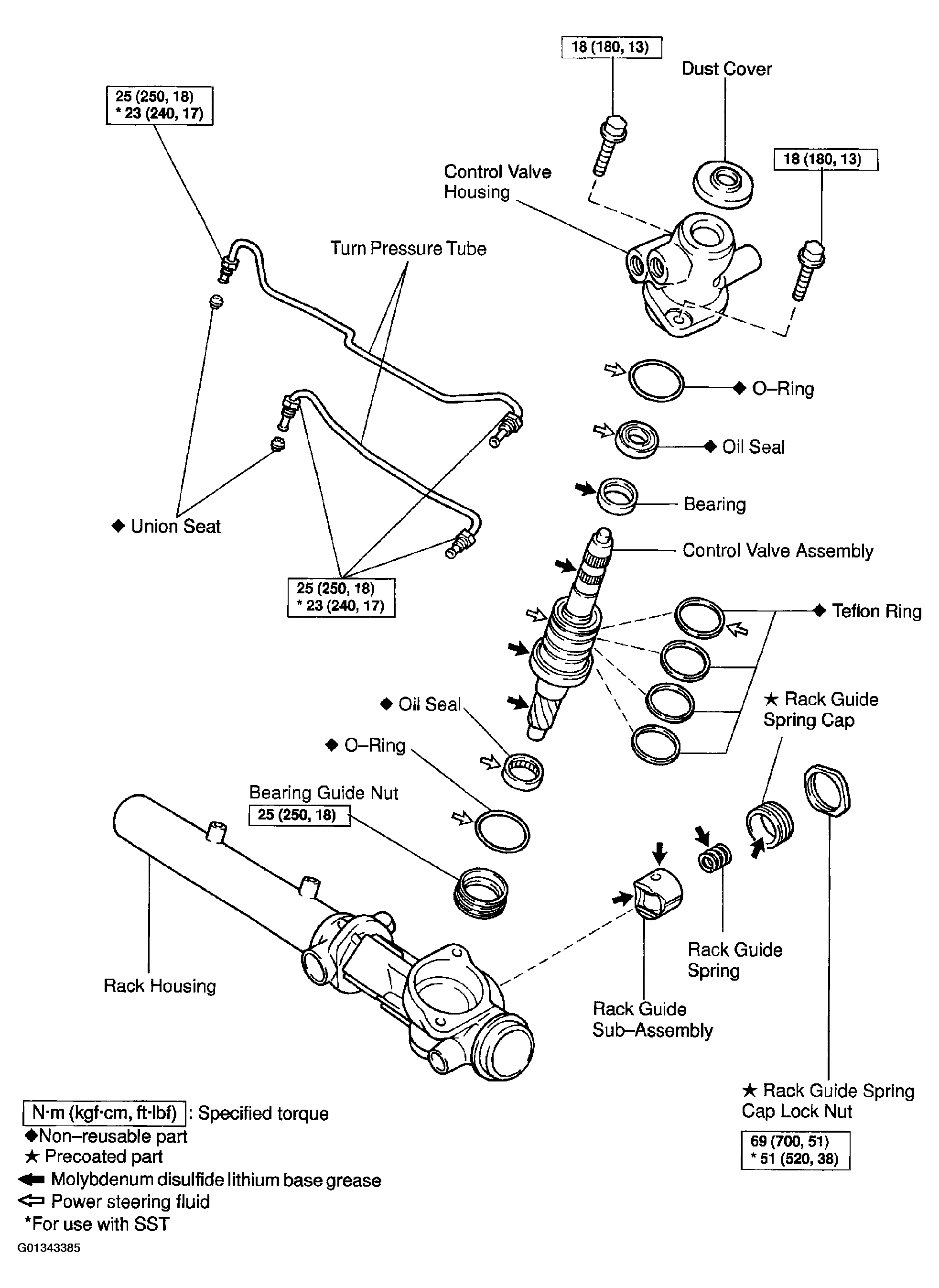

Fig 3: Identifying Power Steering Gear Components (3 Of 3)
G01343385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
