Front Power Seat Control System (With Memory) - Diagnosis: Location

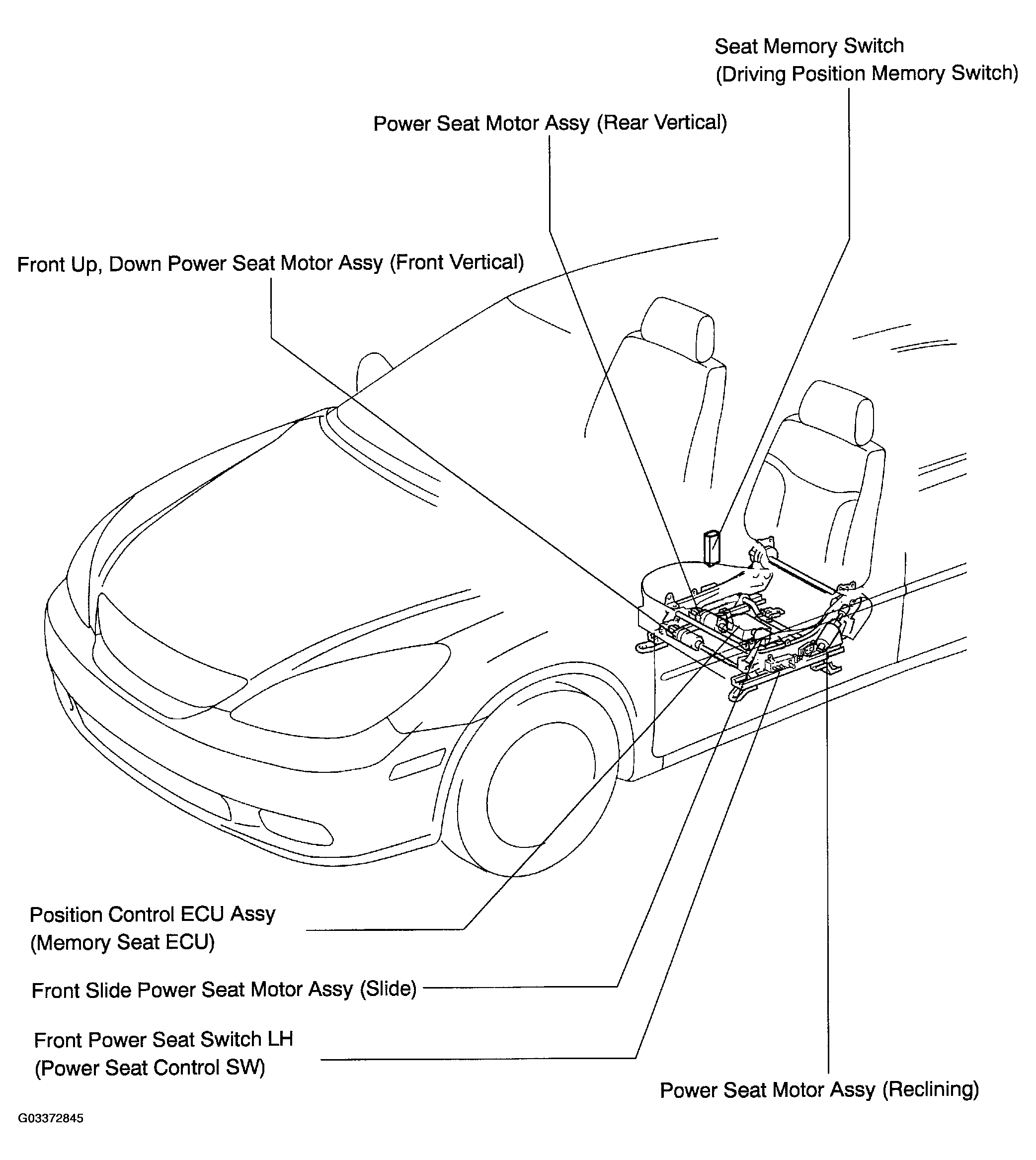

Fig 1: Identifying Location Of Front Power Seat Control System Components

G03372845

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
