Rack & Pinion Power Steering Gear ASSY: Components

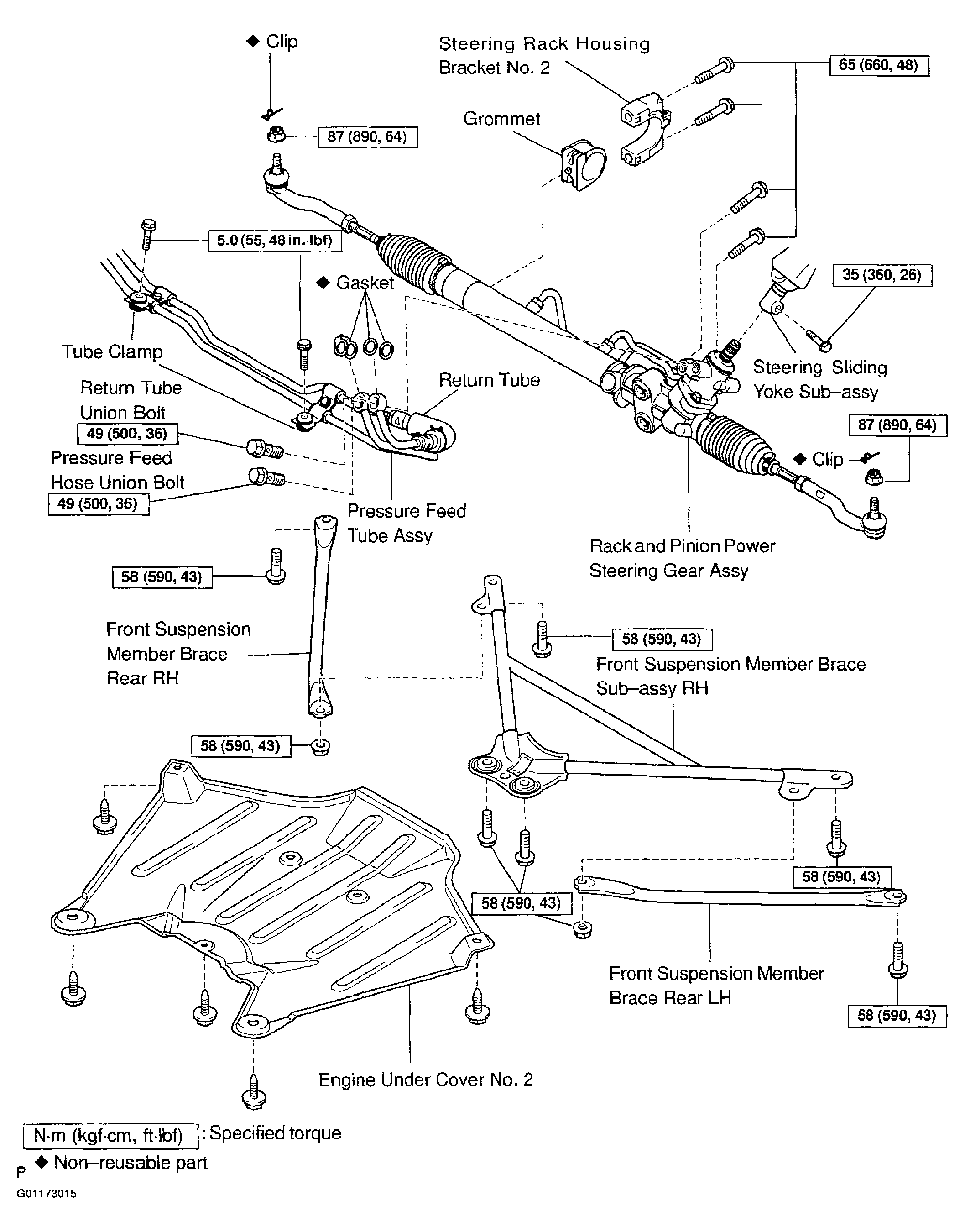

Fig 1: Removing/Installing Rack And Pinion Steering Gear Assembly And Related Components And Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

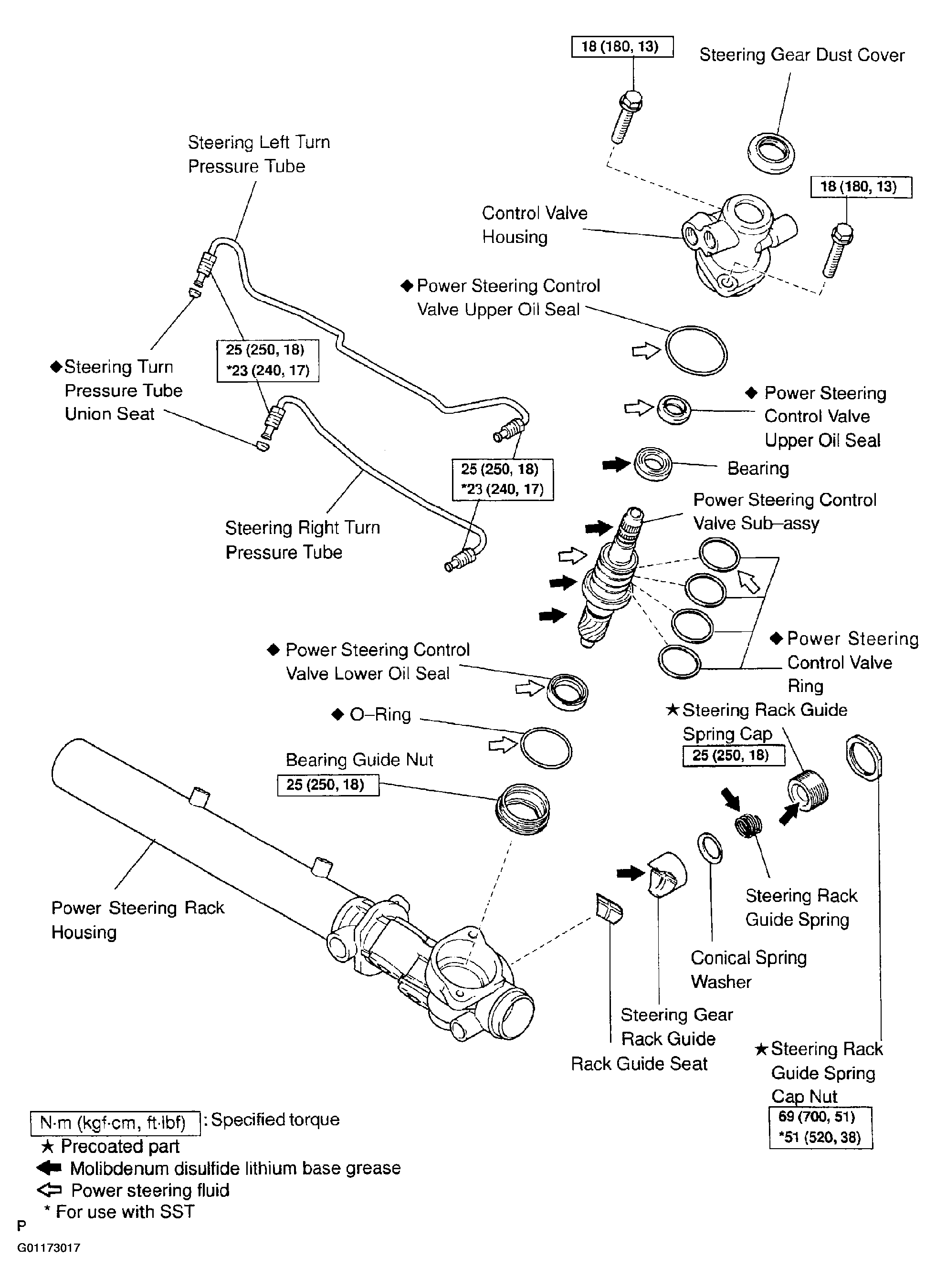

Fig 2: Exploded View Of Rack And Pinion Steering Gear Assembly Components And Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

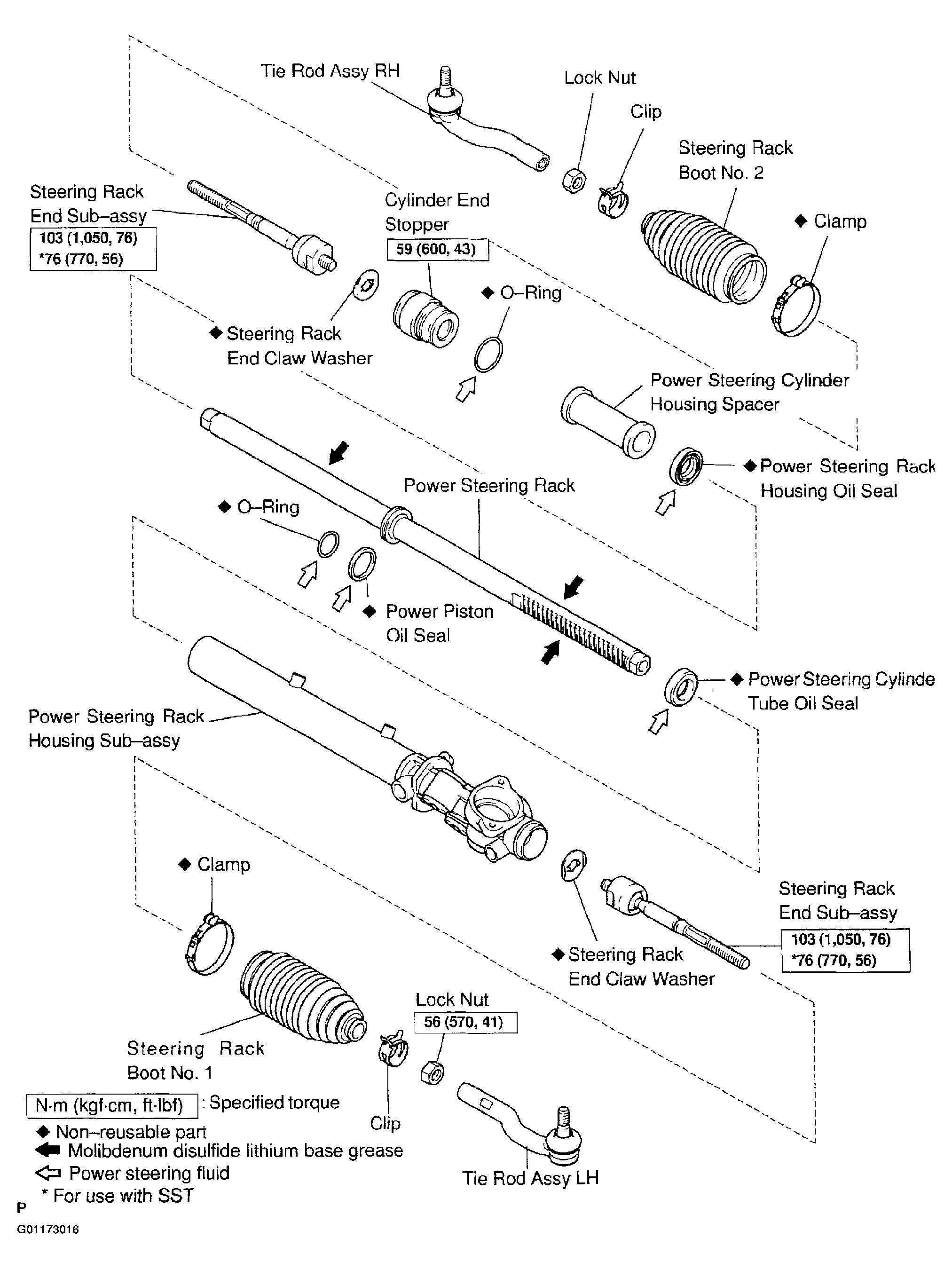

Fig 3: Exploded View Of Rack And Pinion Steering Gear Assembly Components And Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
