Blower ASSY: Components

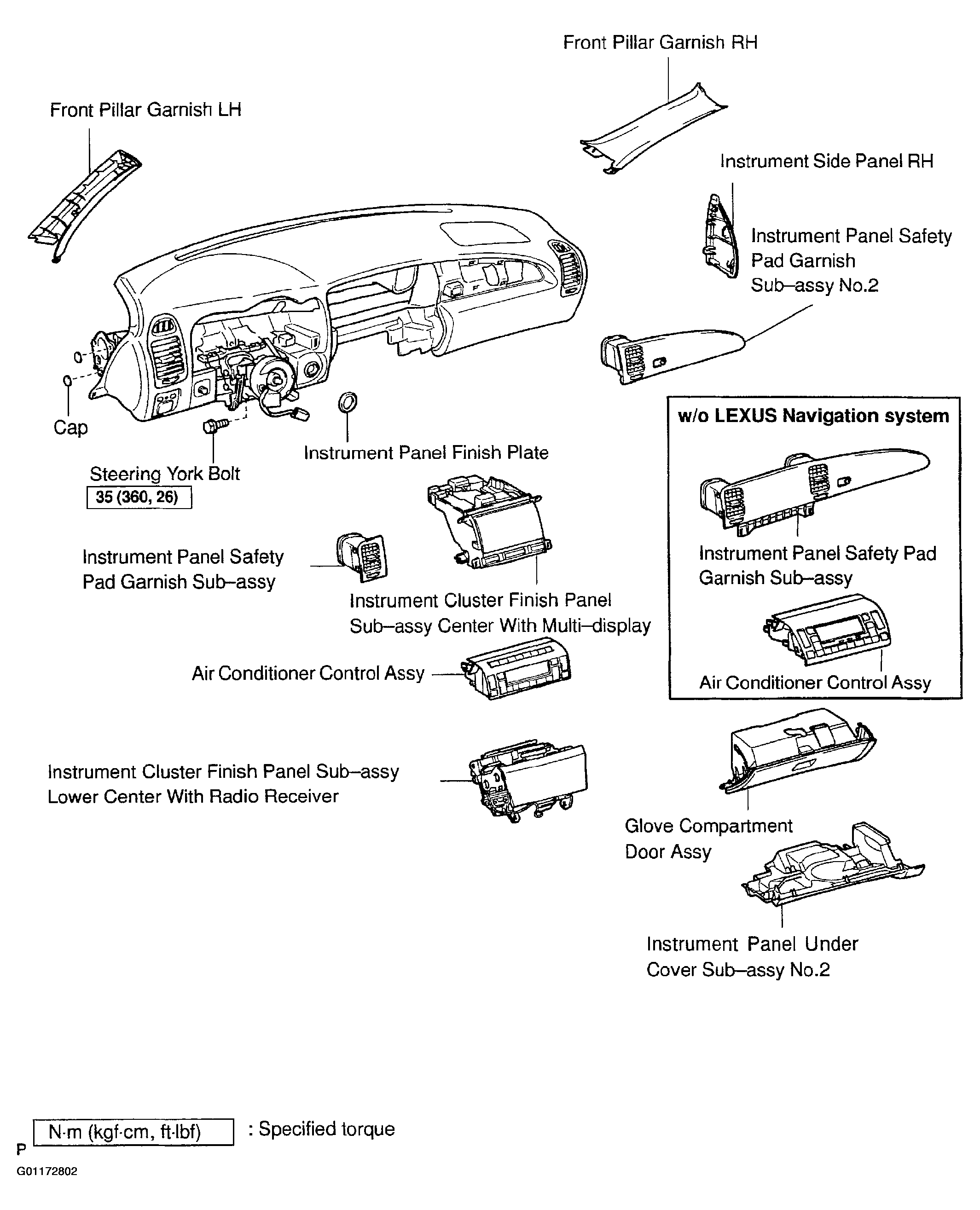

Fig 1: Identifying Blower Assembly Components (1 Of 3)
G01172802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

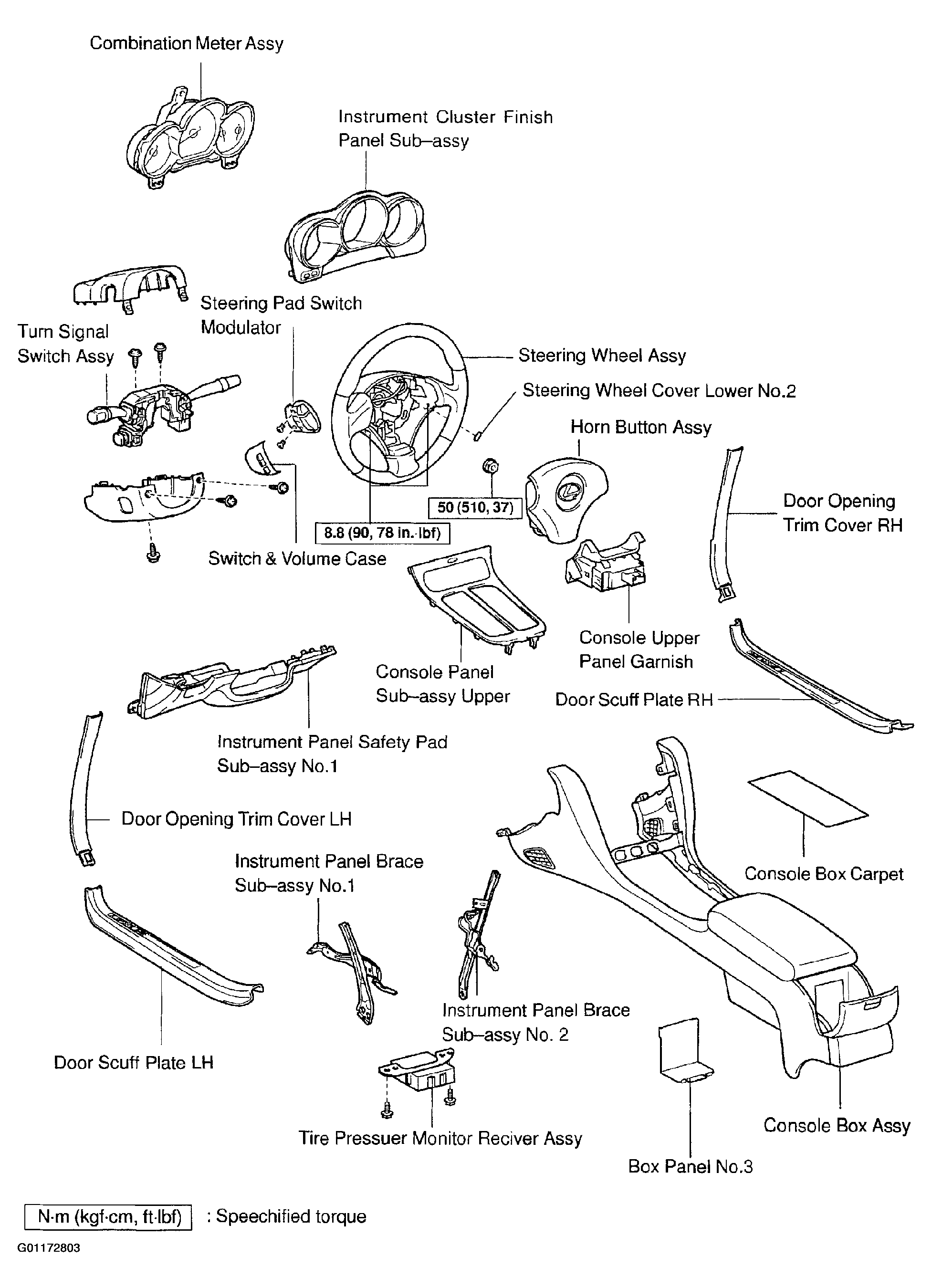

Fig 2: Identifying Blower Assembly Components (2 Of 3)
G01172803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

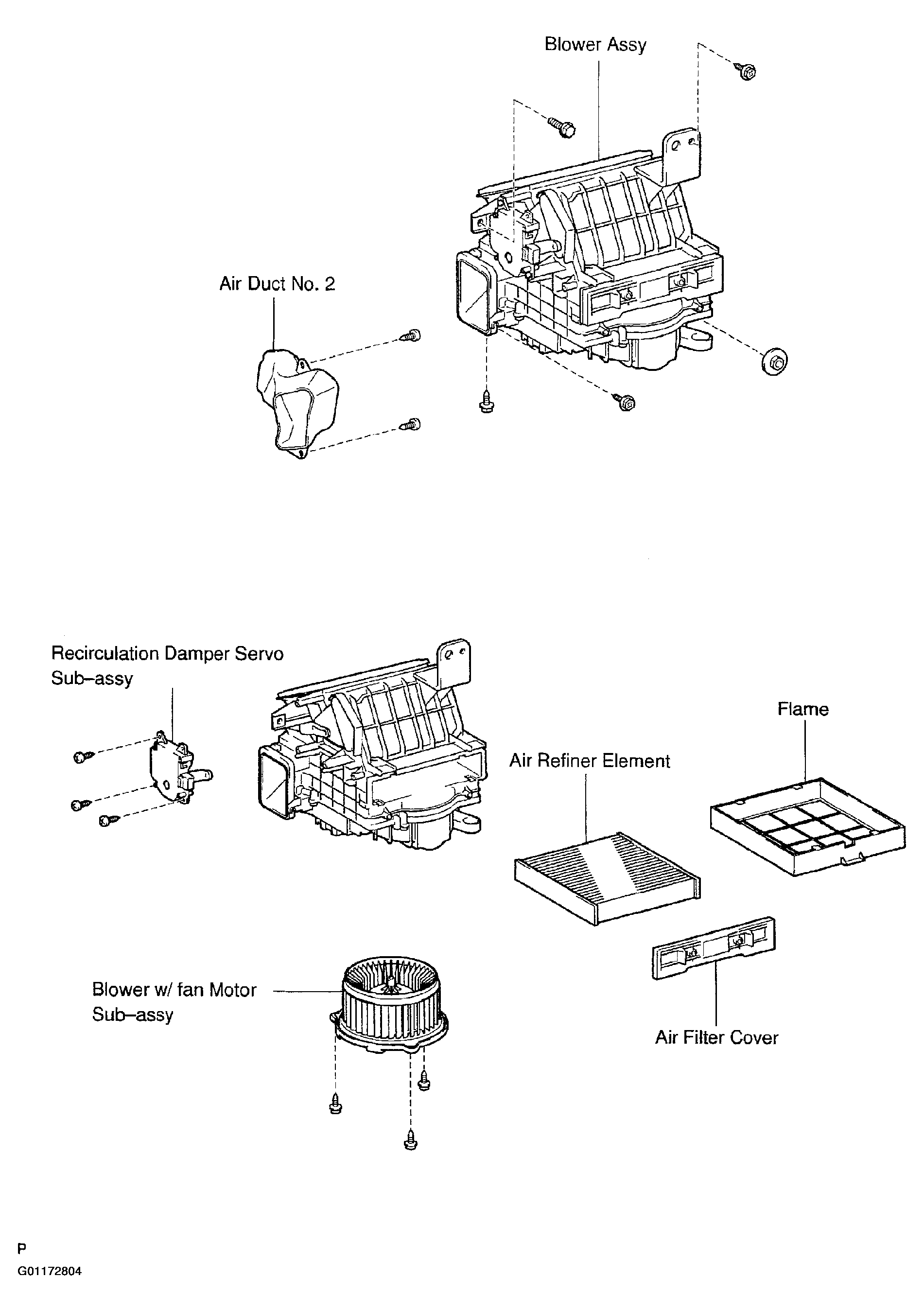

Fig 3: Identifying Blower Assembly Components (3 Of 3)
G01172804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
