Adjust FOGLIGHT Aim

WARNING: This page is about a different car, the 2003 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

A-bolt: Vertical direction

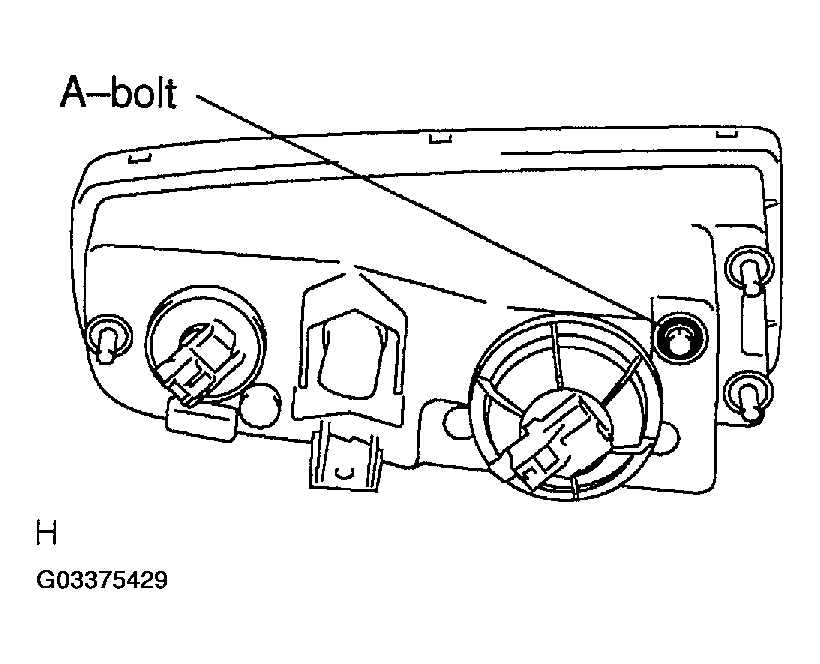

Fig 1: Identifying Vertical Direction Bolt
G03375429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
