Tire Pressure Monitor Valve: Disposal

NOTE: The tire pressure monitor valve sub-assy is powered by a lithium battery. When replacing and disposing the tire pressure monitor valve sub-assy, remove the battery and dispose of it properly.

DISPOSE TIRE PRESSURE MONITOR VALVE SUB-ASSY
1. Insert the tip of a screwdriver into the clearance and pry off the cover. Remove the back cover.

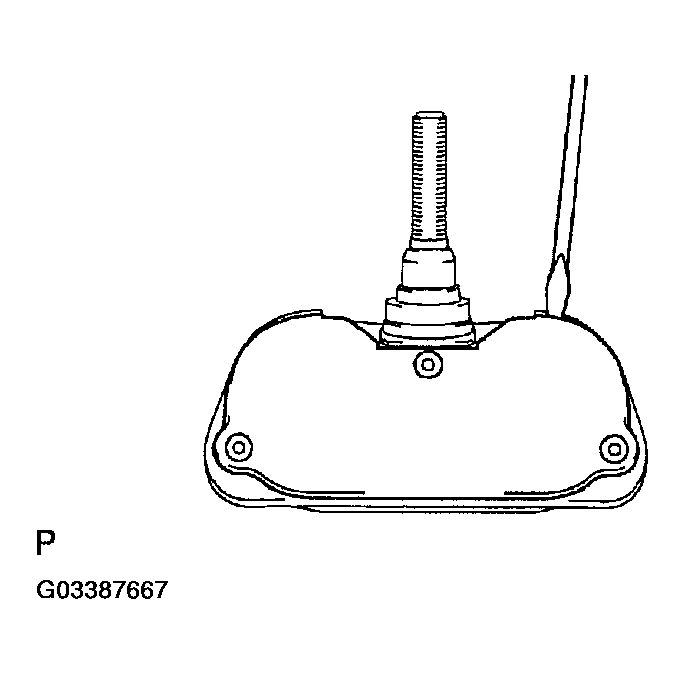

  Fig 1: Removing Back Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. The battery and base board covered with silicone resin are exposed. While taking out the battery, cut off the 2 terminals which connects the battery and base board.

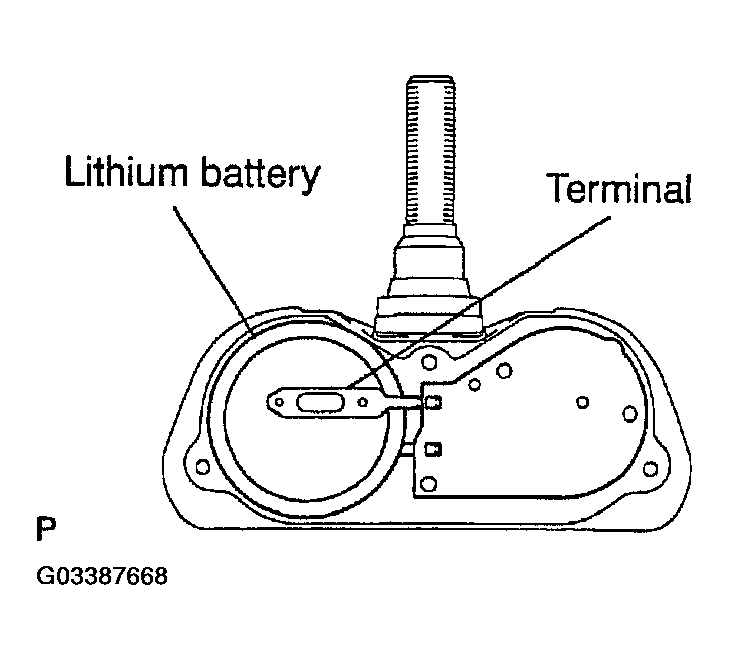

  Fig 2: Identifying Lithium Battery & Terminal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
