Terminals Of Ecu

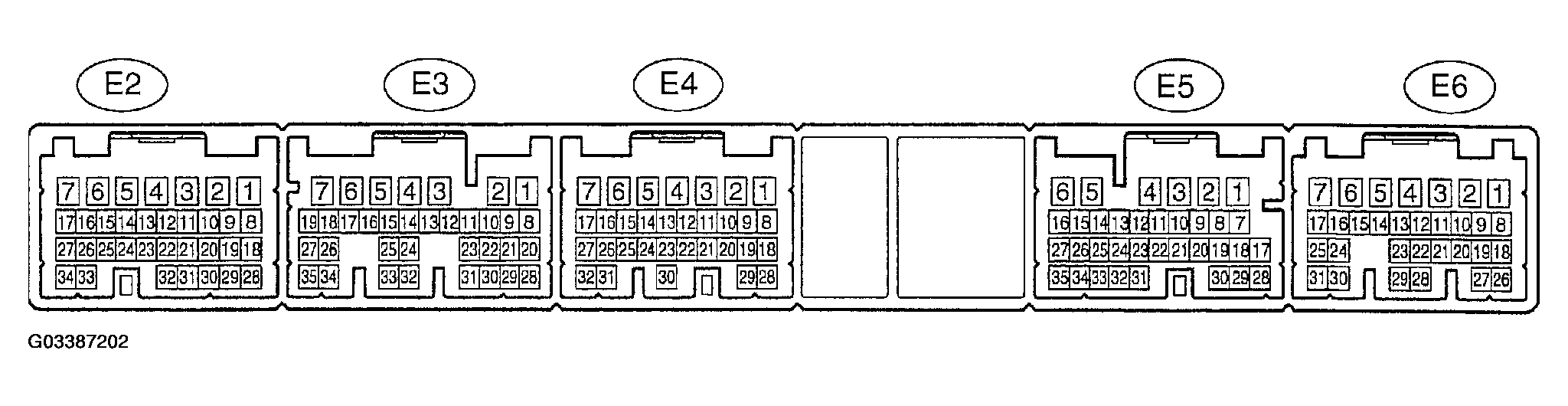

ECM:
STD VOLTAGE
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| E5-4 <=> E3-7 (STP <=> E1) | G-R <=> BR | Brake pedal released (Stop light switch OFF) | Below 1 V |
| Brake pedal pushed (Stop light switch ON) | 7.5 - 14 V | ||
| E5-31 <=> E3-7 (CCS <=> E1) | R <=> BR | Ignition switch ON CANCEL switch ON SET/ COAST switch ON RES/ ACC switch ON | 10-16 V 6.9 - 9.8 V 4.7 - 6.9 V 2.4 - 3.8 V |
| E6-8 <=> E3-7 (ST1- <=> E1) | Y-G <=> BR | Brake pedal pushed (Stop light switch ON) | Below 1 V |
| Brake pedal released (Stop light switch OFF) | 7.5 - 14V | ||
| E3-7 <=> Body ground (E1 <=> Body ground) | BR <=> Body ground | Constant | Below 1 V |
| E3-22 0 E3-23 (SP2- <=> SP2+) | R <=> G | Vehicle is driving | *1 Pulse generation |

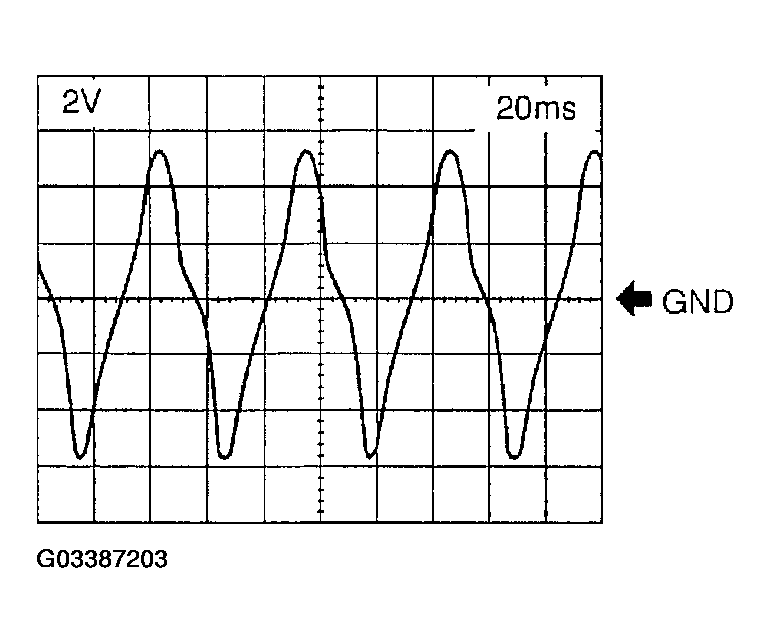

*1 Oscilloscope wave
- Terminal: SP2- <=> SP2+
- Gauge set: 2V/ DIV, 20ms/ DIV
- Condition: Vehicle speed is approx. 20 km/h (12.43mph)

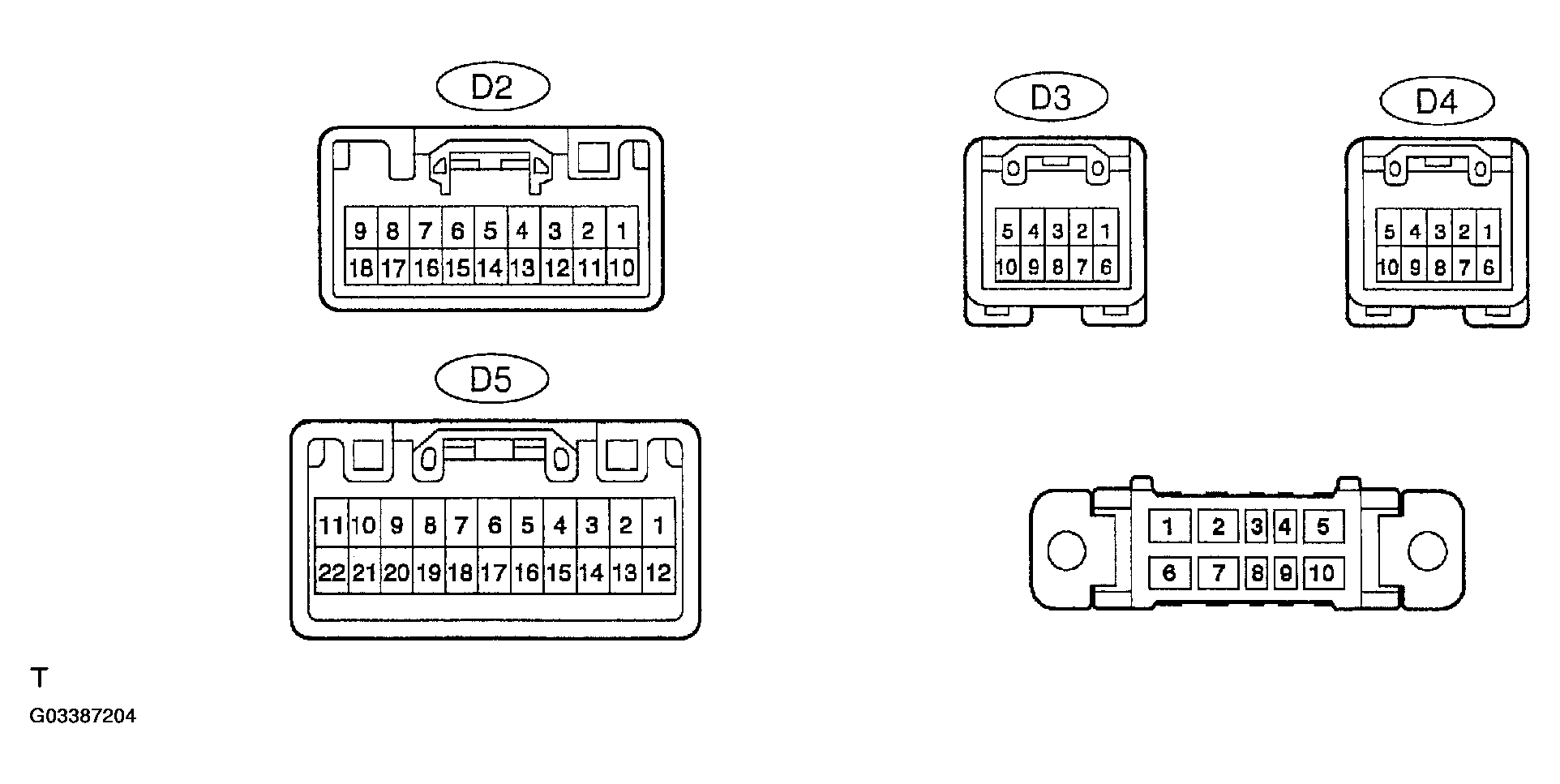

Driver Side J/B ECU:
STD VOLTAGE
| Terminals No. (Symbols) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| 3 <=> 6 (IG <=> GND) | - | Ignition switch ON | 10 - 14 V |
| 4 <=> 6 (ACC <=> GND) | - | Ignition switch ACC | 10 - 14 V |
| 6 <=> Body ground (GND <=> Body ground) | - | Constant | Below 1 V |
| D2-12 <=> 6 (STOP <=> GND) | G-R <=> - | Brake pedal released (Stop light switch OFF) | Below 1 V |
| Brake pedal pushed (Stop light switch ON) | 7.5 - 14 V | ||
| D2-13 <=> 6 (STPI <=> GND) | G-W <=> - | Brake pedal pushed (Stop light switch ON) | Below 1 V |
| Brake pedal released (Stop light switch OFF) | 7.5 - 14 V |
If the value is not within the standard range, some defect on the vehicle side is plausible.
