Section 23 (Thermostat): Removal

WARNING: This page is about a different car, the 2000 Lexus SC 400, 1999 Lexus SC 400, 1998 Lexus SC 400, and 1997 Lexus SC 400. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal of the thermostat would have an adverse effect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat.
  1. DRAIN ENGINE COOLANT.
  2. REMOVE AIR CLEANER INLET.
  3. DISCONNECT WATER INLET FROM WATER INLET HOUSING.  Remove the 3 nuts, and disconnect the water inlet from the water inlet housing.
  4. REMOVE THERMOSTAT.
    1. Remove the thermostat.
    2. Remove the gasket from the thermostat.

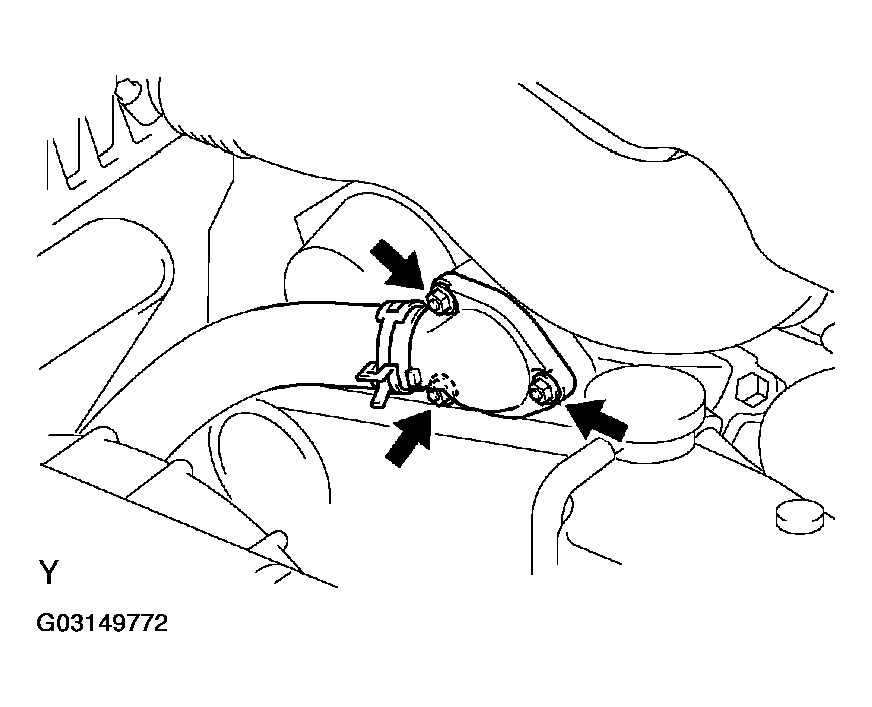

      3. Fig 1: Disconnecting Water Inlet
      G03149772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
