Piston Rings
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2000 Lexus SC 400, 2000 Lexus LS 400, 2000 Lexus GS 400, 1999 Lexus SC 400, and 1999 Lexus LS 400. However, it is still accessible from the selected car via links, so may be relevant.

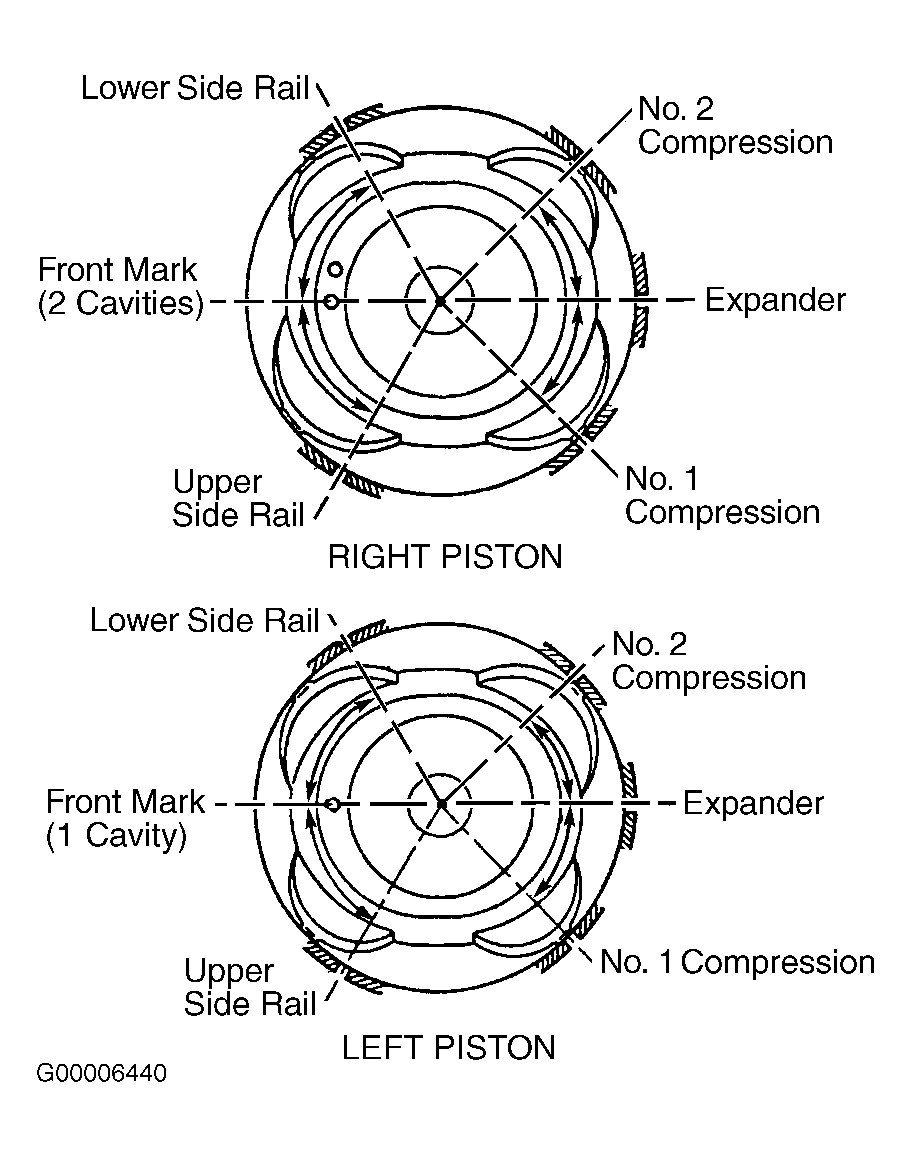

Ensure piston ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position piston ring gaps in proper areas, with identification mark on piston ring toward top of piston. See Fig 1.
NOTE:
Top ring is marked with "T" or 1R identification mark. Second ring is marked with 2T or 2R identification mark.
