Driver Side Junction Block

Driver side junction block (J/B) is located on left side of instrument panel. See Fig 1.

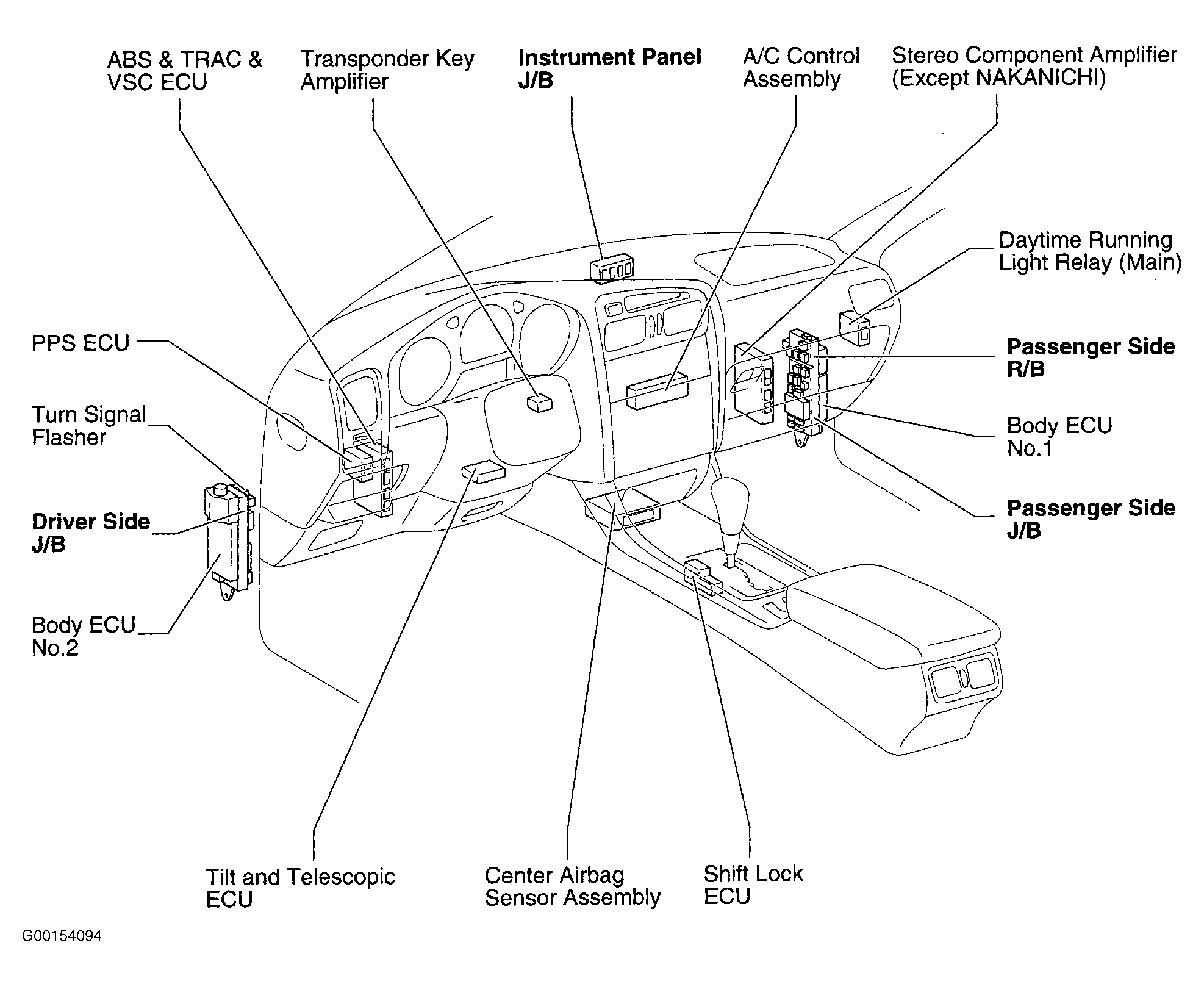

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

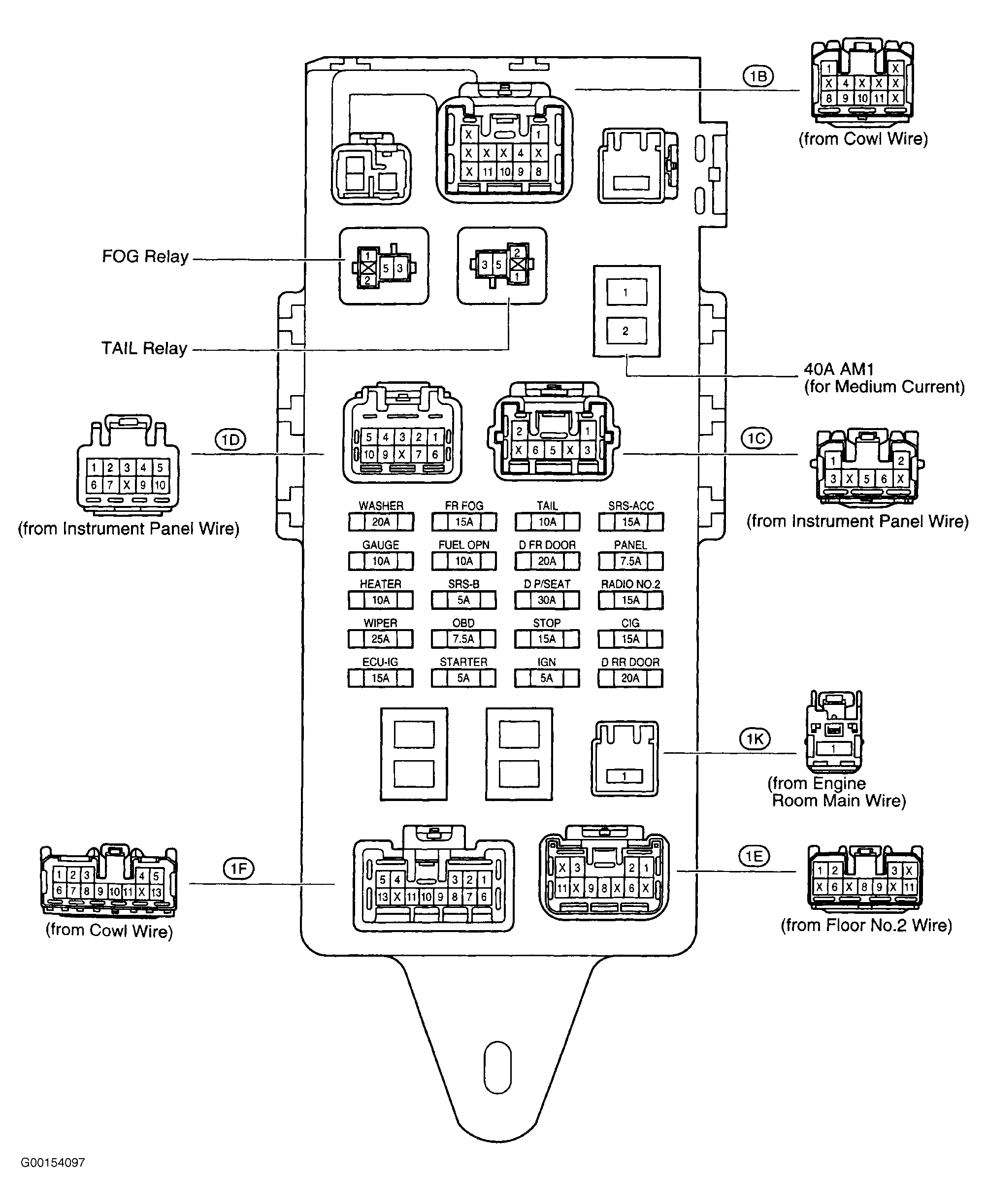

Fig 2: Identifying Driver Side Junction Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

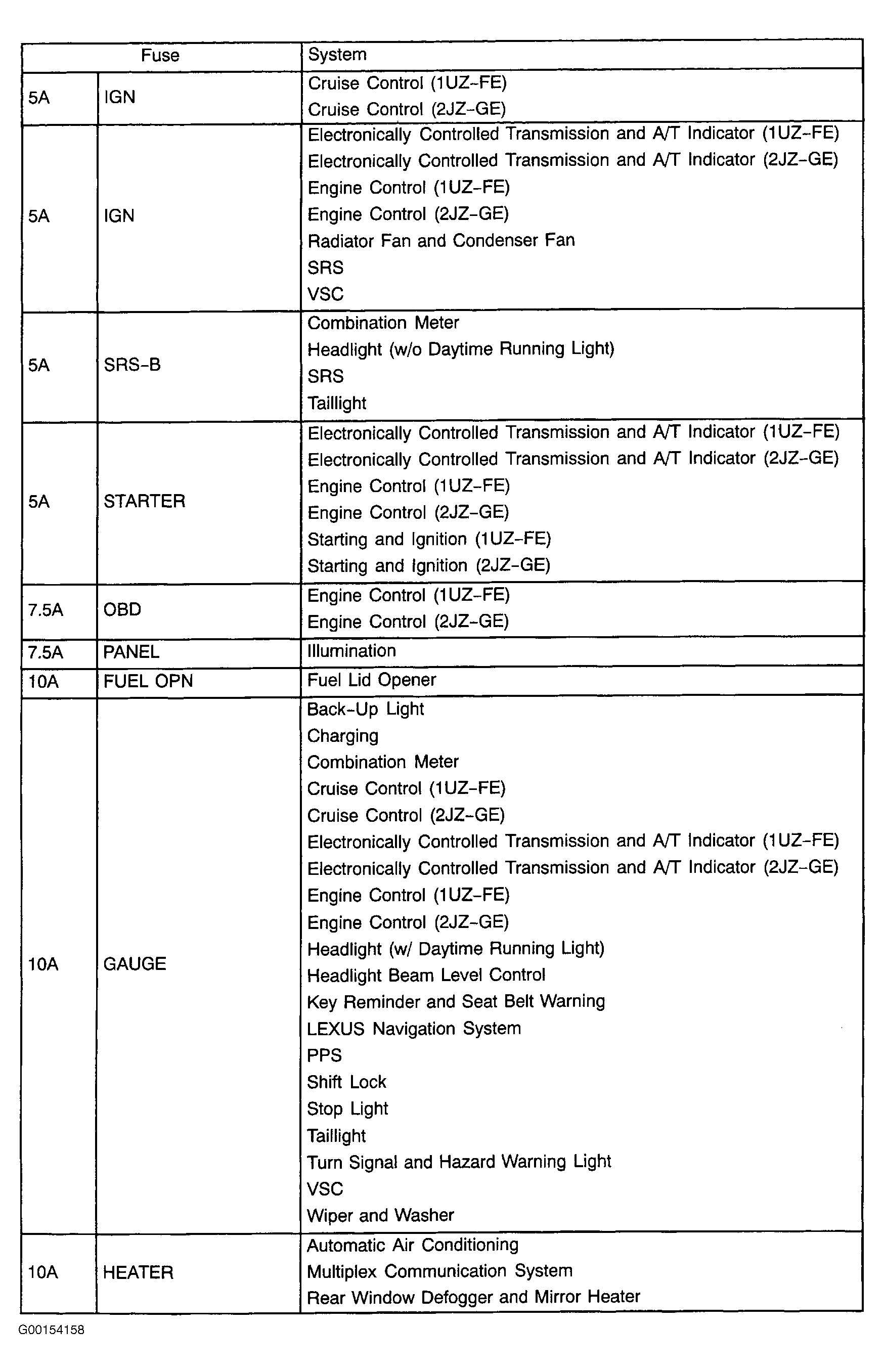

Fig 3: Driver Side Junction Block Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

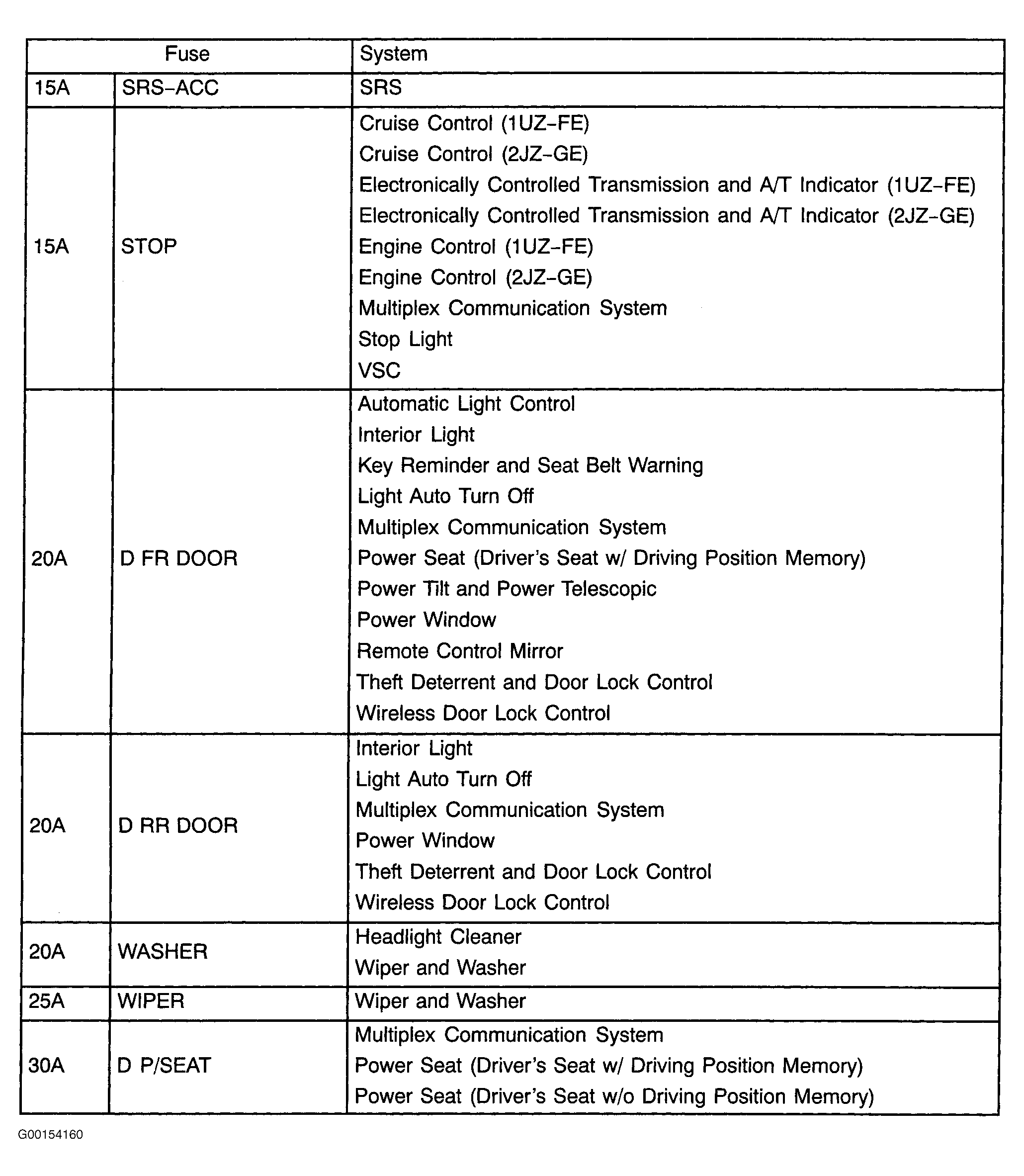

Fig 4: Driver Side Junction Block Legend (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

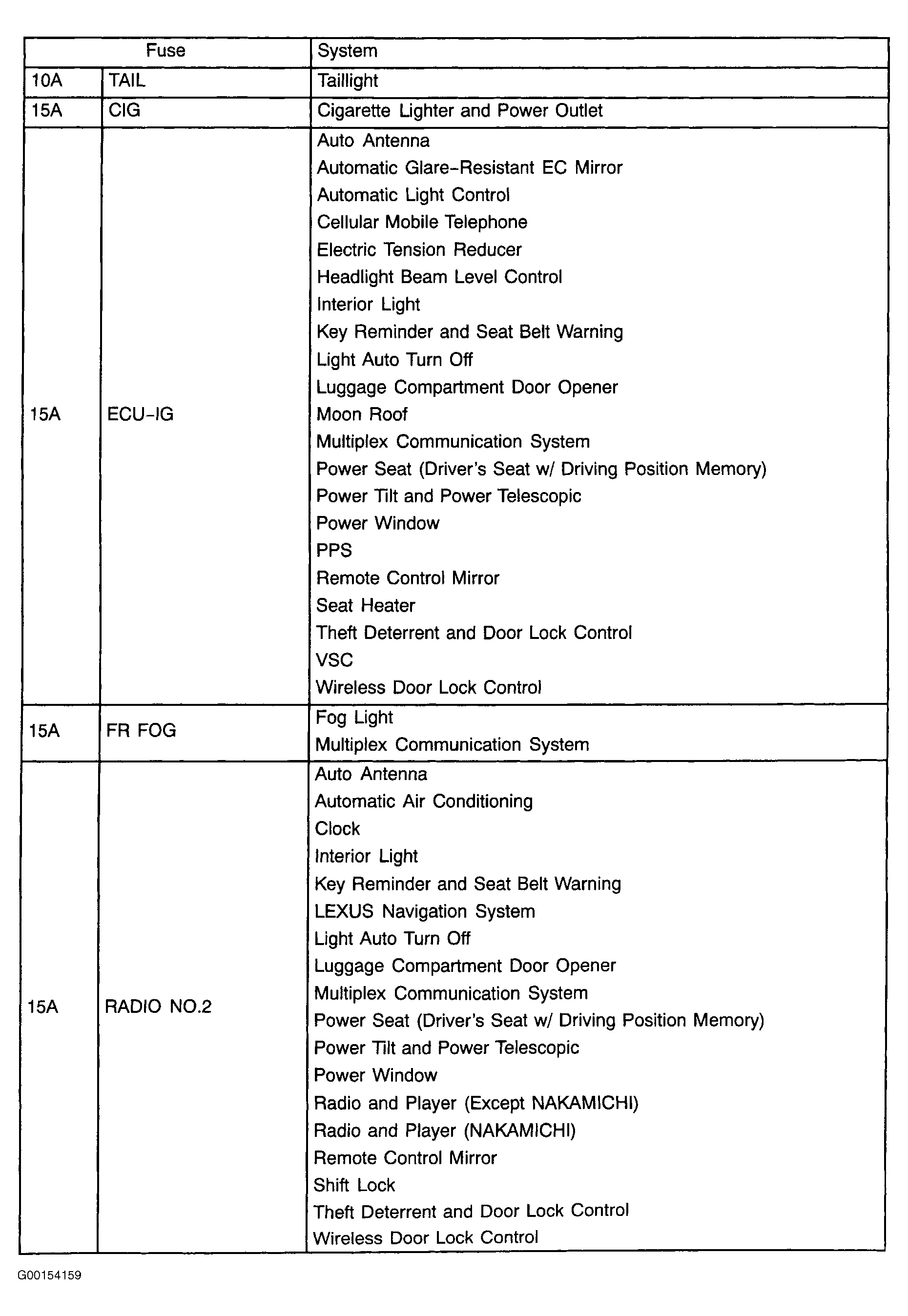

Fig 5: Driver Side Junction Block Legend (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
