Lateral Control Rod: Removal

  1. Remove the bolt and disconnect the lateral control rod from axle housing. See Fig 1.
  2. Remove the nut, bolt and lateral control rod. See Fig 2.

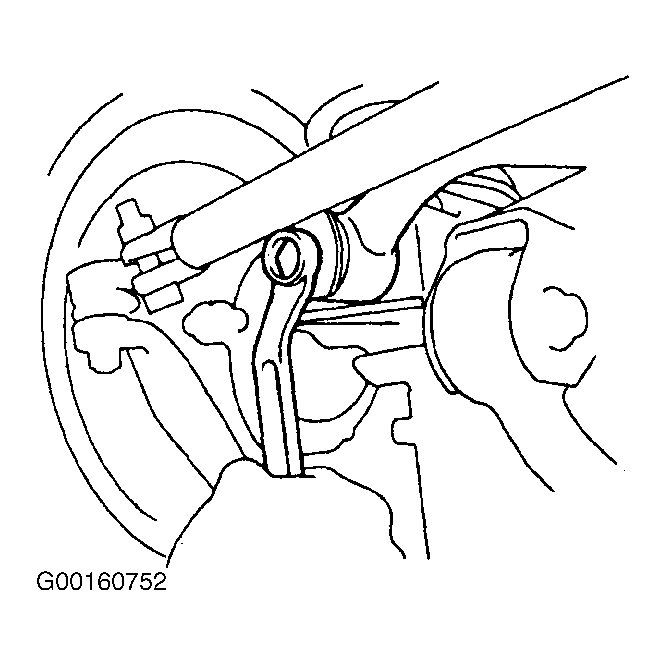

Fig 1: Removing Lateral Control Rod From Axle Housing
G00160752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

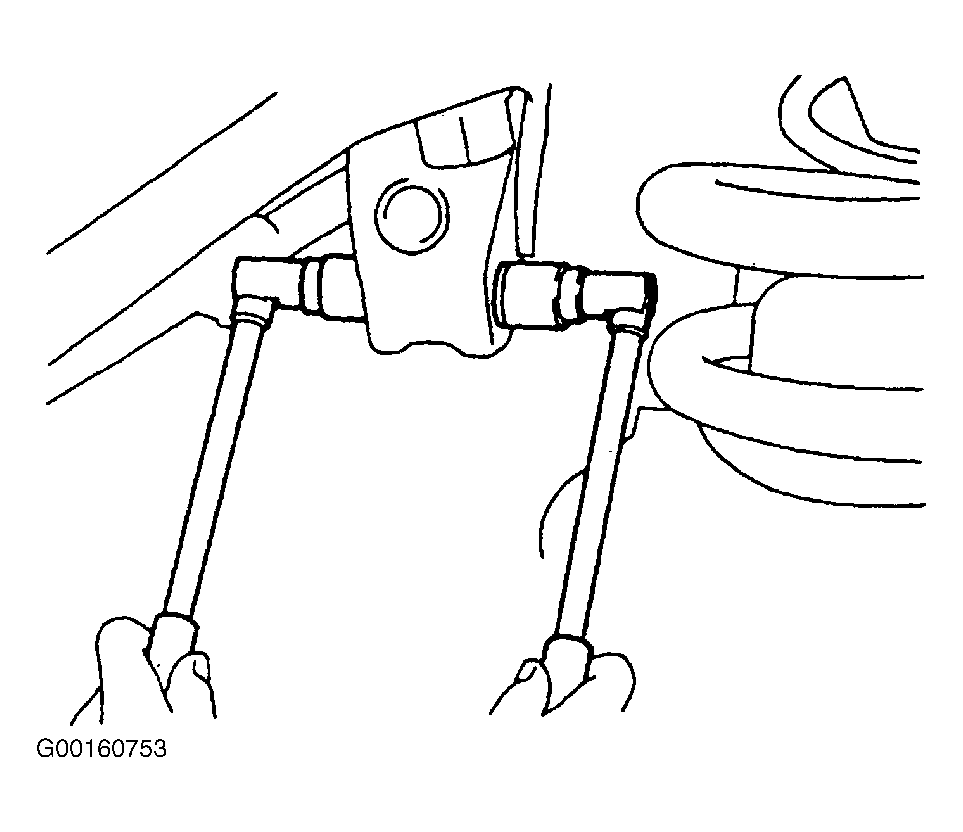

Fig 2: Removing Lateral Control Rod From Frame
G00160753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
