| A/C Compressor Bolt |
18 (24) |
| A/C Compressor Bracket Bolt |
27 (37) |
| Air Intake Chamber Bolt/Nut |
15 (20) |
| Air Intake Chamber Support Brace Bolt |
26 (35) |

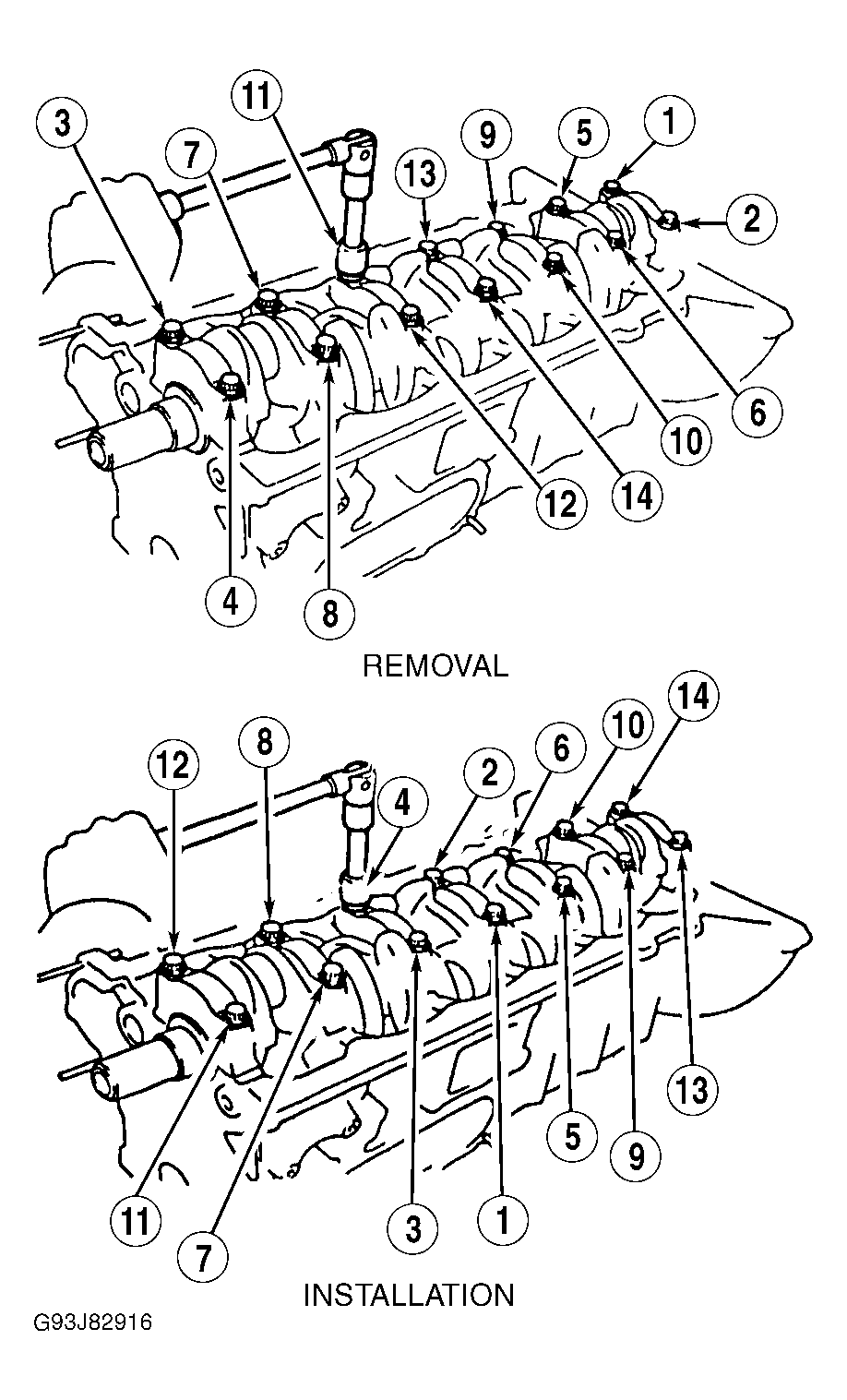

| Camshaft Bearing Cap Bolt |
12 (16) |
| Camshaft Sprocket Bolt |
54 (73) |
| Connecting Rod Nut |
| Step 1 |
35 (47) |
| Step 2 |
Additional 90 Degrees |
| Coolant By-Pass Outlet Bolt |
15 (20) |
| Coolant By-Pass Pipe Bolt |
15 (20) |
| Coolant Outlet Nut |
15 (20) |
| Crankshaft Pulley Bolt |
304 (412) |

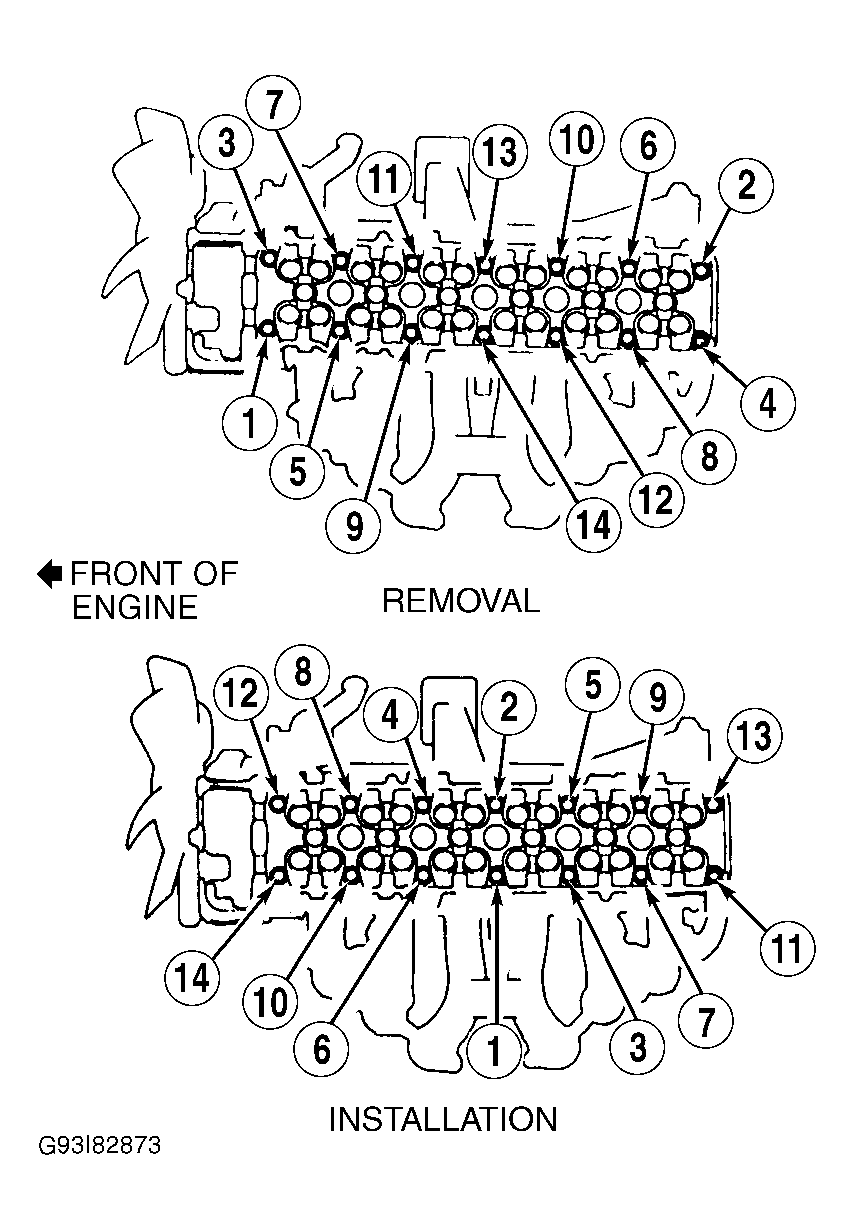

| Cylinder Head-To-Cylinder Block Bolt |
| Step 1 |
29 (39) |
| Step 2 |
Additional 90 Degrees |
| Step 3 |
Additional 90 Degrees |
| Cylinder Head-To-Timing Chain Cover Bolt |
15 (20) |
| Damper Bolt |
15 (20) |
| Delivery Pipe Bolt |
15 (20) |
| Distributor Hold-Down Bolt |
13 (18) |
| Drive Belt Idler Pulley Bolt |
32 (43) |
| Drive Plate Bolt |
74 (100) |
| Drive Shaft Flange Bolt/Nut |
| Front Drive Shaft |
54 (73) |
| Rear Drive Shaft |
65 (88) |
| EGR Pipe Union Nut |
58 (79) |
| EGR Pipe-To-Cylinder Head Bolt |
15 (20) |
| Engine Hanger-To-Cylinder Head Bolt |
30 (41) |
| Engine Mount-To-Frame Nut |
55 (75) |
| Exhaust Pipe-To-Exhaust Manifold Nut |
46 (62) |
| Exhaust Pipe-To-Rear Catalytic Converter Bolt/Nut |
34 (46) |
| Fuel Filter-To-Intake Manifold Bolt |
15 (20) |
| Fuel Inlet Hose-To-Fuel Filter Union Bolt |
21 (29) |
| Fuel Return Pipe Bolt |
15 (20) |
| Generator Mounting Bracket-To-Cylinder Head Bolt |
32 (43) |
| Heat Coolant Pipe Bolt/Nut |
15 (20) |
| Heat Insulator Bolt |
14 (19) |
| Intake Manifold-To-Cylinder Head Bolt/Nut |
15 (20) |
| Knock Sensor |
33 (45) |
| Main Bearing Cap Bolt |
| Step 1 |
54 (73) |
| Step 2 |
Additional 90 Degrees |
| No. 1 Fuel Pipe Bolt |
| Union Bolt |
21 (29) |
| Retaining Bolt |
15 (20) |
| No. 1 Oil Pan Bolt/Nut |
| 12-mm Head |
15 (20) |
| 14-mm Head |
32 (43) |
| No. 1 Oil Pan-To-Transmission Housing Bolt |
53 (72) |
| No. 1 & 2 Exhaust Manifold Nut |
29 (39) |
| Oil Cooler Cover-To-Cylinder Block Bolt/Nut |
15 (20) |
| Oil Cooler Line-To-Transmission Union Nut |
25 (34) |
| Oil Cooler Relief Valve Plug |
27 (37) |
| Oil Cooler-To-Oil Cooler Cover Nut |
12 (16) |
| Oil Filter Union |
33 (45) |
| Oil Jet Bolt |
15 (20) |
| Oil Pump Pick-Up Tube-To-No. 1 Oil Pan Bolt/Nut |
15 (20) |
| Oil Pump Relief Valve Plug |
36 (49) |
| Oil Spray Nozzle-To-Cylinder Block Bolt |
18 (24) |
| Power Steering Pump-To-Cylinder Block Bolt |
27 (37) |
| Power Steering Reservoir Bolt |
15 (20) |
| Pressure Hose-To-Power Steering Pump Union Bolt |
42 (57) |
| Rear Oil Seal Housing Bolt |
15 (20) |
| Slipper Bolt |
51 (69) |
| Spark Plug |
15 (20) |
| Stabilizer Bar Mount-To-Frame Bolt |
13 (18) |
| Stabilizer Bar-To-Axle Housing Bolt |
18 (24) |
| Throttle Body Bolt |
15 (20) |
| Timing Chain Cover Bolt |
15 (20) |
| Timing Chain Tensioner Nut |
15 (20) |
| Torque Converter-To-Drive Plate Bolt |
41 (56) |
| Transfer Case Shift Lever Bolt |
13 (18) |
| Transmission Crossmember-To-Frame Bolt |
45 (61) |
| Transmission Mount-To-Transmission Crossmember Nut |
55 (75) |
| Transmission-To-Cylinder Block Bolt |
53 (72) |
| Water Pump Bolt/Nut |
15 (20) |
| INCH Lbs. (N.m) |
| No. 2 Oil Pan Bolt/Nut |
| Bolt |
69 (7.8) |
| Nut |
78 (8.8) |
| Oil Level Sensor Bolt |
48 (5.4) |
| Oil Pan Baffle Plate-To-No. 1 Oil Pan Bolt/Nut |
80 (9.0) |
| Transmission Shift Lever Assembly Bolt |
48 (5.4) |
| Transmission Shift Linkage-To-Control Rod Nut |
115 (13.0) |
