Light Control Switch Test

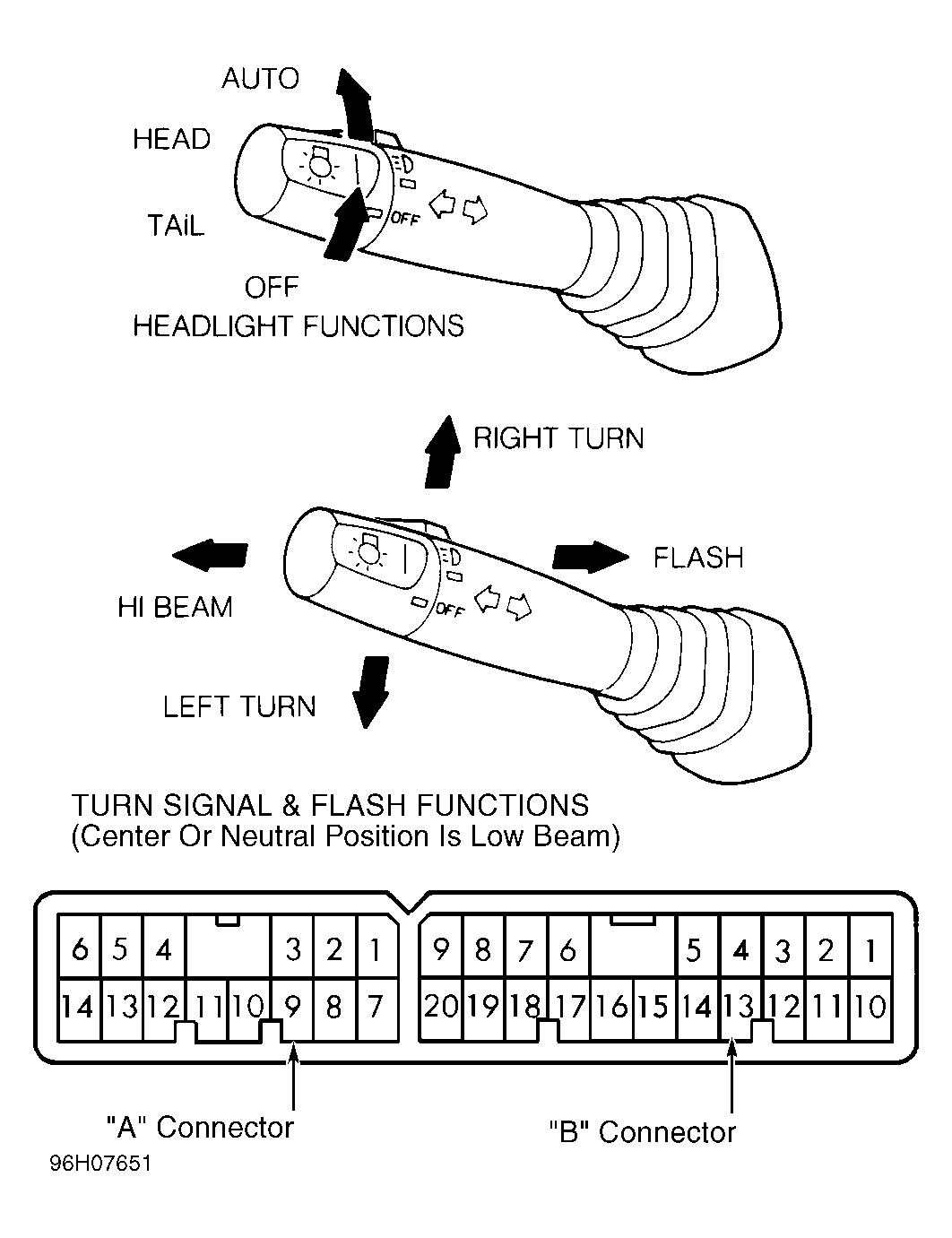

Remove steering column covers. Disconnect electrical connectors from combination switch. Check for continuity between specified terminals of combination switch connector. See Fig 1. See appropriate LIGHT CONTROL SWITCH CONTINUITY TEST TABLE . If there is no continuity, replace switch.
LIGHT CONTROL SWITCH CONTINUITY TEST
| Switch Position | Terminals | |||
|---|---|---|---|---|
| Headlight/Taillight Switch | ||||
| Off | (1) | |||
| Tail | A2 & A11 | |||
| Head | A2, A11 & A13 | |||
| Foglight Switch | ||||
| Off | (1) | |||
| On | A6 & A7 | |||
| Dimmer Switch | ||||
| Flash-To-Pass | A9, A12 & A14 | |||
| Low Beam | A3 & A9 | |||
| High Beam | A9 & A12 | |||
| Turn Signal Switch | ||||
| Left | A1 & A5 | |||
| Neutral | (1) | |||
| Right | A1 & A8 | |||
|
||||
