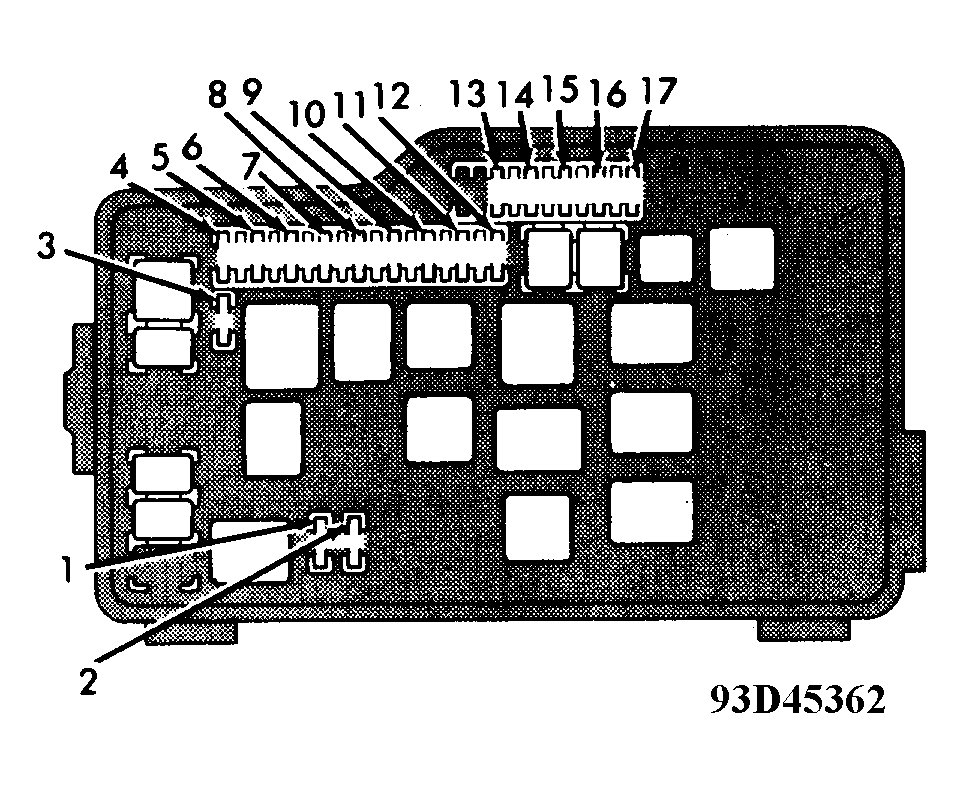

Engine Compartment Fuse Panel Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- 1 - 15 Amp Foglights
- 2 - 7.5 Amp Daytime Running Lights (Canada)
- 3 - 10 Amp Traction Control System
- 4 - 10 Amp Interior/Vanity Lights, Sun Roof, Cruise Control, Open Door Warning, Personal/Trunk/Door/Footwell Lights, Ignition Lights, Clock, ABS System, Power Antenna
- 5 - 7.5 Amp Wireless Remote Locking System, ABS System, Traction Control, Cruise Control, Daytime Lights
- 6 - 7.5 Amp Charging System
- 7 - 15 Amp Fuel Injection System, SRS System, Charge Light, Starting System, Electronic Ignition, Distributor Ignition, Gauges & Meters, Service Reminder Indicators, Warning Buzzers
- 8 - 15 Amp Telephone
- 9 - 20 Amp Emergency Flashers, Horn
- 10 - 20 Amp Electronic Transmission, Fuel Injection system
- 11 - 25 Amp Radio, Power Antenna, Cassette Tape/Compact Disc Player
- 12 - 30 Amp Electronic Ignition, Distributor Ignition
- 13 - 15 Amp Right Headlight (Low Beam)
- 14 - 15 Amp Left Headlight (Low Beam)
- 15 - 10 Amp Right Headlight (Low Beam Canada)
- 16 - 10 Amp Left Headlight (Low Beam Canada)
- 17 - 30 Amp Electronic Cooling Fan
